Appendix
IP-9500e
75

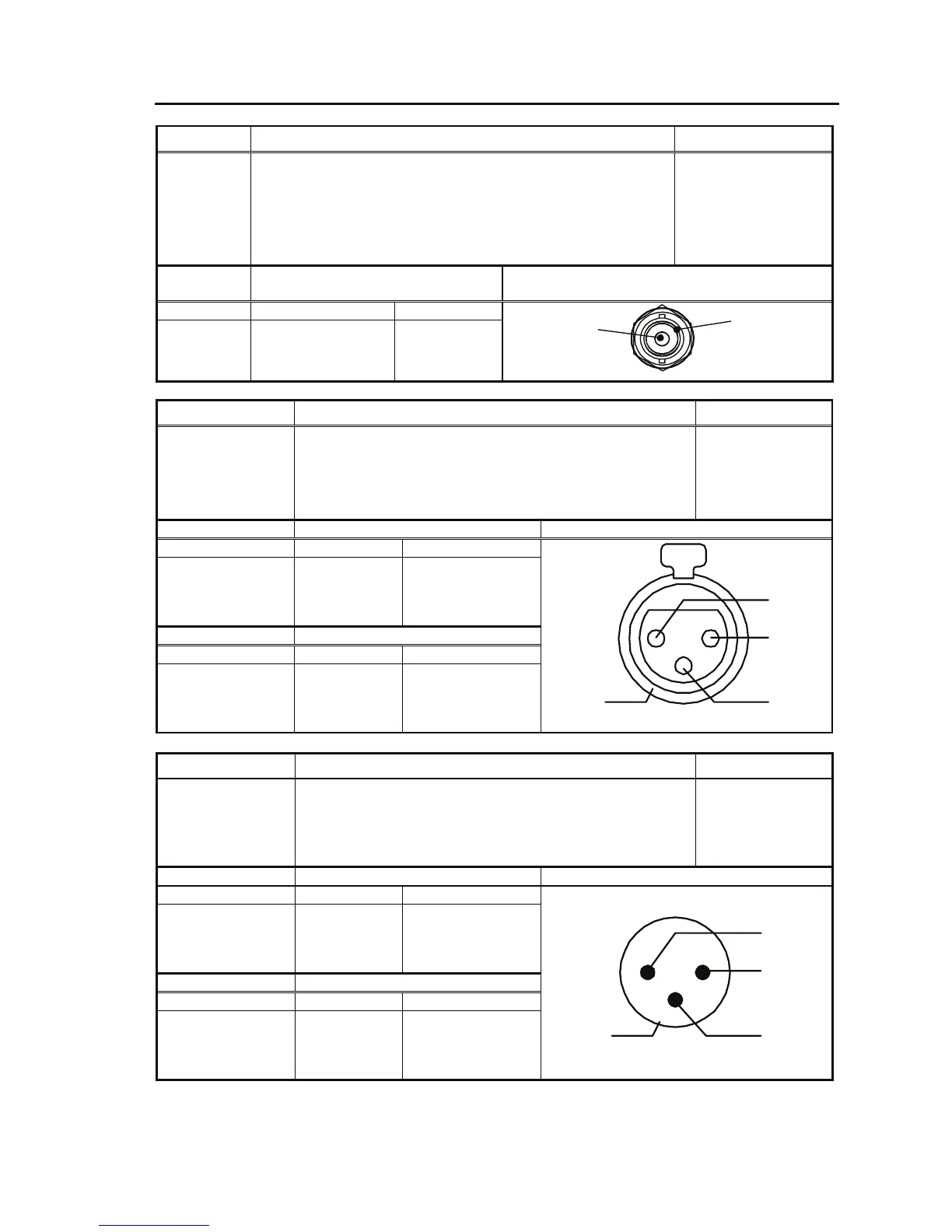

Name Specifications Remarks
Reference
clock input
(GENLOCK)
Signal format: NTSC w/o SETUP (Analog composite, 29.97frames/s)
NTSC w/ SETUP (Analog composite, 29.97frames/s)
PAL (Analog composite, 25frames/s)
HD Tri-SYNC (29.97/25frames/s)
Input impedance: 75Ω (Unbalanced)
Signal amplitude: 1.0 Vp-p
NTSC/PAL Black burst
or
Y/Pb/Pr Three values
sync (Black)
Connector
name
GENLOCK BNC
Pin number Signal name Remarks
1
2
SIGNAL
SG
2
1
Name Specifications Remarks
Analog AUDIO
input
Signal format: Analog audio
Output impedance: 600Ω (Balanced)
Signal amplitude: Max. 12Vp-p
Maximum amplitude level: +20dBm, 0dBm
[Selectable]
Connector name ANALOG AUDIO IN (L) XLR female
Pin number Signal name Remarks
1
2
3
4
SG
COLD
HOT
FG
MONO: L ch
Connector name ANANLOG AUDIO IN (R)
Pin number Signal name Remarks
1
2
3
4
SG
COLD
HOT
FG
①
③
④
PUSH
②
Name Specifications Remarks
Analog AUDIO
output
Signal format: Analog audio
Output impedance: 600Ω (Balanced)
Signal amplitude: Max. 12Vp-p
Maximum amplitude level: +20dBm, 0dBm
[Selectable]
Connector name ANALOG AUDIO OUT (L) XLR male
Pin number Signal name Remarks
1
2
3
4
SG
COLD
HOT
FG
MONO: L ch
Connector name ANALOG AUDIO OUT (R)
Pin number Signal name Remarks
1
2
3
4
G
COLD
HOT
FG
①
②
③
④
