Appendix
IP-9500e
76

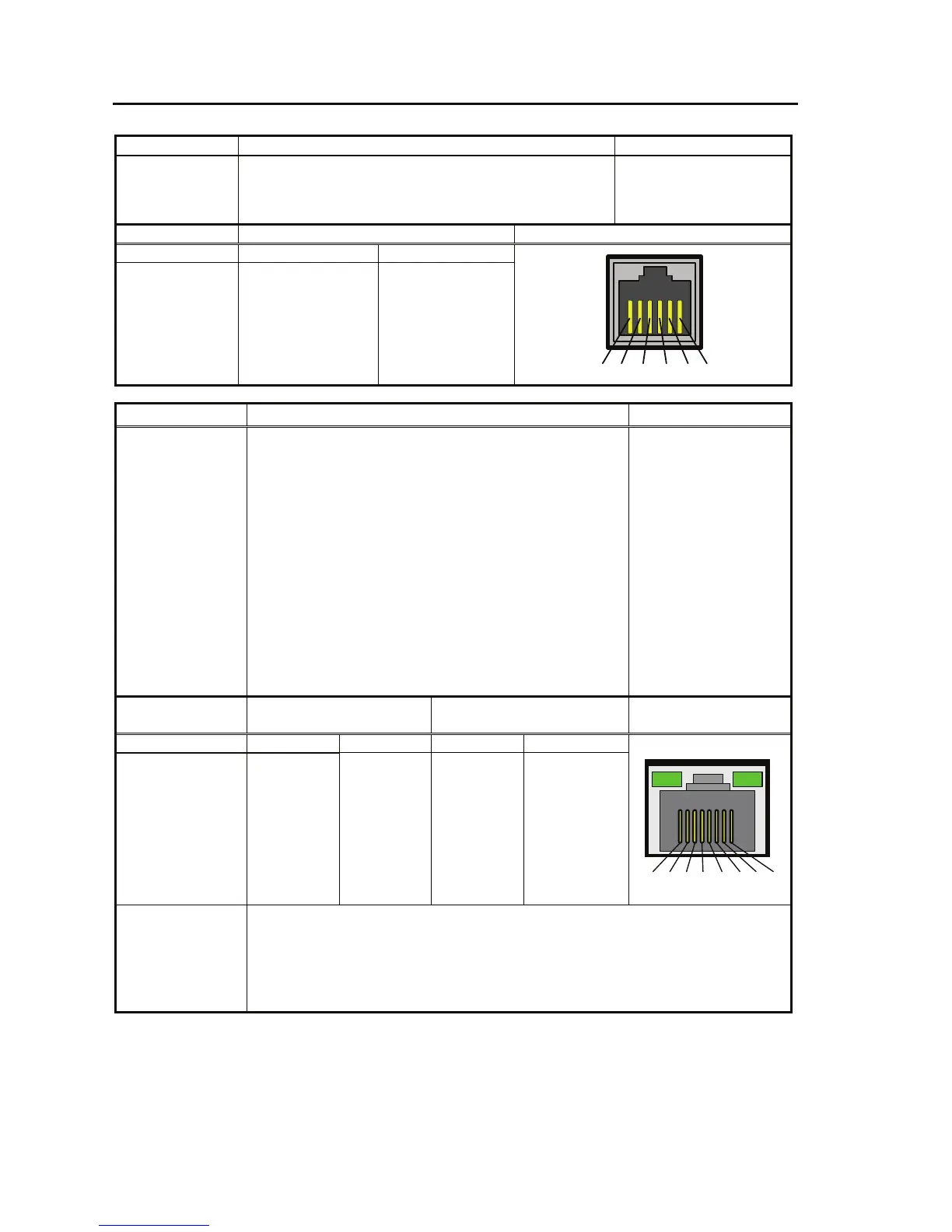

Name Specifications Remarks
Analog AUDIO
input /output
(VOICE)
Signal format: Analog audio
Input / output impedance: 600Ω (Balanced)
Maximum amplitude level: 0dBm
Connector name
VOICE RJ25
Pin number Signal name Remarks
1
2
3
4
5
6
IN COLD
IN HOT
SG
SG
OUT COLD
OUT HOT
Name Specifications Remarks
LAN interface
[10BASE-T]
System standard: IEEE802.3
Transmission clock: 10Mbit/s±10000ppm(±0.01%)
Load impedance: 100Ω
Transmission coding: Manchester coding
[100BASE-TX]
System standard: IEEE802.3u
Transmission clock: 125 Mbit/s±5000ppm(±0.005%)
Load impedance: 100Ω
Transmission coding: 4B5B
[1000BASE-T]
System standard: IEEE802.3ab
Transmission clock: 1000 Mbit/s±10000ppm(±0.1%)
Load impedance: 100Ω
Transmission coding: 8B1Q4
Connector name
10/100 BASE
CONSOLE
10/100/1000 BASE
LAN
RJ-45
Pin number Signal name Remarks Signal name Remarks
1
2
3
4
5
6
7
8
TD+
TD-
RD+
N.C.
N.C.
RD-
N.C.
N.C.
Trans. data+
Trans. data-
Reciv. data+
-
-
Reciv. data-
-
-
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
Pair 0+
Pair 0-
Pair 1+
Pair 2+
Pair 2-
Pair 1-
Pair 3+
Pair 3-
Cable
Standard: ANSI/TIA/EIA568A CAT5
Pin assignment: Comply with one of two below
Pin No. 1 2 3 4 5 6 7 8
T568A W/G G W/O Bl W/Bl O W/Br Br
T568B W/O O W/G Bl W/Bl G W/Br Br
[W: white, G: green, O: orange, Bl: blue, Br: brown]
①②③④⑤⑥
8 7 6 5 4 3 2 1
