Appendix
IP-9500e
77

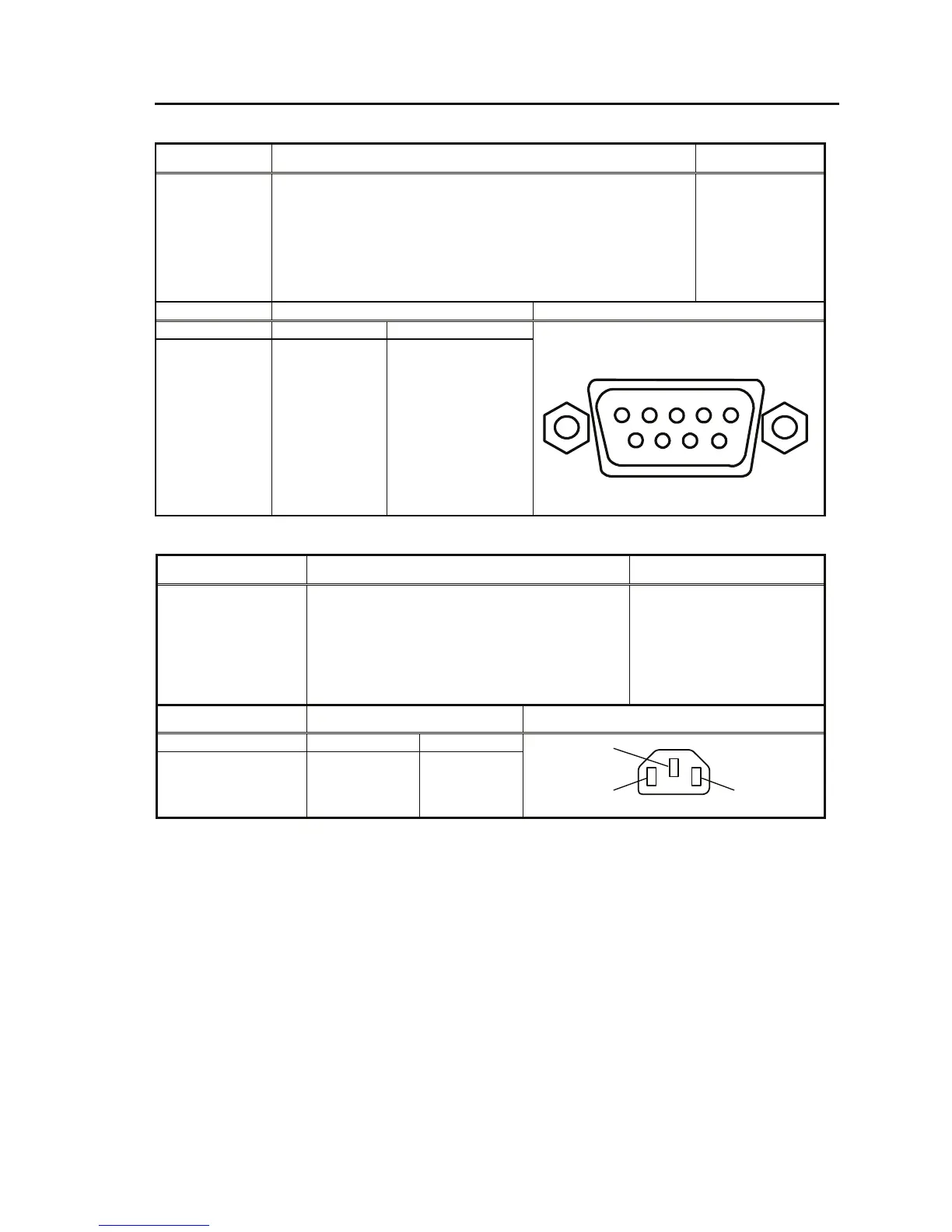

Name Specifications Remarks
Data interface
(232C)
No. of CH
Signal system
Connection
Bit rate
Data length
Parity
Stop bit
: 1 ch
: Asynchronous
: DTE
: 1200, 2400, 4800，9600, 19200 bps
: 8
: NONE
: 1
RS-232C interface
Connector name RS-232C D-sub 9 pin(male)
Pin number Signal name Remarks
1
2
3
4
5
6
7
8
9
CD
RD
SD
DTR (ER)
SG
DSR (DR)
RTR (RS)
CTS (CS)
RI
Carrier Detect
Receive Data
Send Data
Data Terminal Ready
Signal Ground
Data set Ready
Request to Send
Clear to Send
Ring Indicator
Name Specifications Remarks
Parallel 2 pin with ground
POWER
Input voltage
Connector
Button
Input protection
Withstand voltage
: 100-240VAC±10%
: Inlet
: Locker button
: Built-in fuse
: 1,500 VAC
Connector name
Pin number Signal name Remarks
1
2
3
L1
L2
FG
1
2
3
L1 L2
FG
①⑤
⑥
⑨
