Appendix
IP-9500e
78
Name Specifications Remarks
HDMI input
Signal format
Input impedance
Maximum length
connector
：TMDS
：50 ohms ±10%
：--------
：19PIN TypeA
Length of the attested HDMI cable
is pretermission.
The unattested cable can't be used.

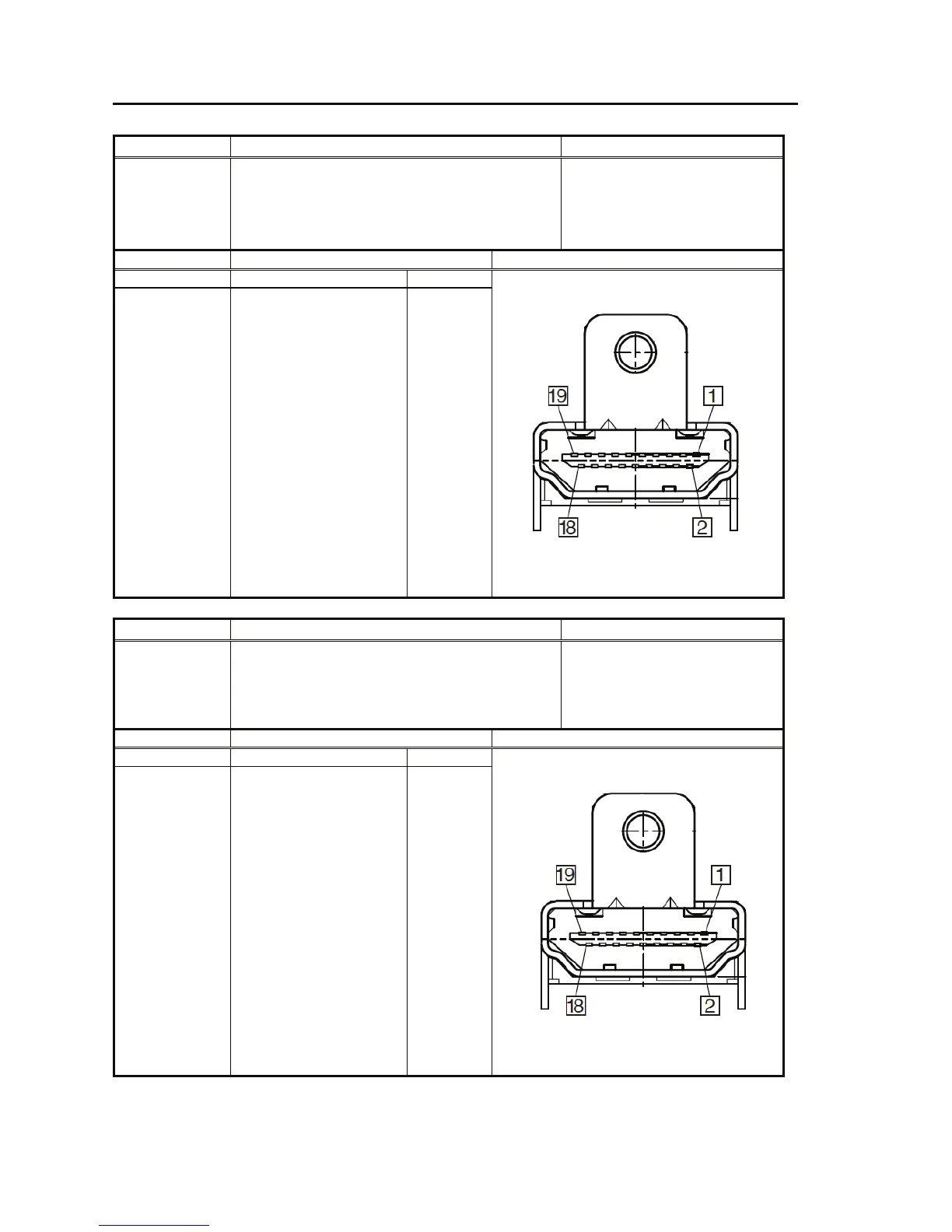

Connector name
HDMI IN HDMI 19 pin Type A
Pin number Signal name Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
TMDS DATA2 +
TMDS DATA2 SHIELD
TMDS DATA2 -
TMDS DATA1 +
TMDS DATA1 SHIELD
TMDS DATA1 -
TMDS DATA0 +
TMDS DATA0 SHIELD
TMDS DATA0 -
TMDS CLOCK +
TMDS CLOCK SHIELD
TMDS CLOCK -
CEC
RESERVE(N.C)
SCL
SDA
DDC/CEC GROUND
+5V POWER
HOT PLUG DETECT
Name Specifications Remarks
HDMI output
Signal format
Input impedance
Maximum length
connector
：TMDS
：50 ohms ±10%
：--------
：19PIN TypeA
Length of the attested HDMI cable
is pretermission.
The unattested cable can't be used.
Connector name
HDMI OUT HDMI 19 pin Type A
Pin number Signal name Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
TMDS DATA2 +
TMDS DATA2 SHIELD
TMDS DATA2 -
TMDS DATA1 +
TMDS DATA1 SHIELD
TMDS DATA1 -
TMDS DATA0 +
TMDS DATA0 SHIELD
TMDS DATA0 -
TMDS CLOCK +
TMDS CLOCK SHIELD
TMDS CLOCK -
CEC
RESERVE(N.C)
SCL
SDA
DDC/CEC GROUND
+5V POWER
HOT PLUG DETECT
