Fujitsu Stylistic Q702 Operating Manual

First-time setup of you r device
Selecting a location
SelectingalocationDeviceM ainsadapter
Select a suitable location for the device before setting it up. Follow
the instructions below when doing so:
• Never place the device or the mains adapter on a heat-sensitive surface.
The surface could be dama ged as a result.
• Never place the device on a soft surface (e.g. carpeting, upholstered furniture,
bed). This can block the air vents and cause overheating and damage.
• The underside of the device he ats up during normal operation. Prolonged contact
with the skin may become unpleasant or even result in burns.
• Place the device on a stable, flat, non-slippery surface. Please note that the
rubber feet of the device may mark certain types of delicate surfaces.
• Keep other objects at least 100 mm away f rom the device and its
mains adapter to ensure adequate ventilation.
• Never cover the ventilation slots o f the device.
• Do not expose the device to extreme environmental conditions. Protect
the device from dust, humidity, and heat.

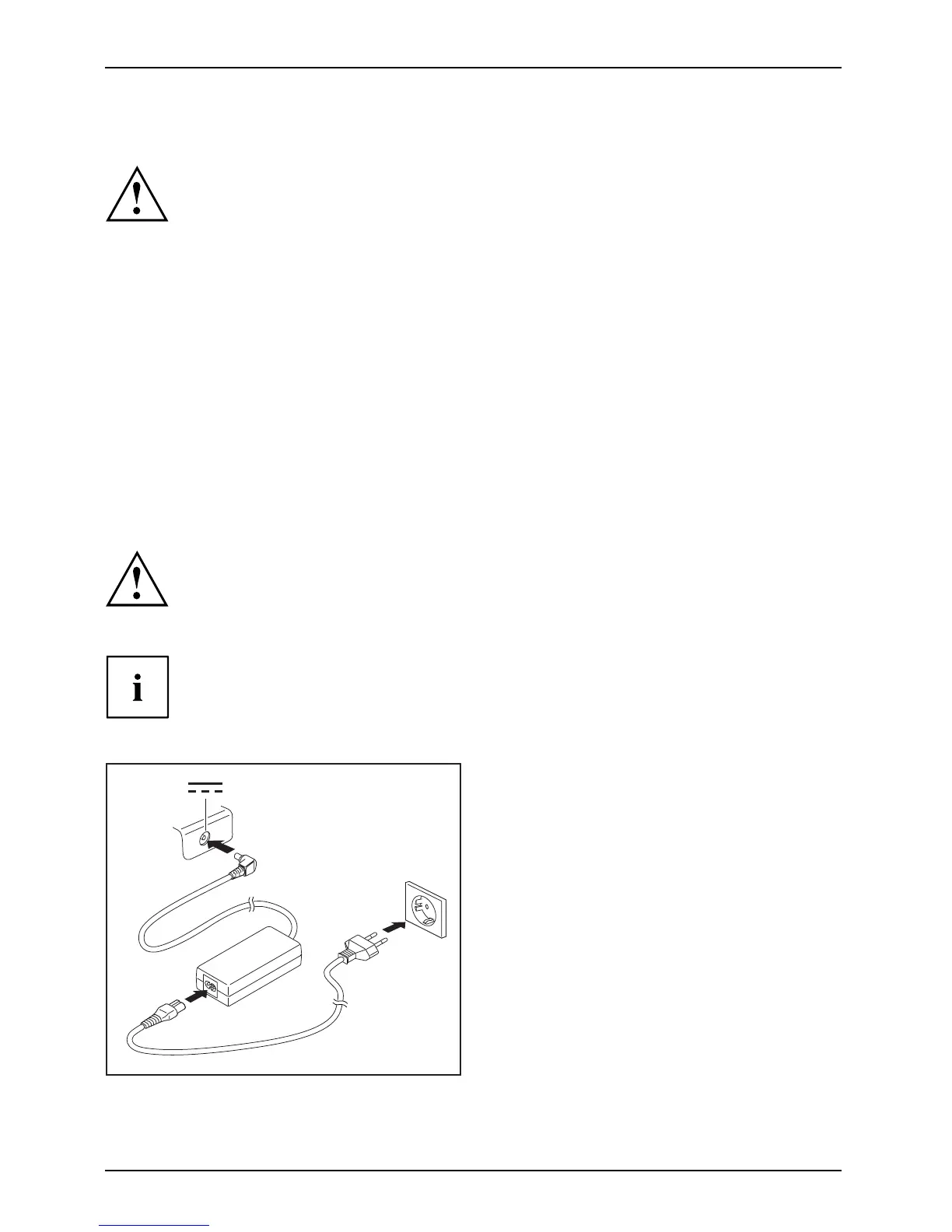

Mains adapter connecting
Preparingf or operationMainsadapt er
Observe the safety notes in the enclosed "Safety/Regulations" m an ual.
The supplied power cable conforms to the requirements of the country in
which you purchased your device. Make sure that the power cable is approved
for use in the country in which you intend to use it.
When the mains adapter is connected, you may feel a s light tingling when you t ouch
the top of the aluminium casing. The combination of a mains adapter without earth
and metallic casing components causes a very slight electric current.
This effect is harmless. The device meets all the relevant safety stan dards.
3
1
2
► Connect the power cable (1) to the
mains ada pter.
► Plug the mains cable (2) into a mains outlet.
► Connect the mains adapter cable (3) to
the DC jack (DC IN) of the device.
18

Fujitsu Stylistic Q702 Specifications

General

Form factor	Convertible (Detachable)
Product type	Hybrid (2-in-1)
Product color	Silver
Bus type	DMI
Stepping	L1
Tjunction	105 °C
Processor cache	3 MB
Processor cores	2
Processor model	i3-3227U
System bus rate	5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-3200 Mobile Series
Processor socket	BGA 1023
Processor threads	4
Processor codename	Ivy Bridge
Processor frequency	1.9 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	17 W
CPU multiplier (bus/core ratio)	19
Maximum number of PCI Express lanes	16
GPS (satellite)	Yes
Motherboard chipset	Intel® QM77 Express
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
Memory layout (slots x size)	1 x 4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
Total storage capacity	128 GB
Compatible memory cards	SD, SDHC, SDXC
Number of SSDs installed	1
Display diagonal	11.6 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display brightness	400 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Maximum resolution	1920 x 1200 pixels
On-board graphics card ID	0x166
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Audio system	Realtek ALC269
Rear camera resolution (numeric)	5 MP
3G standards	HSDPA, HSUPA, UMTS
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile network generation	3G
Charging port type	DC-in jack
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
eSATA/USB 2.0 ports quantity	0
Keyboard layout	-
Trial software	McAfee Internet Security
Pre-installed software	Adobe Reader
Operating system installed	Windows 8 Pro
Processor code	SR0XF
Processor ARK ID	72057
Processor package size	31 x 24 (BGA1023) mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00
Battery capacity	3150 mAh
Battery life (max)	4.12 h
Battery recharge time	4.2 h
Number of battery cells	3
AC adapter power	60 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.16 A
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	195 mm
Width	302 mm
Height	12.7 mm
Weight	850 g
