Fujitsu Stylistic Q702 Operating Manual

Working with the Tablet PC
Calibrating the pen
Before using the pen for the first time, you should calibrate it so that the cursor follows the
movements of the pen as accurately as possible. You should also always repea t the calibration
if the co-ordination between the pen and cursor movement deteriorates.
Operating system Menu
Windows 7
To calibrate, call up the Hardware and Sound / Tablet PC Settings fu nction
in the Control Panel. You need to calibrate both portrait and lan dscape
formats.

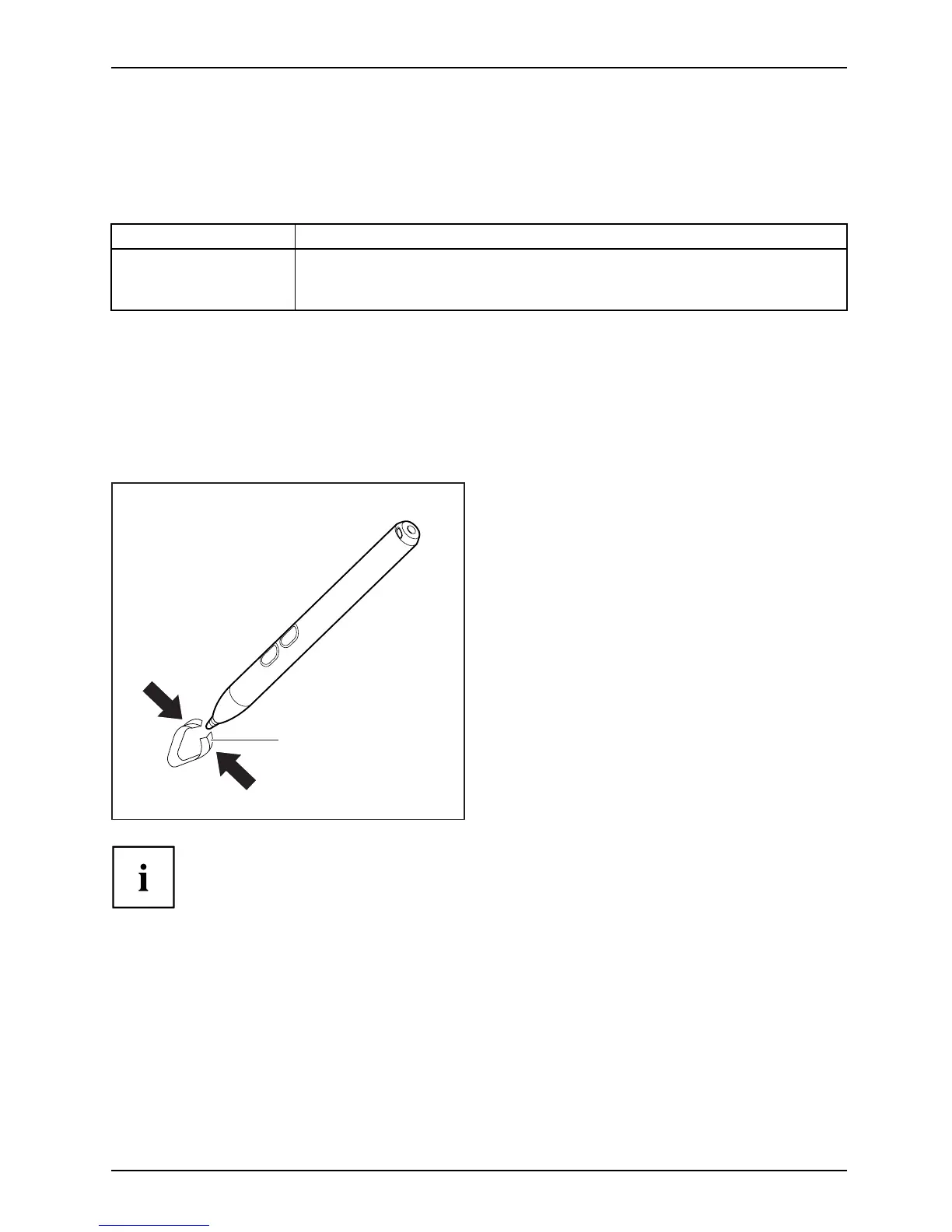

Replacing the pen tip
With use, the pen tip may become worn or may pick up foreign particles that can
scratch the screen. A damaged or worn tip may not m ove free ly over the screen ,
causing un predictable results when using the pen.
If your p en exhibits these problems, you should replace the pen tip. To do this, use the supplied tool (1).
1
► To re move the tip, position the tip in the gap
between the two ends of the tool supplied.
► Pinch the tw o ends of the supplied tool
together so that the tip is firmly clasped,
then pu ll it fro m the barrel.
► Replace the tip of the pen with one of
the spare tips sup plied with your pen.
Insert the flat end of the tip into th e
barrel and exert ing gentle pressure, push
it in until it is firmly in place.
If the tip is worn or damaged, discard it.
31

Fujitsu Stylistic Q702 Specifications

General

Form factor	Convertible (Detachable)
Product type	Hybrid (2-in-1)
Product color	Silver
Bus type	DMI
Stepping	L1
Tjunction	105 °C
Processor cache	3 MB
Processor cores	2
Processor model	i3-3227U
System bus rate	5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-3200 Mobile Series
Processor socket	BGA 1023
Processor threads	4
Processor codename	Ivy Bridge
Processor frequency	1.9 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	17 W
CPU multiplier (bus/core ratio)	19
Maximum number of PCI Express lanes	16
GPS (satellite)	Yes
Motherboard chipset	Intel® QM77 Express
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
Memory layout (slots x size)	1 x 4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
Total storage capacity	128 GB
Compatible memory cards	SD, SDHC, SDXC
Number of SSDs installed	1
Display diagonal	11.6 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display brightness	400 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Maximum resolution	1920 x 1200 pixels
On-board graphics card ID	0x166
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Audio system	Realtek ALC269
Rear camera resolution (numeric)	5 MP
3G standards	HSDPA, HSUPA, UMTS
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile network generation	3G
Charging port type	DC-in jack
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
eSATA/USB 2.0 ports quantity	0
Keyboard layout	-
Trial software	McAfee Internet Security
Pre-installed software	Adobe Reader
Operating system installed	Windows 8 Pro
Processor code	SR0XF
Processor ARK ID	72057
Processor package size	31 x 24 (BGA1023) mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00
Battery capacity	3150 mAh
Battery life (max)	4.12 h
Battery recharge time	4.2 h
Number of battery cells	3
AC adapter power	60 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.16 A
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	195 mm
Width	302 mm
Height	12.7 mm
Weight	850 g
