12.2. Internal Diagnostics
The Fullclean Plus has a build-in Diagnostics Mode. It makes testing of the inputs and the
outputs of the Fullclean Plus possible.
To enter the Internal Diagnostics Mode:
1. Switch OFF the power.
2. Set all address dipswitches to OFF.
3. Switch the power back ON.
The Fullclean Plus will now periodically power all on-board relays ON and OFF, one by one.
This continues until the power is removed. At the same time the digital and analog inputs are
real-time monitored and the results are continuously shown on the display (Figure 25).

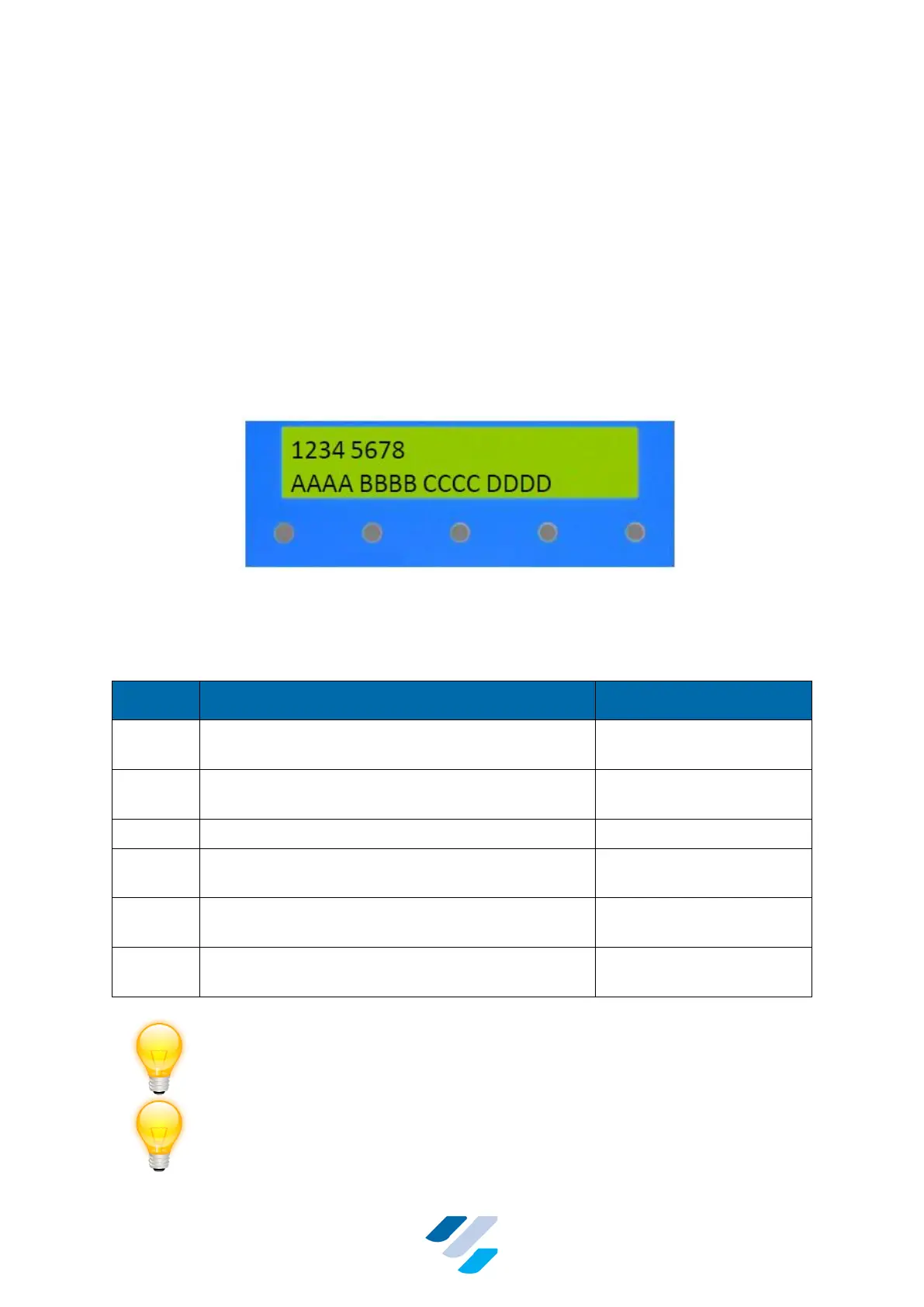

Figure 25 Fullclean Display in Diagnostics Mode
Table 7 below gives an explanation of the diagnostic codes shown on the display.
Table 7 Diagnostic Codes
Position
Input
Value
1234
On-board digital inputs1 (refer to NOTE)
“0”= open
“1”= closed
5678
4-IN/OUT digital inputs2 (refer to NOTE)
“0”= open
“1”= closed
AAAA
Not used
BBBB
ADC value of analog input PH/cond. sensor X2
4 mA= +/- “0122”
20 mA= +/- “0933”
CCCC
ADC value of analog input temperature X3/t1
Open= “1023”
0 Ω = “0003~0010”
DDDD
ADC value of analog input temperature X3/t2
Open= “1023”
0 Ω = “0003~0010”
NOTE
Position 1= input 1, position 2 = input 2 and so on.
NOTE
Although the ph/cond. Sensor is mentioned at position “BBBB”, it is not
implemented and used in any wash program.
