Doc No:
006614
Fullwood Packo FullClean Plus
Revision:
D
Date:
14/08/2020
Page 36 of 58

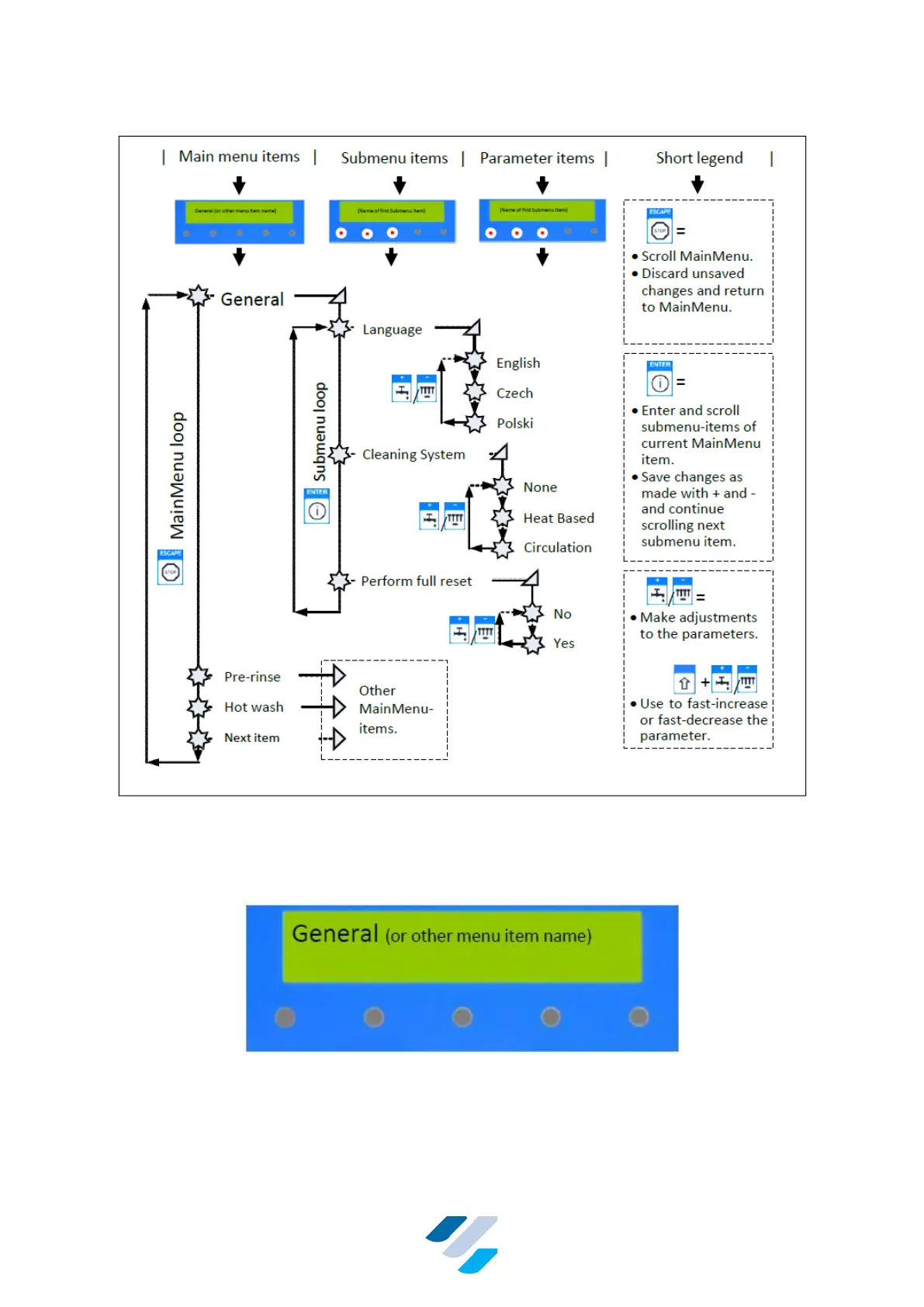

Figure 22 Simplified Menu Structure; Main Menu “General” shown with Sub Menu
and Parameter Items Extended
12.1.3. Handling Main Menu Items
Figure 23 Main Menu
The Adjust Mode is build up as a menu structure where the keys on the terminal are used to
scroll through the menus, to enter the submenus and to set the desired values. The display
provides feedback about the available- and entered settings.
