Fulton ProtoNode Start-up Guide

Page 20 of 47

4.4 Termination Resistor

If the ProtoNode is the last device on the serial trunk, then the End-Of-Line Termination Switch needs to

be enabled. To enable the Termination Resistor, move the TERM dip switch to the right in the

orientation shown in Figure 8.

Termination resistor is also used to reduce noise. It pulls the two lines of an idle bus together. However,

the resistor would override the effect of any bias resistors if connected.

NOTE: The R1 and R2 DIP Switches apply settings to the respective serial port.

NOTE: If the gateway is already powered on, DIP switch settings will not take effect unless the

unit is power cycled.

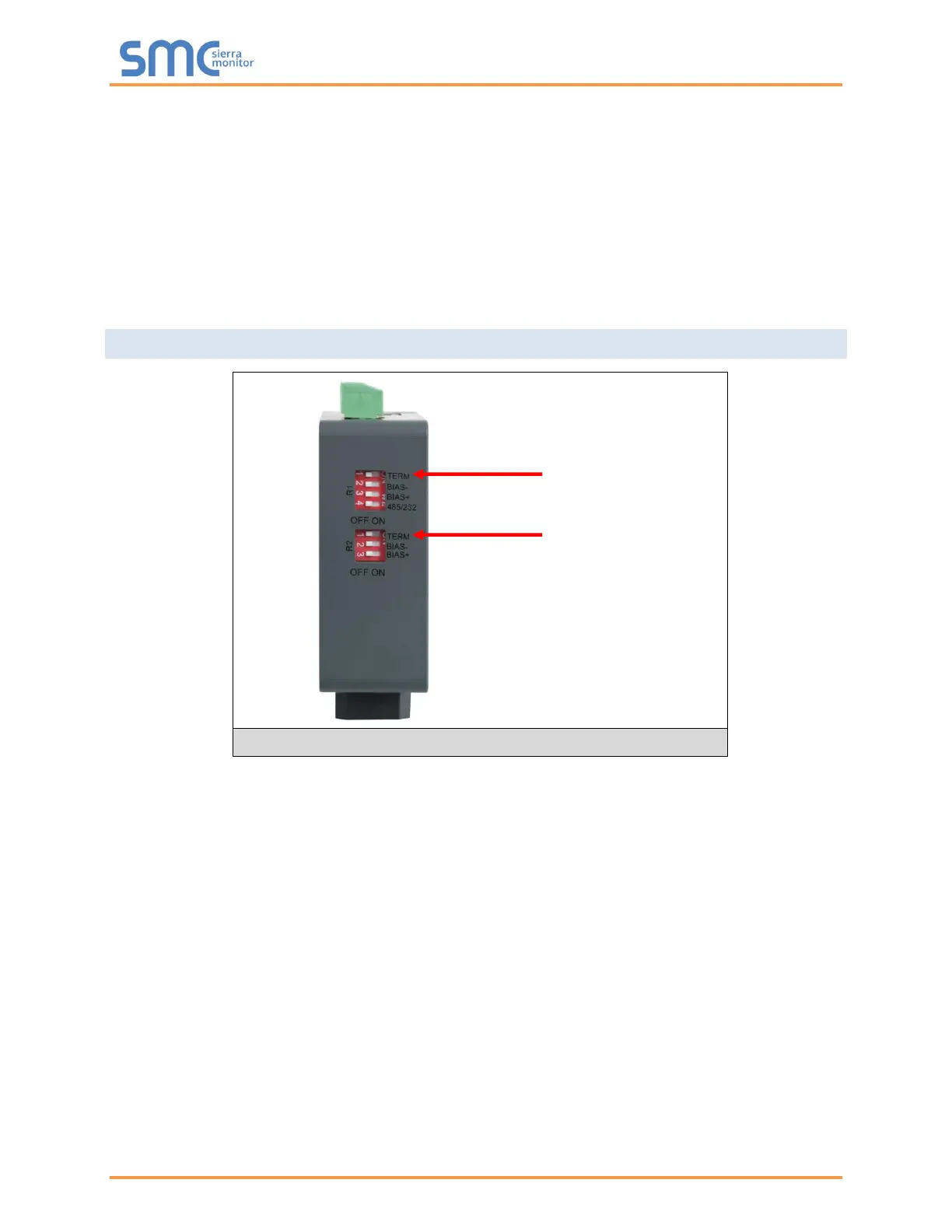

R1 Termination

Resistor DIP Switch (1)

Figure 12: Termination Resistor DIP Switch

R2 Termination

Resistor DIP Switch (1)
