Fulton ProtoNode Start-up Guide

Page 33 of 47

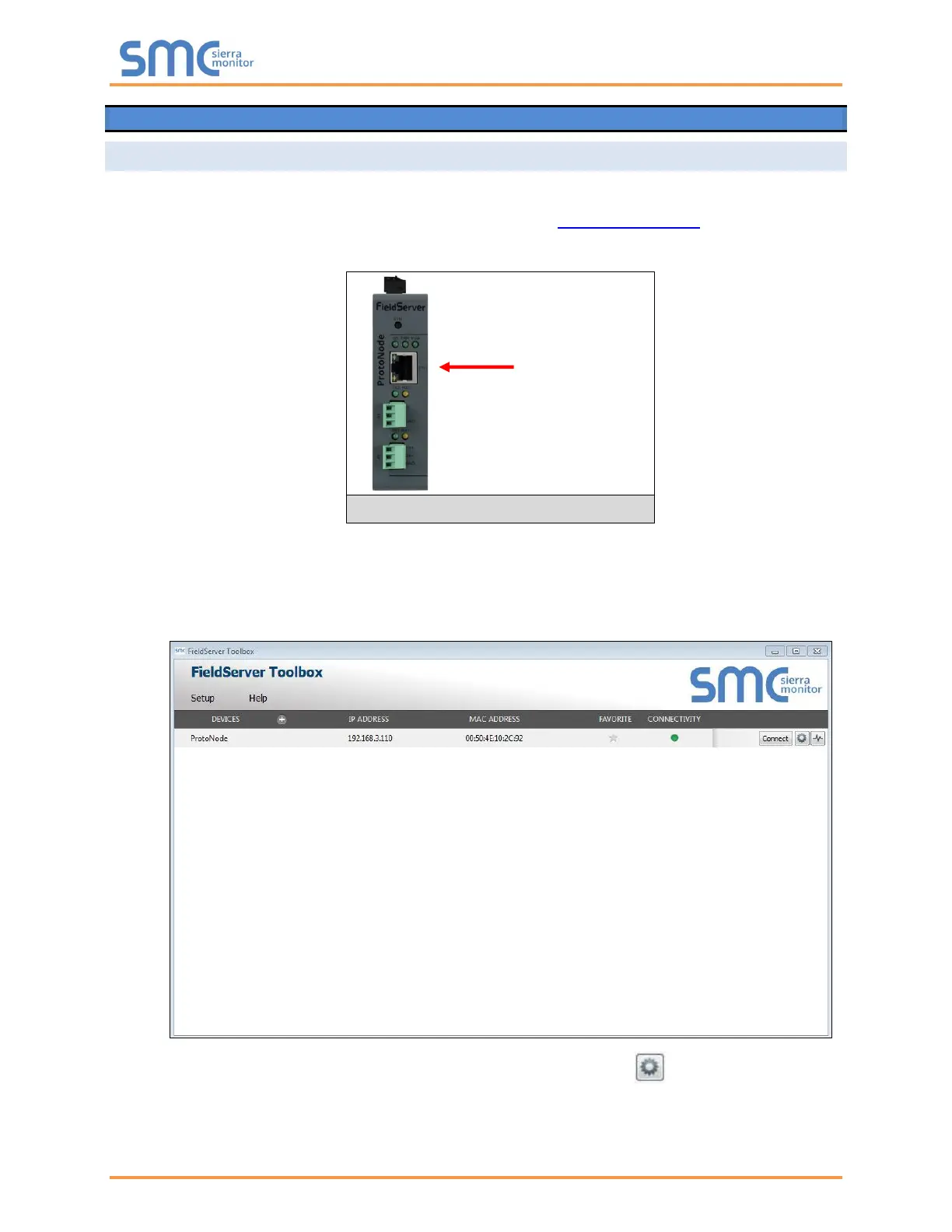

Appendix A Troubleshooting

Appendix A.1 Lost or Incorrect IP Address

• Ensure that FieldServer Toolbox is loaded onto the local PC. Otherwise, download the

FieldServer-Toolbox.zip via the Sierra Monitor website’s Software Downloads.

• Extract the executable file and complete the installation.

• Connect a standard Cat-5 Ethernet cable between the user’s PC and ProtoNode.

• Double click on the FS Toolbox Utility and click Discover Now on the splash page.

• Check for the IP Address of the desired gateway.

• If correcting the IP Address of the gateway: click the settings icon on the same row as the

gateway, then click Network Settings, change the IP Address and click Update IP Settings to save.

Ethernet Port

Figure 26: Ethernet Port Location
