Fulton ProtoNode Start-up Guide

Page 42 of 47

Appendix B.2 Securing ProtoNode with Passwords

Access to the ProtoNode can be restricted by enabling a password on the FS-GUI Passwords page – click

Setup and then Passwords in the navigation panel. There are 2 access levels defined by 2 account names:

Admin and User.

• The Admin account has unrestricted access to the ProtoNode.

• The User account can view any ProtoNode information but cannot make any changes or restart

the ProtoNode.

The password needs to be a minimum of eight characters and is case sensitive.

If the password is lost, click cancel on the password authentication popup window, and email the password

recovery token to technical support to receive a temporary password from the customer support team.

Access the ProtoNode to set a new password.

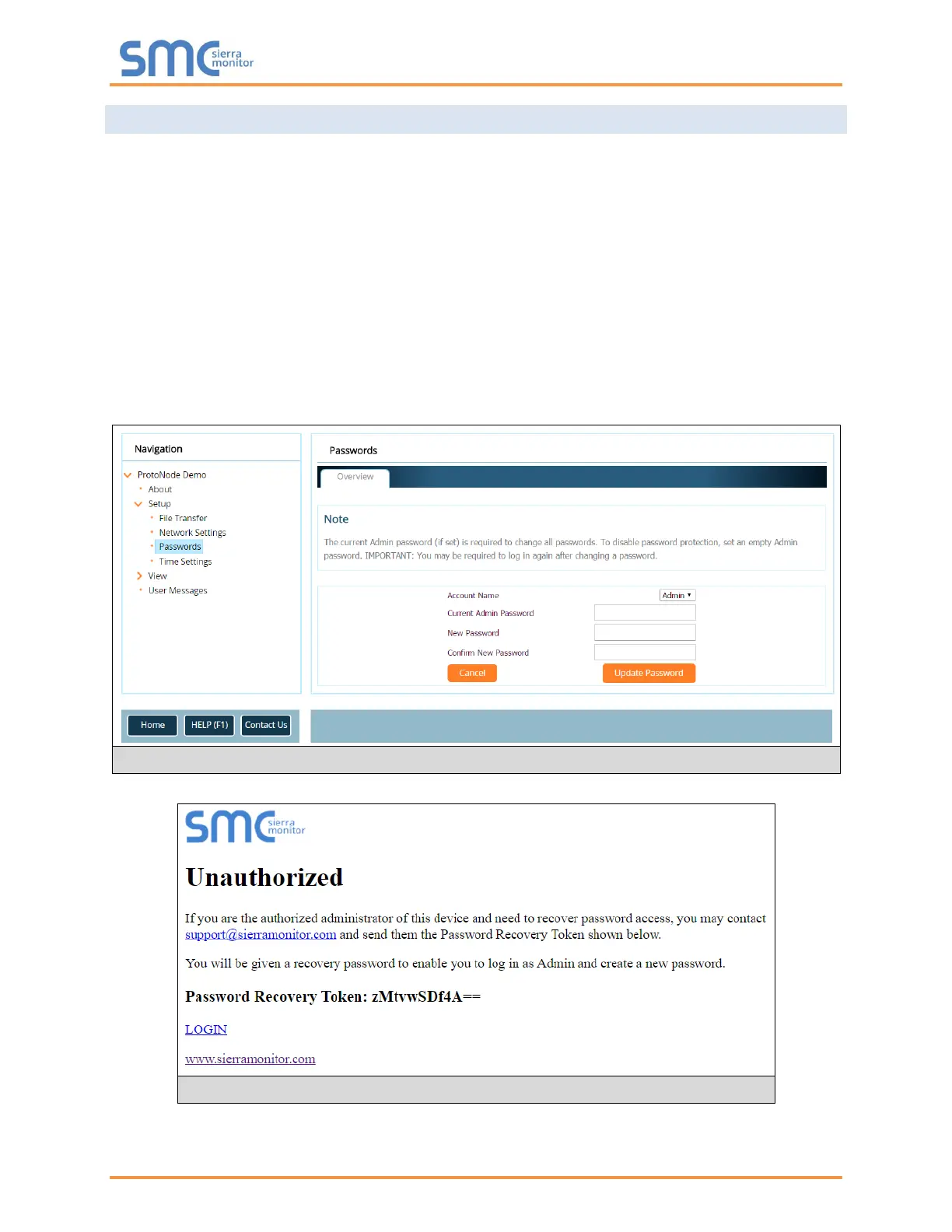

Figure 31: Password Recovery Page

Figure 30: FS-GUI Passwords Page
