Fulton ProtoNode Start-up Guide

Page 24 of 47

6 CONFIGURE THE PROTONODE

6.1 Accessing the ProtoNode Web Configurator

• Navigate to the IP Address of the ProtoNode on the local PC by opening a web browser and

entering the IP Address of the ProtoNode; the default Ethernet address is 192.168.1.24.

NOTE: If the IP Address of the ProtoNode has been changed, the IP Address can be discovered

using the FS Toolbox utility. See Appendix A.1 for instructions.

• Once at the Web App splash page, click the Login button.

• Enter the previously set up or default username and password.

NOTE: The default username is “admin”. The default password is “admin”.

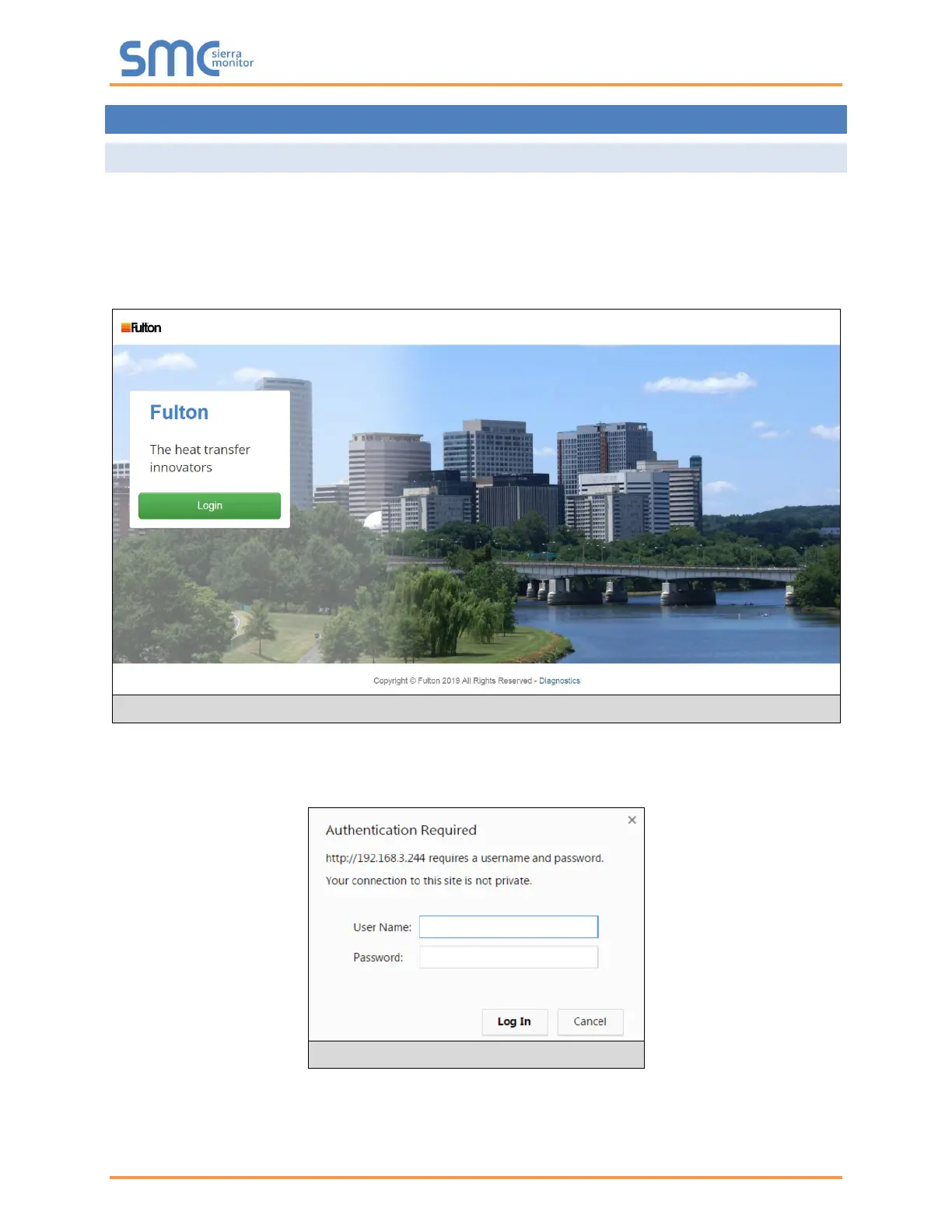

Figure 17: Login Window

Figure 16: Web App Splash Page
