Fulton ProtoNode Start-up Guide

Page 22 of 47

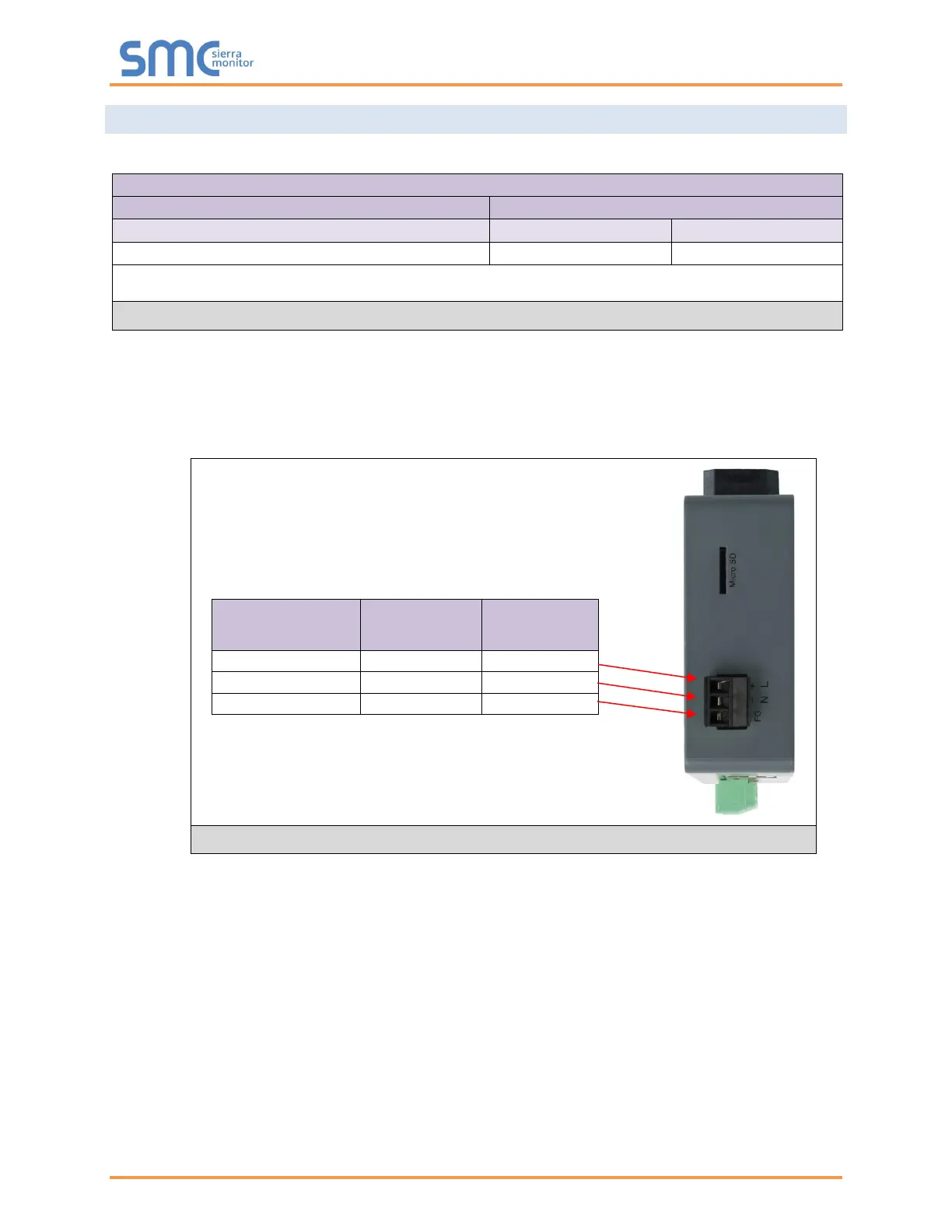

4.5 Power-Up ProtoNode

Check power requirements in the table below:

Power Requirement for ProtoNode External Gateway

Current Draw Type

ProtoNode Family

12VDC

24VDC/AC

FPC – N54 (Typical)

250mA

125mA

NOTE: These values are ‘nominal’ and a safety margin should be added to the power supply of

the host system. A safety margin of 25% is recommended.

Figure 13: Required Current Draw for the ProtoNode

Apply power to the ProtoNode as shown below in Figure 10. Ensure that the power supply used complies

with the specifications provided in Appendix D.1.

• The ProtoNode accepts 9-30VDC or 24VAC on pins L+ and N-.

• Frame GND should be connected, except when using 24VAC.

Power to

ProtoNode

Pin Label

Assignment

Power In (+)

L +

V +

Power In (-)

N -

V -

Frame Ground

FRAME GND

Figure 14: Power Connections
