FULTON ProtoNode FPC-N54 - Sending Diagnostic Logs

47 pages

To Next Page

To Previous Page

Fulton ProtoNode Start-up Guide

Page 39 of 47

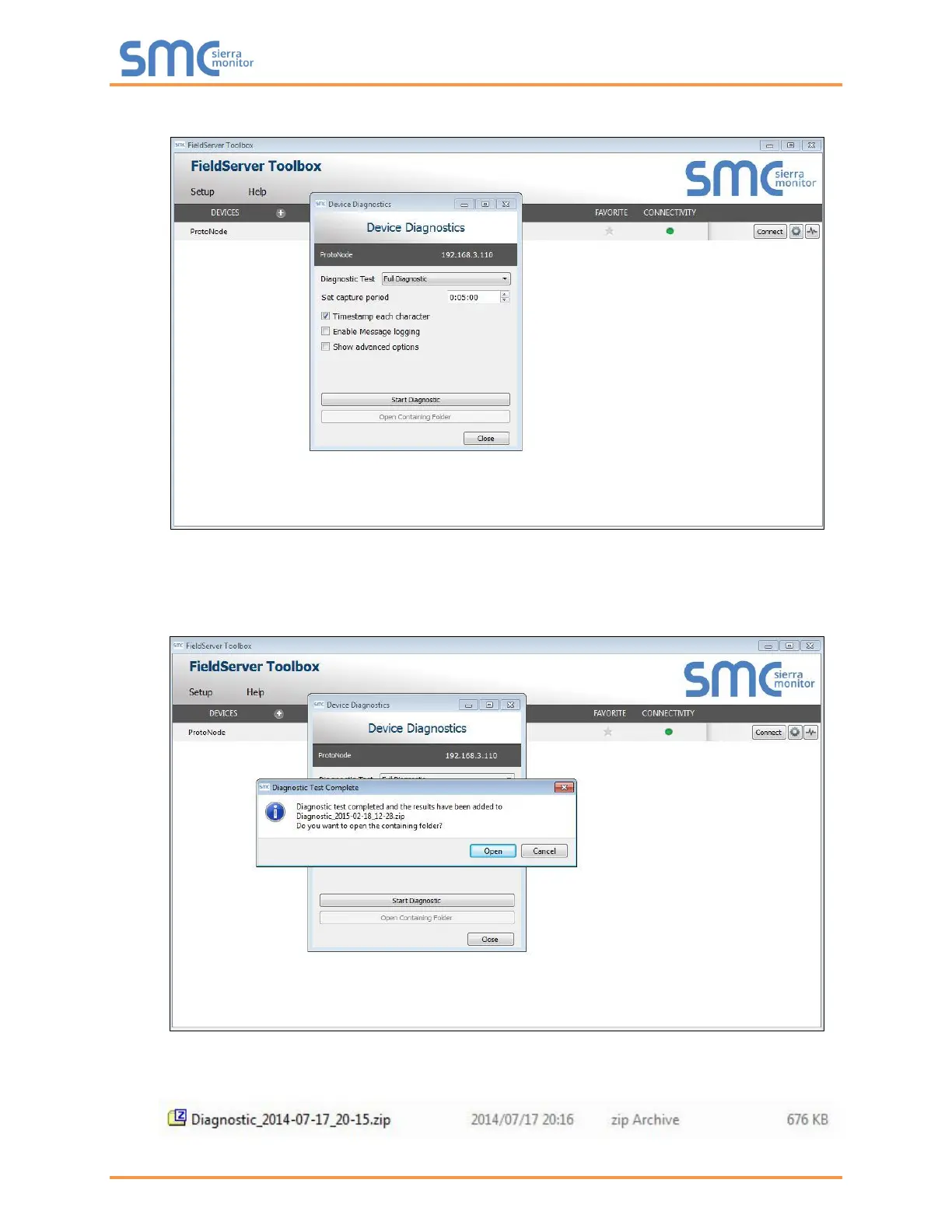

o Click on “Start Diagnostic”

o Wait for Capture period to finish, then the Diagnostic Test Complete window will appear

• Step 2: Send Log

o Once the Diagnostic test is complete, a .zip file is saved on the PC

o Choose “Open” to launch explorer and have it point directly at the correct folder

o Email the diagnostic zip file to technical support.
