2. Radar Operation
2-39
2.27.2 Presetting antenna and display combinations
You can preset the antenna and display combinations for each antenna and display in the radar system. As an
example, the procedure below shows how to select the no. 1 antenna unit for the no. 2 display unit.

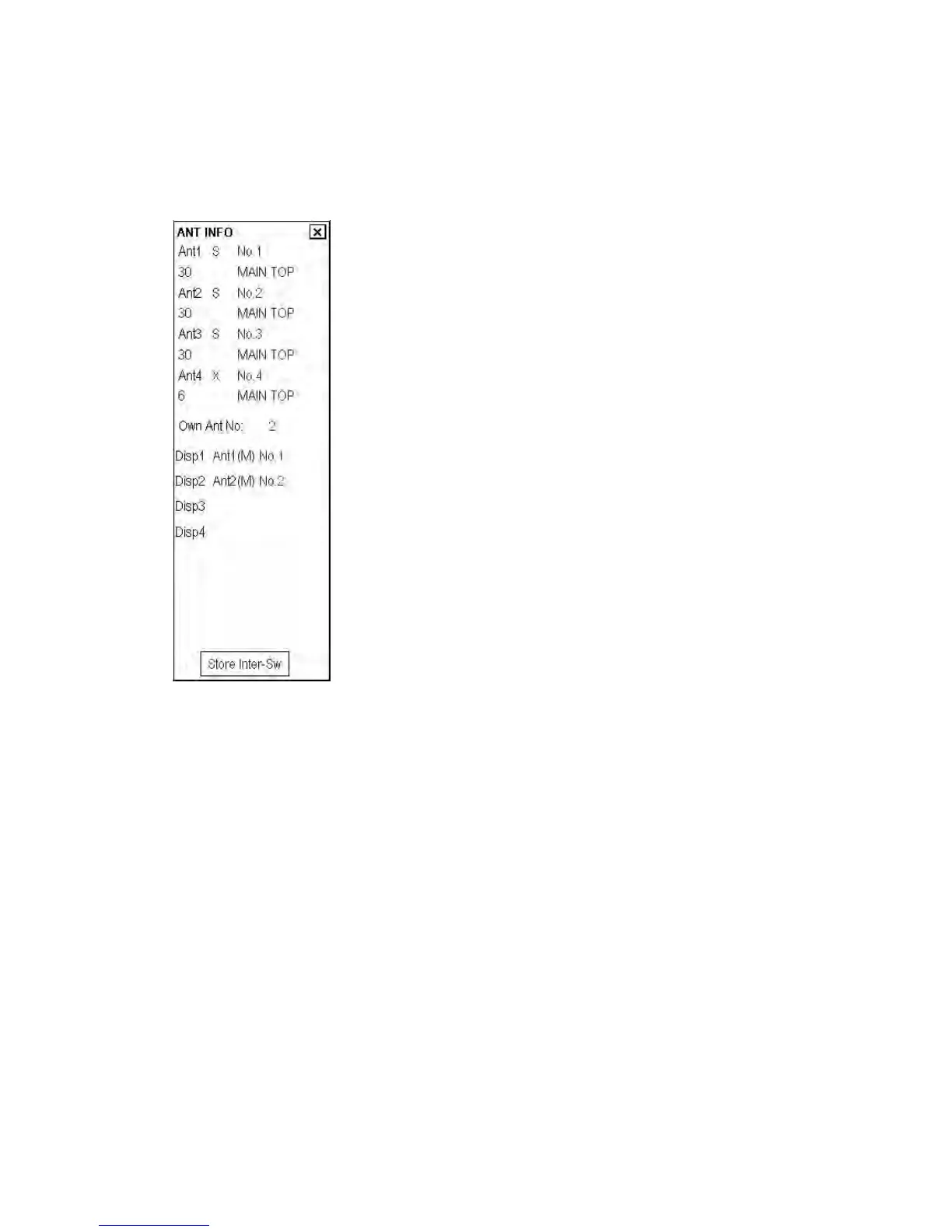

1. Right-click the ANTENNA box to show the ANT SELECT display.
2. Select the display unit for which to select an antenna (at the next step). For example, select Disp2 to select the
no. 2 display unit.
3. The cursor is now selecting the current display and antenna combination for the no. 2 display unit. Roll the
scrollwheel to display Ant1(M) then push the left button.
4. Repeat step 3 and 4 to set other display and antenna combinations.
5. Click Store Inter-SW.
6. Push the right button to close the menu.
2.27.3 Selection considerations
• An antenna unit cannot be controlled from multiple display units. Select one MASTER display unit for one
antenna unit. If two antenna units are set as masters, the display last-set as master becomes the master and all
other displays are automatically changed to slave.
• Radar functions are controlled independently, dependently or commonly depending on selection as Master or
Slave.
• An antenna unit without a MASTER display cannot be selected on the sub display units. If there is no antenna
unit set as master, the lowest number display is automatically set as master.
