4 Logical Structure

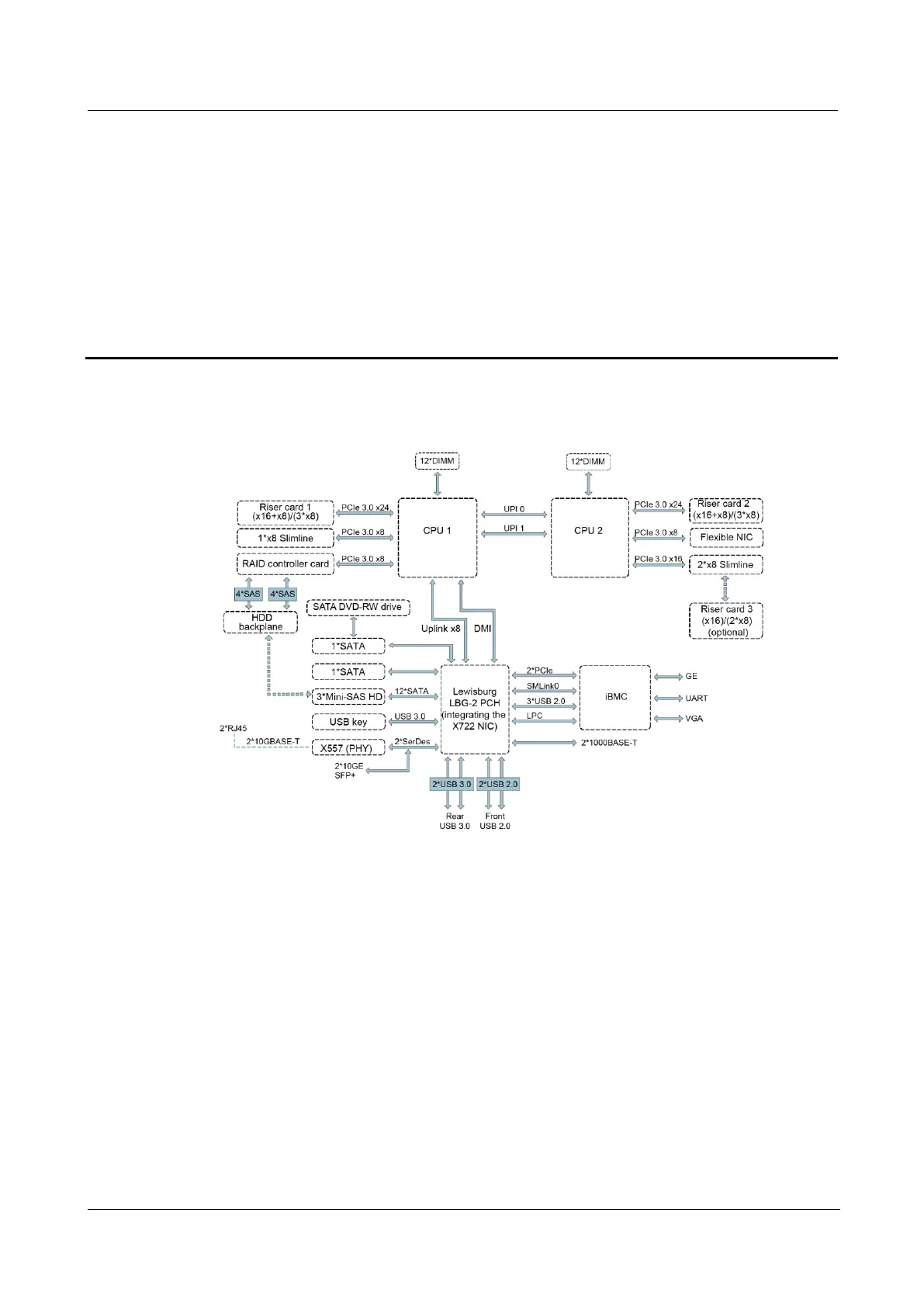

Figure 4-1 2288H V5 logical structure
⚫
The server supports one or two Intel
®
Xeon
®
Scalable processors.
⚫
The server supports up to 24 memory modules.
⚫
The CPUs (processors) interconnect with each other through two UPI links at a
speed of up to 10.4 GT/s.
⚫
Three PCIe riser cards connect to the processors through PCIe buses to provide
ease of expandability and connection.
⚫
The RAID controller card on the mainboard connects to CPU 1 through PCIe
buses, and connects to the drive backplane through SAS high-speed cables. A
variety of drive backplanes are provided to support different local storage
configurations.
⚫
The LBG-2 Platform Controller Hub (PCH) supports:
− Two 10GE optical LOM ports or two 10GE electrical LOM ports
− Two GE electrical LOM ports
