FusionServer 2288H V5 Server
Technical White Paper
5 Hardware Description
Issue 11 (2023-04-30)
Copyright © xFusion Digital Technologies Co., Ltd.
22
5.2.3 Ports
Port Positions

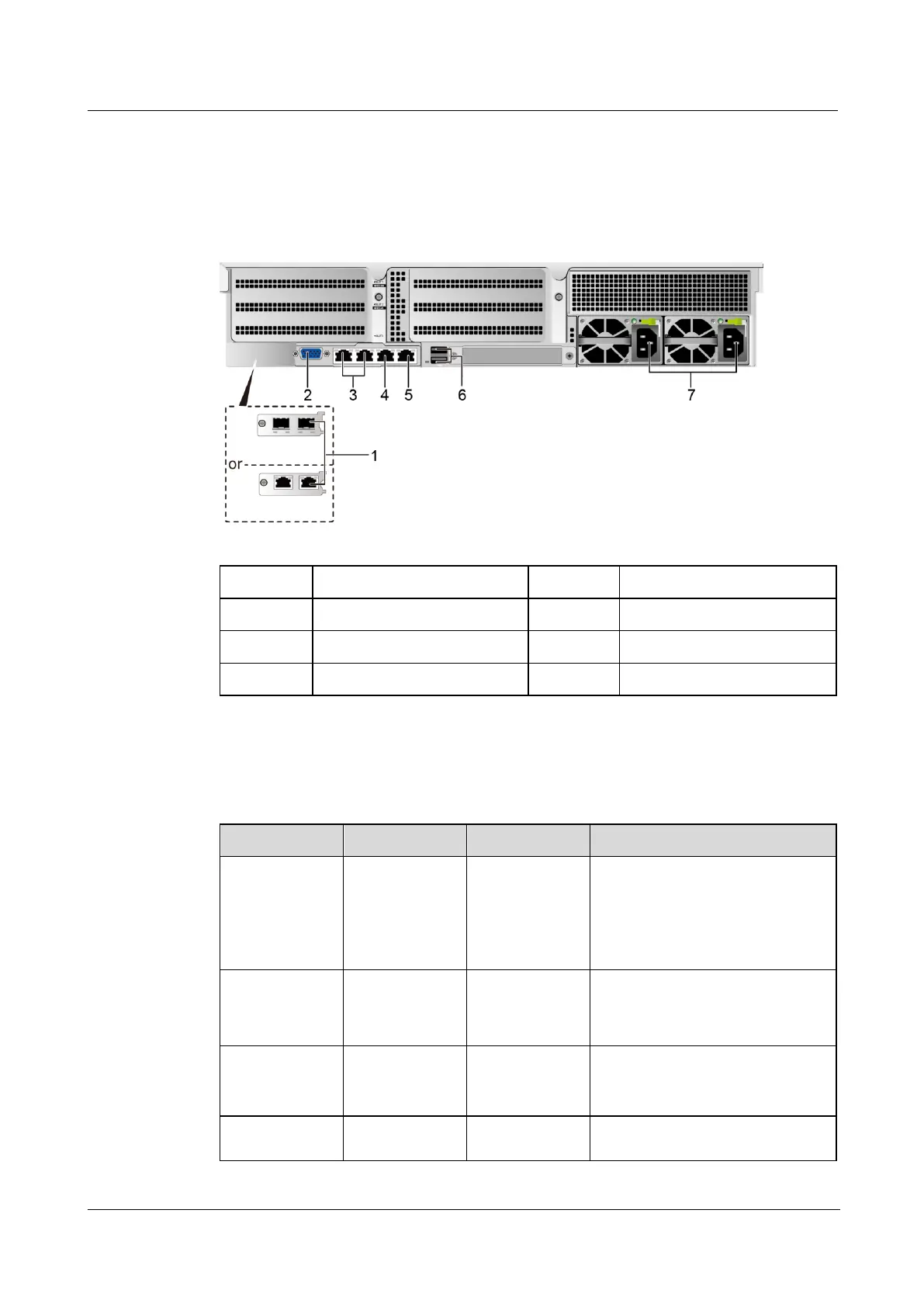

Figure 5-21 Ports on the rear panel
1
LOM port 1
2
VGA port
3
LOM port 2
4
Management network port
5
Serial port
6
USB 3.0 port
7
PSU socket
8
-
Port Description
Table 5-4 Description of ports on the rear panel
Tool
Type
Quantity
Description
LOM port 1
10GE SFP+ or
10GE BASE-T
2
10GE LOM service ports
(optical/electrical). Use the
optical or electrical ports based
on service requirements.
For details, see 5.6.1 LOMs .
LOM port 2
1000BASE-T
2
GE LOM service ports
(electrical).
For details, see 5.6.1 LOMs .
VGA port
DB15
1
Used to connect a display
terminal, such as a monitor or
KVM.
Serial port
RJ45
1
Default operating system serial
port used for debugging. You
