FusionServer 2288H V5 Server

Technical White Paper

5 Hardware Description

Issue 11 (2023-04-30)

5.5.2 Drive Numbering

When the common hard drive management mode is PCH, each SATA drive has a fixed ATA

number. ATA numbers provided in this section are based on the assumption that the hard drive

management mode is PCH. The following table lists the mapping between ATA numbers and

physical hard drive numbers.

⚫

8 x 2.5" drive pass-through configuration 1 and 8 x 2.5" drive pass-through

configuration 2

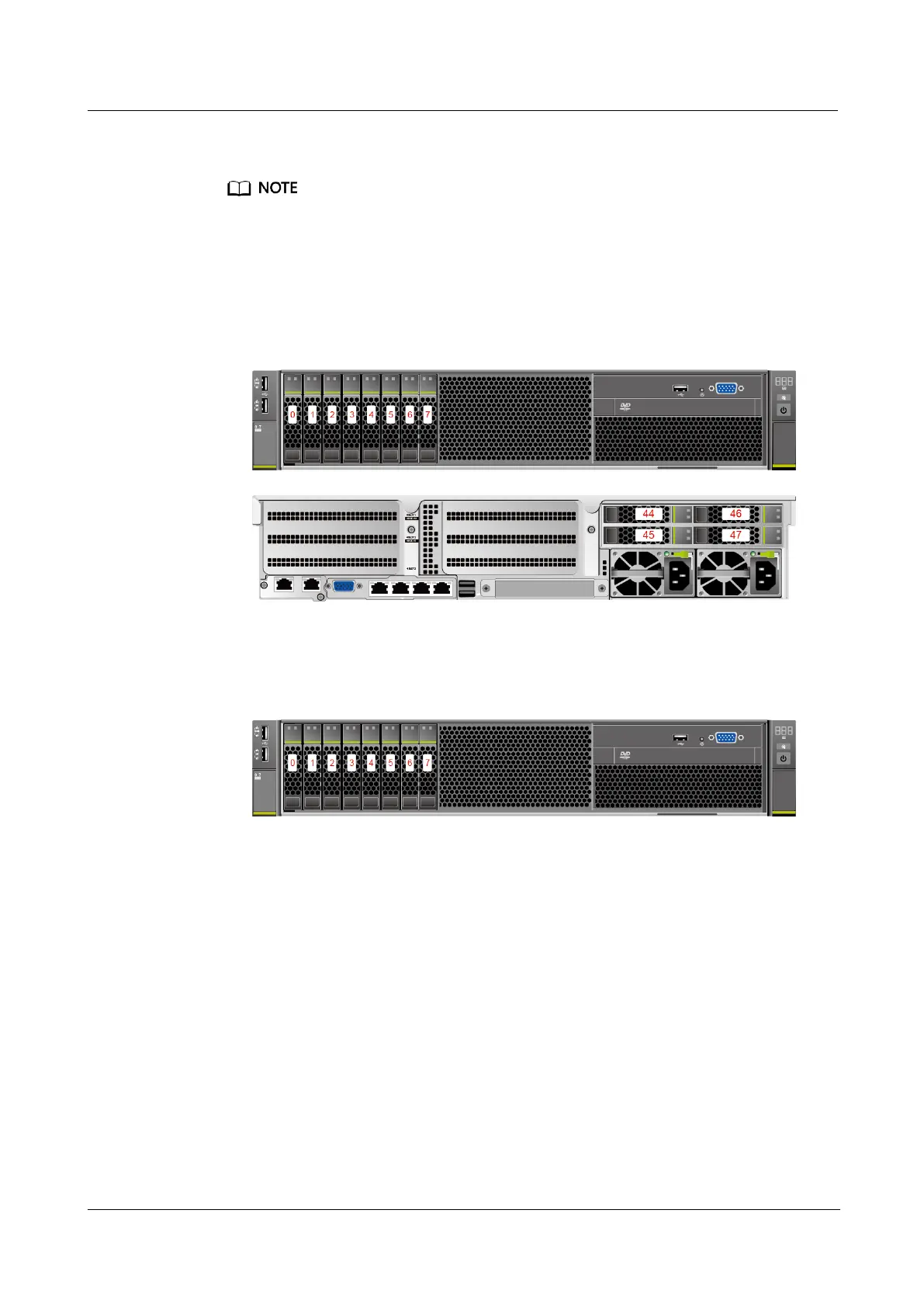

Figure 5-32 Drive numbering

⚫

8 x 2.5" drive pass-through configuration 3

Figure 5-33 Drive numbering

⚫

8 x 3.5" drive pass-through configuration 1 and 8 x 3.5" drive pass-through

configuration 2
