◼ Each processor supports two integrated memory controllers (IMCs). At
least two channels of each IMC are used for installing memory modules
(channels 1 and 2, or channels 1, 2, and 3). The installed memory
modules must be identical in size and organization.
◼ For a multi-processor configuration, each processor must have a valid
memory mirroring configuration.
− Memory scrubbing mode
◼ Comply with the general installation guidelines.
5.4.1.5 Memory Installation Positions
A 2288H V5 supports a maximum of 24 DDR4 DIMMs. To maximize the performance,
balance the total memory capacity between the installed processors and load the
channels similarly whenever possible.
At least one DDR4 DIMM must be installed in the memory slots corresponding to CPU
1.

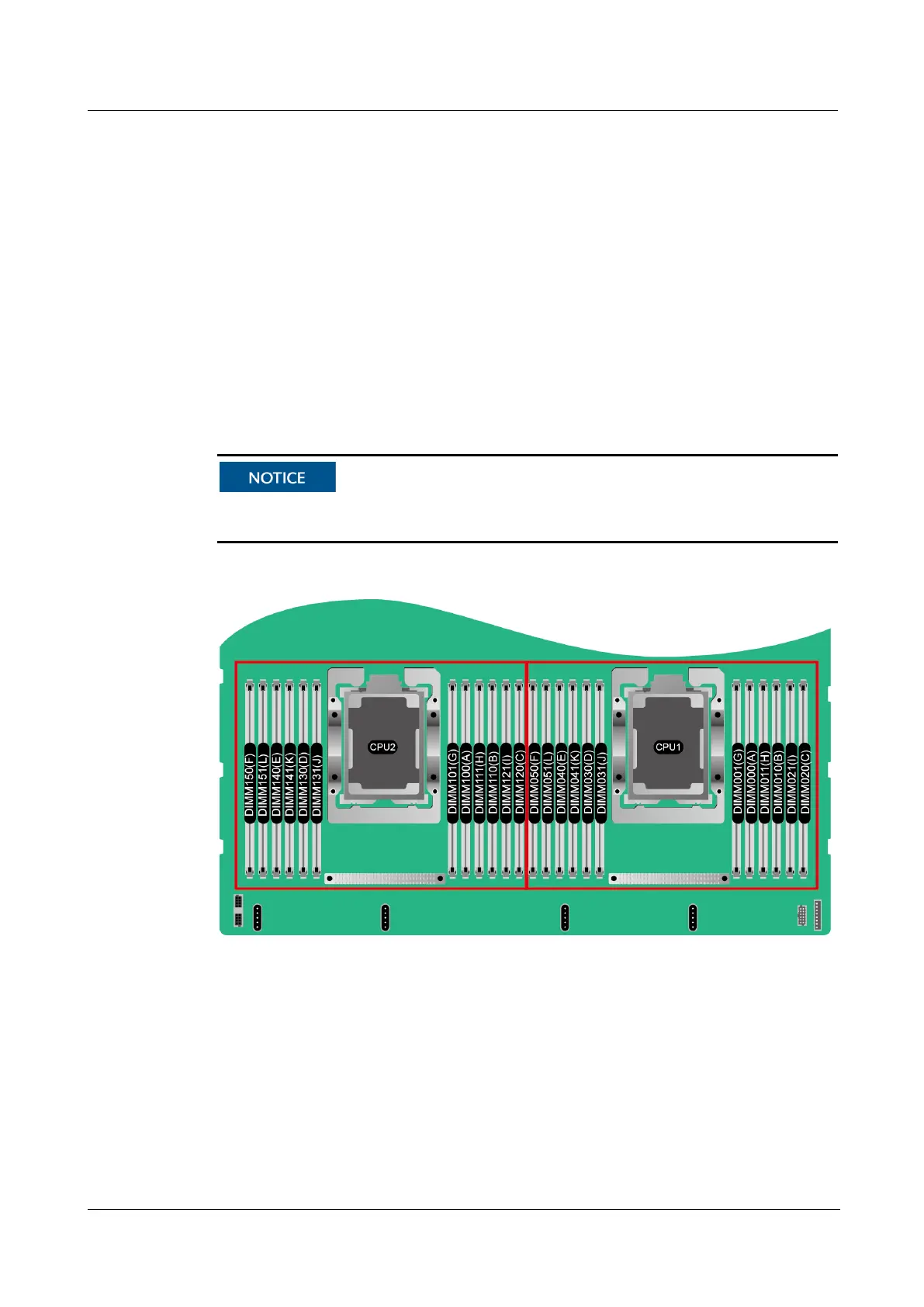

Figure 5-24 Memory slots
