FusionServer 2288H V5 Server
Technical White Paper
5 Hardware Description
Issue 11 (2023-04-30)
Copyright © xFusion Digital Technologies Co., Ltd.
35
CPU Type
Maximum Memory Capacity Supported by a CPU (DDR4 and
DCPMM Capacities)
M series
2 TB
L series
4.5 TB
5.4.2.5 Memory Installation Positions
A 2288H V5 supports a maximum of 12 DCPMMs. The DCPMMs must be used with
DDR4 DIMMs.

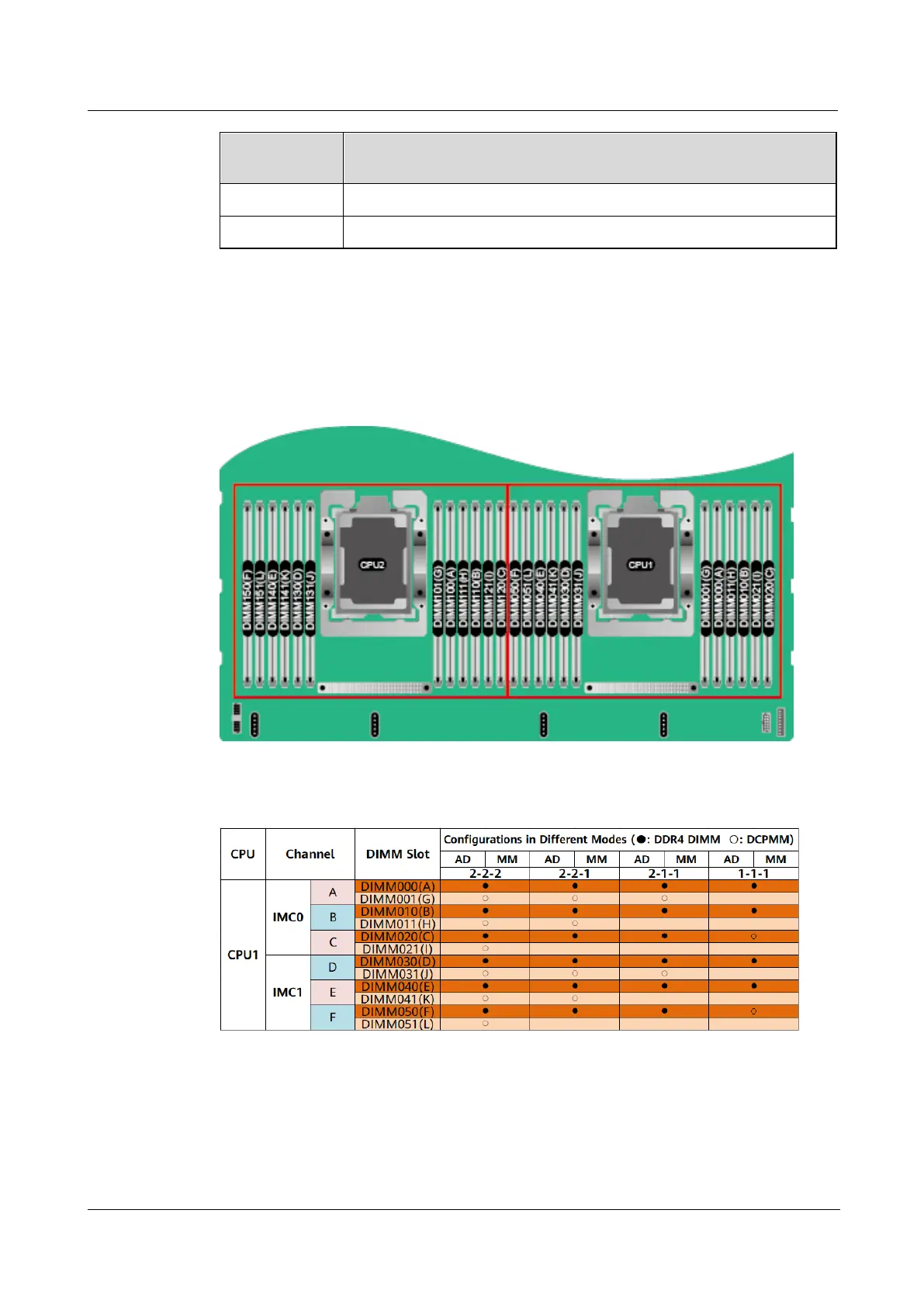

Figure 5-28 Memory slots
Figure 5-29 DCPMM and DDR4 memory configuration guidelines (1 processor)
