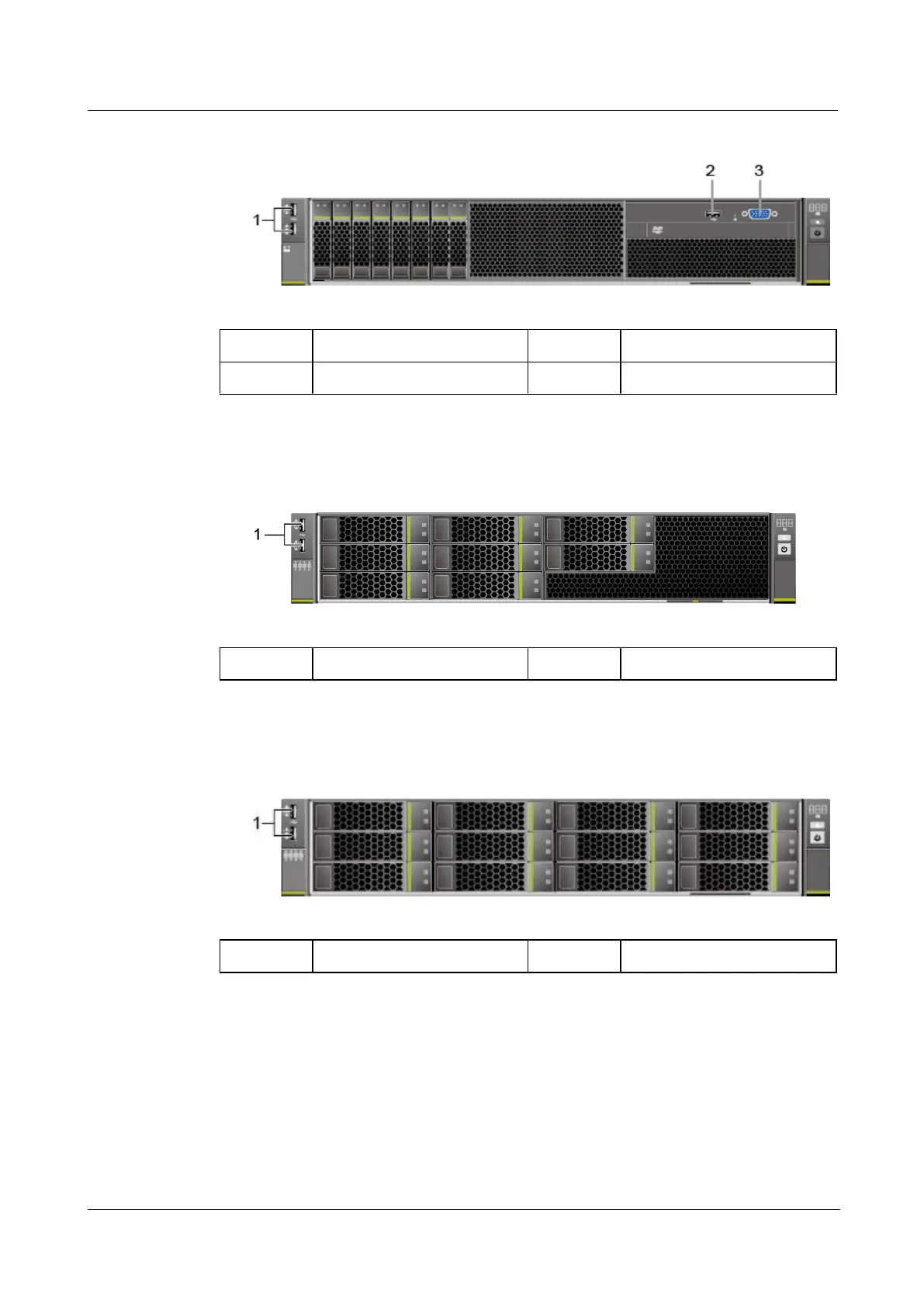

Figure 5-13 Ports on the front panel
1
USB 2.0 ports
2
USB 3.0 port
3
VGA port
-
-
⚫
8 x 3.5" drive configuration
Figure 5-14 Ports on the front panel
1
USB 2.0 ports
-
-
⚫
12 x 3.5" drive configuration
Figure 5-15 Ports on the front panel
1
USB 2.0 ports
-
-
⚫
20 x 2.5" (8 x SAS/SATA + 12 x NVMe) drive configuration
