FusionServer 2288H V5 Server
Technical White Paper
5 Hardware Description
Issue 11 (2023-04-30)
Copyright © xFusion Digital Technologies Co., Ltd.
68

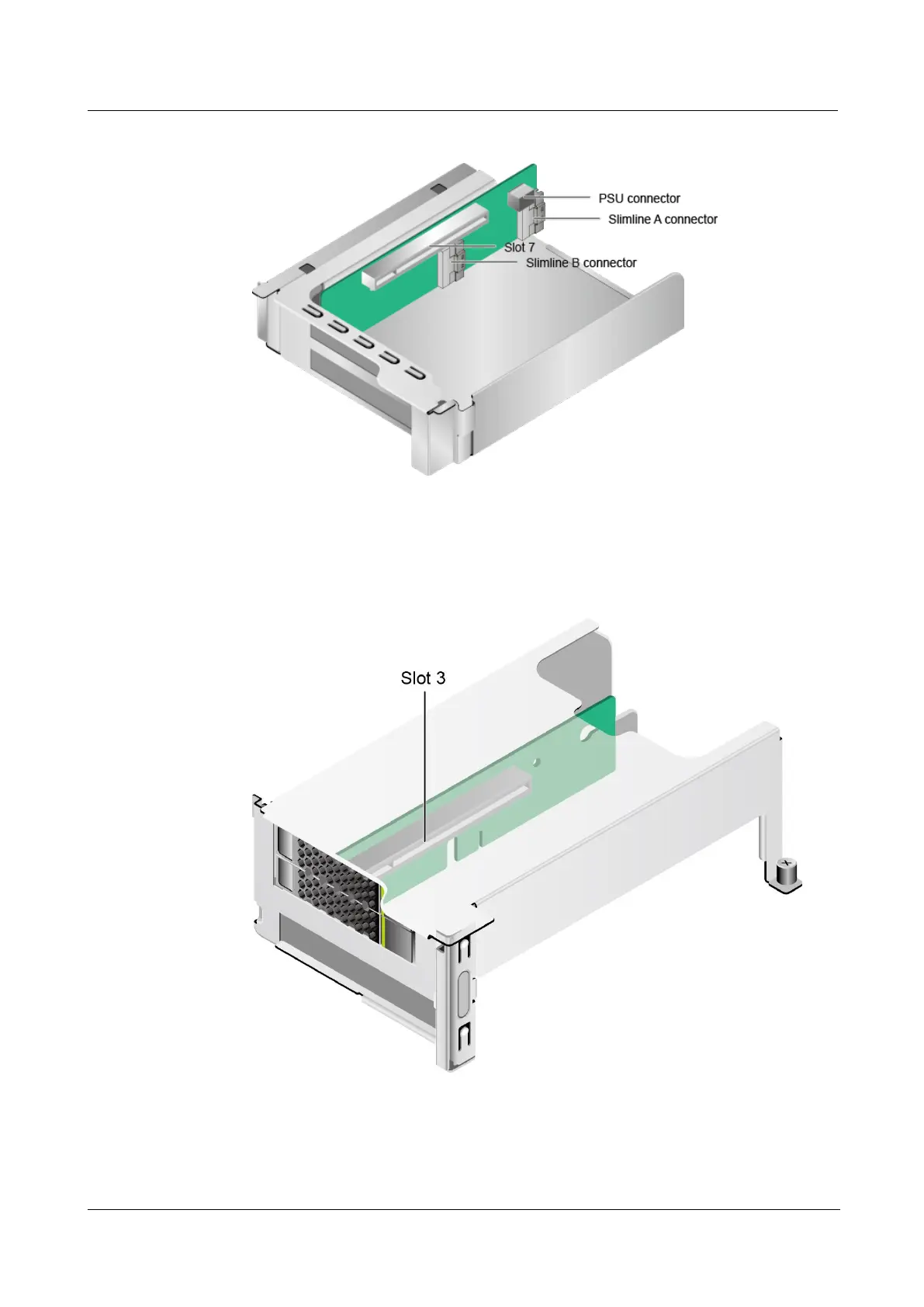

Figure 5-65 PCIe riser module 6
⚫
PCIe riser module 7 (rear drives and a PCIe Riser card)
Provides PCIe slot 3 when installed in I/O module 1.
Figure 5-66 PCIe riser module 7
