FusionServer 2288H V5 Server

Technical White Paper

5 Hardware Description

Issue 11 (2023-04-30)

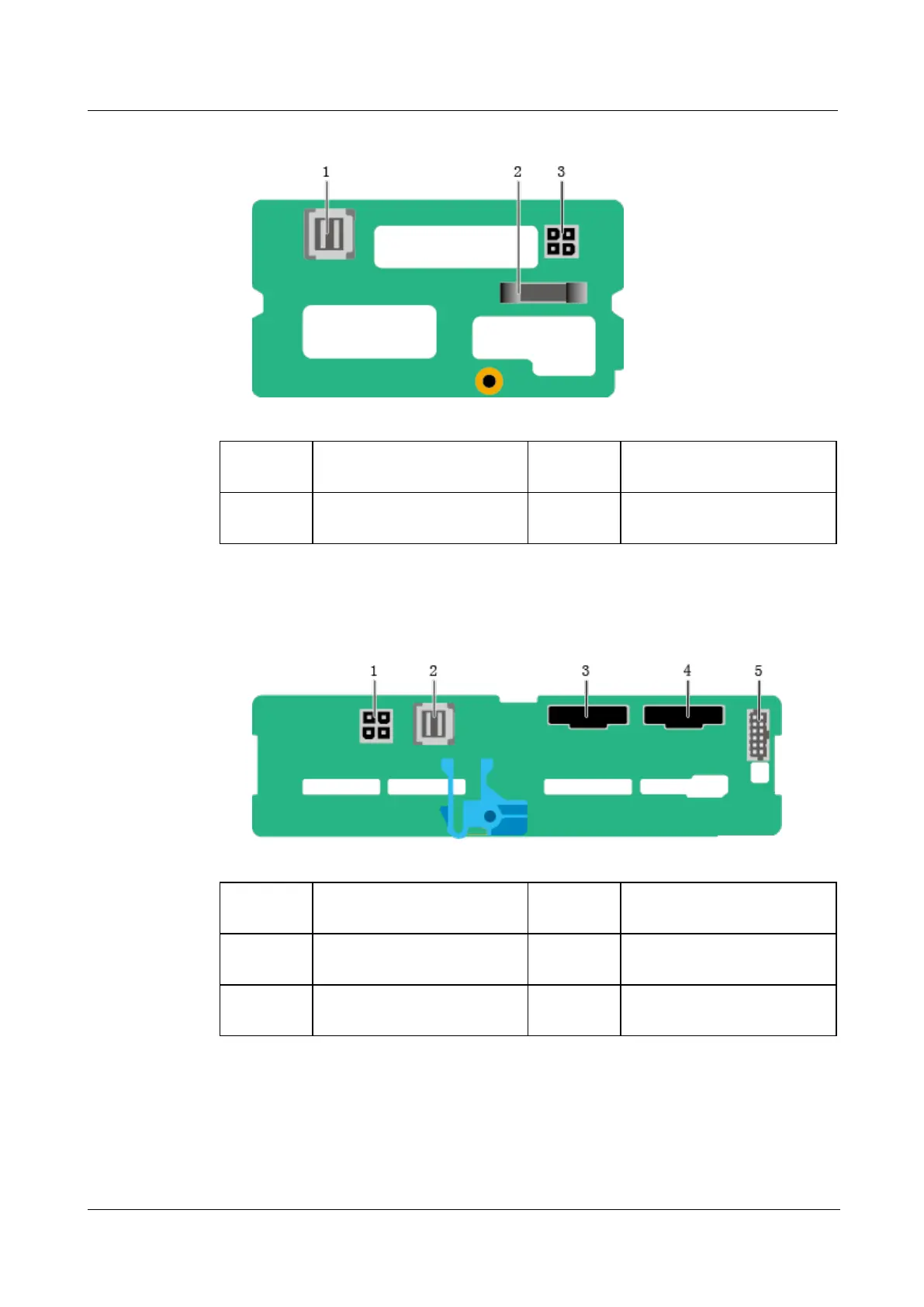

Figure 5-80 2 x 3.5" drive backplane (BOM: 03022HYE)

Mini-SAS HD connector

(REAR PORT/J3)

Indicator signal cable

connector (REAR BP/J24)

Power connector (BP

PWR/J1)

⚫

4 x 2.5" drive backplane

Figure 5-81 4 x 2.5" drive backplane (BOM: 03024BPV and 03029TDR)

Power connector (REAR

BP POWR3/J22)

Mini-SAS HD connector

(Port A/J2)

Slimline A connector

(SLIMLINE A/J8)

Slimline B connector

(SLIMLINE B/J9)

Backplane signal cable

connector (HDD BP/J23)
