FusionServer 2288H V5 Server
Technical White Paper
Copyright © xFusion Digital Technologies Co., Ltd.
NOTE
⚫

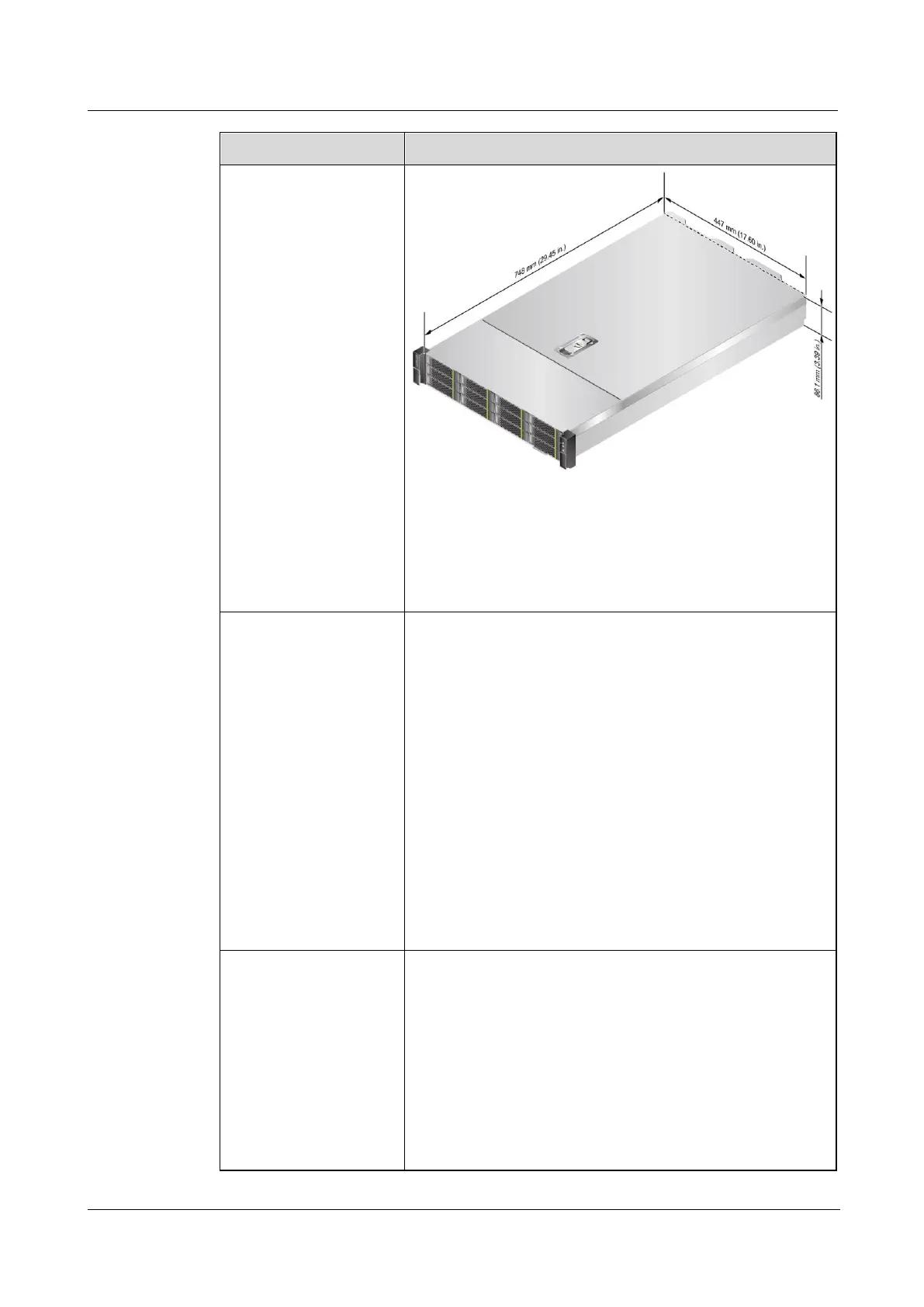

See Figure 6-1 for methods in measuring physical
dimensions of the chassis.
⚫
Methods measuring 3.5" and 2.5" drive chassis are the same.
The 3.5" drive chassis is used as an example.
Installation dimension
requirements
⚫
Requirements for cabinet installation:
19-inch standard cabinet compliant with the
International Electrotechnical Commission (IEC) 297
standard
− Cabinet width: 482.6 mm (19.00 in.)
− Cabinet depth ≥ 1000 mm (39.37 in.)
⚫
Requirements for guide rail installation:
− L-shaped guide rails: apply only to our company's
cabinets.
− Static rail kit: applies to cabinets with a distance of
543.5 mm to 848.5 mm (21.40 in. to 33.41 in.)
between the front and rear mounting bars.
− Ball bearing rail kit: applies to cabinets with a
distance of 610 mm to 914 mm (24.02 in. to 35.98
in.) between the front and rear mounting bars.
⚫
Net weight:
− Maximum weight for server with 8 x 2.5" front drives
+ 4 x 2.5" rear drives: 25.1 kg (55.34 lb)
− Maximum weight for server with 12 x 3.5" front
drives + 4 x 3.5" rear drives + 4 x 2.5" rear drives:
34.1 kg (75.18 lb)
− Maximum weight for server with 24 x 2.5" front
drives + 4 x 2.5" rear drives: 29.4 kg (64.82 lb)
− Maximum weight for server with 25 x 2.5" front
drives + 2 x 3.5" rear drives + 4 x 2.5" rear drives:
To Next Page
