the end points (explained in End Point Adjustment on page 33).
To set the exponentials:
1) Turn the transmitter on.
2) Press and hold the MODE button to access the programming mode.
3) Press either the MODE key OR the END key to scroll through the function menus.
Continue pressing the MODE or END key until the exponentials (EXPO) menu
appears on screen.

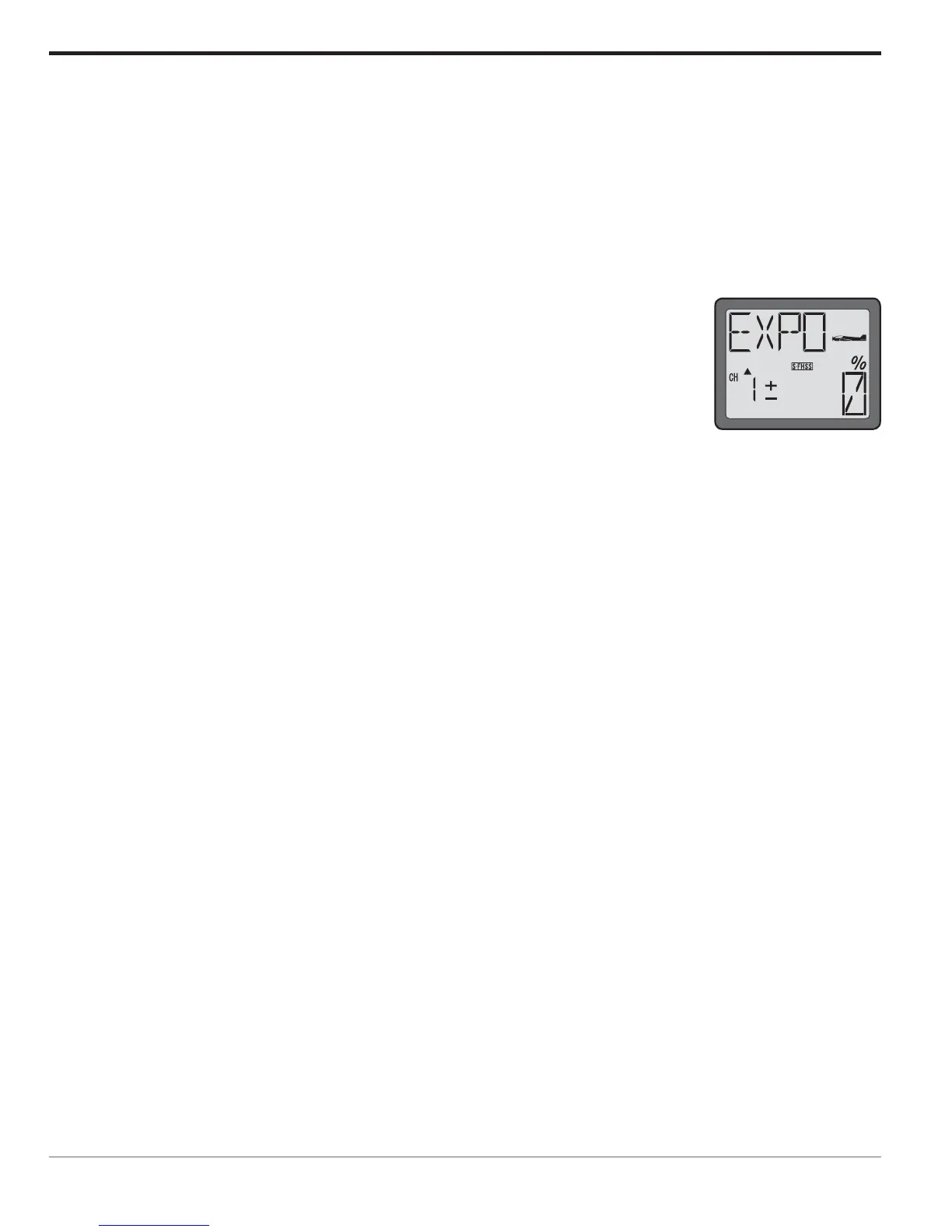

4) Press the SELECT key to choose the desired channel (1-aileron, 2-elevator, 4- rudder) and switch position.
The channel number appears on the left side of the screen. The switch position (up or down) is indicated by
the arrow above or below the channel indicator. The channel number appears on the left side of the screen.
5) Place the dual rate switch, selected previously, (which also serves as the exponential switch) in the desired
position on the left side of the LCD. If the arrow is pointing upward, the exponential is being adjusted for
the up position of the switch.
6) Change the exponential rate value for the respective channel using the DATA INPUT lever until the
7) Place the dual rate/exponential switch in the opposite position, adjust the rates accordingly.
8) Repeat the procedure for the remaining channels as desired.
9) Press and hold the END button to save these settings and exit the programming menu.
HELI Dual Rates/Exponential Information:
Dual Rates (HELI):
thus affecting the overall travel of the servo(s). Thus, decreasing the percentage value for a given servo will
reduce the travel amount of the channel respectively.
For example, if the rudder of the helicopter travels 1/2” at the high rate and maximum stick input, and a value
of 50% is input for the low rate, when the switch is moved to the low rate position, the servo moves exactly
maximum travel is now 1/4”
