percentage of rudder travel rates. The available adjustments are between -100% and
8) Once this mix has been activated, move the servos to their full extremes to make
certain they are not overdriving the controls. If necessary, adjust the linkages to
achieve the correct control throws.
Note: It is important to ensure that no binding occurs when providing full elevator and full rudder inputs.
This will maximize the inputs from both channels and provide you with the worst-case scenario.
9) Press and hold the END button to exit the programming menu.

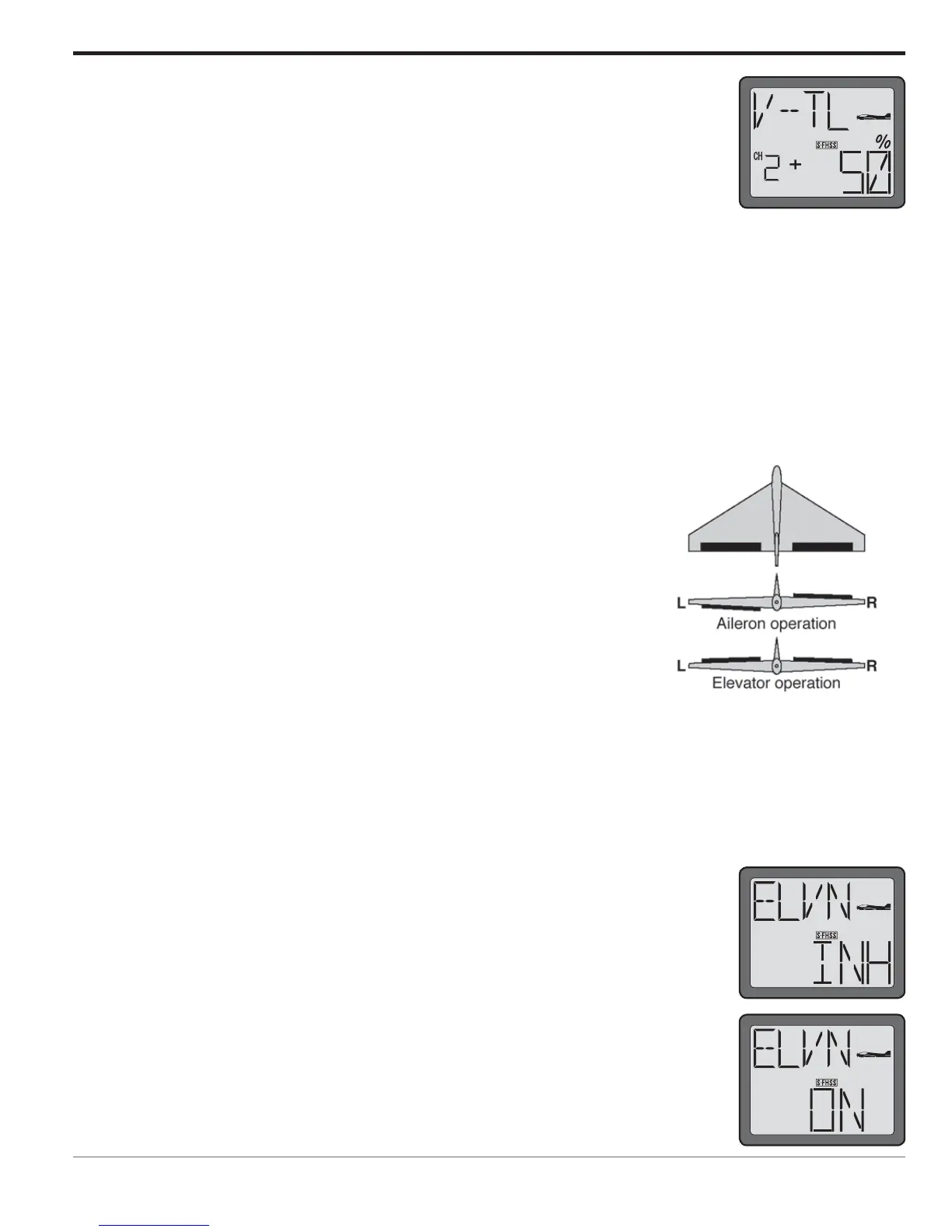

Elevon mixing (ELVN)- (ACRO only)
and flying wings, elevon mixing mixes channel 1 (aileron) to
channel 2 (elevator) allowing the elevons to operate in unison (as
elevators) or in opposition (as ailerons). This function requires
that each elevon be operated by a separate servo.
Note: The Elevon function can not be utilized when either the
activated, it will not be possible to activate the elevon mixing
function.
To activate elevon mixing:
1) Connect the servo in the right wing channel to channel 2 (elevator) in the receiver and connect the servo in
the left wing to channel 1 (aileron) in the receiver.
2) Turn the transmitter on.
3) Press and hold the MODE button to access the programming mode.
4) Press either the MODE key OR the END key to scroll through the function menus.
Continue pressing the MODE or END key until the elevon (ELVN) menu appears
on screen.
CH1
CH2
*If necessary, use the Servo Reversing
function to achieve the correct direction of
servo throws.
To Next Page
