14

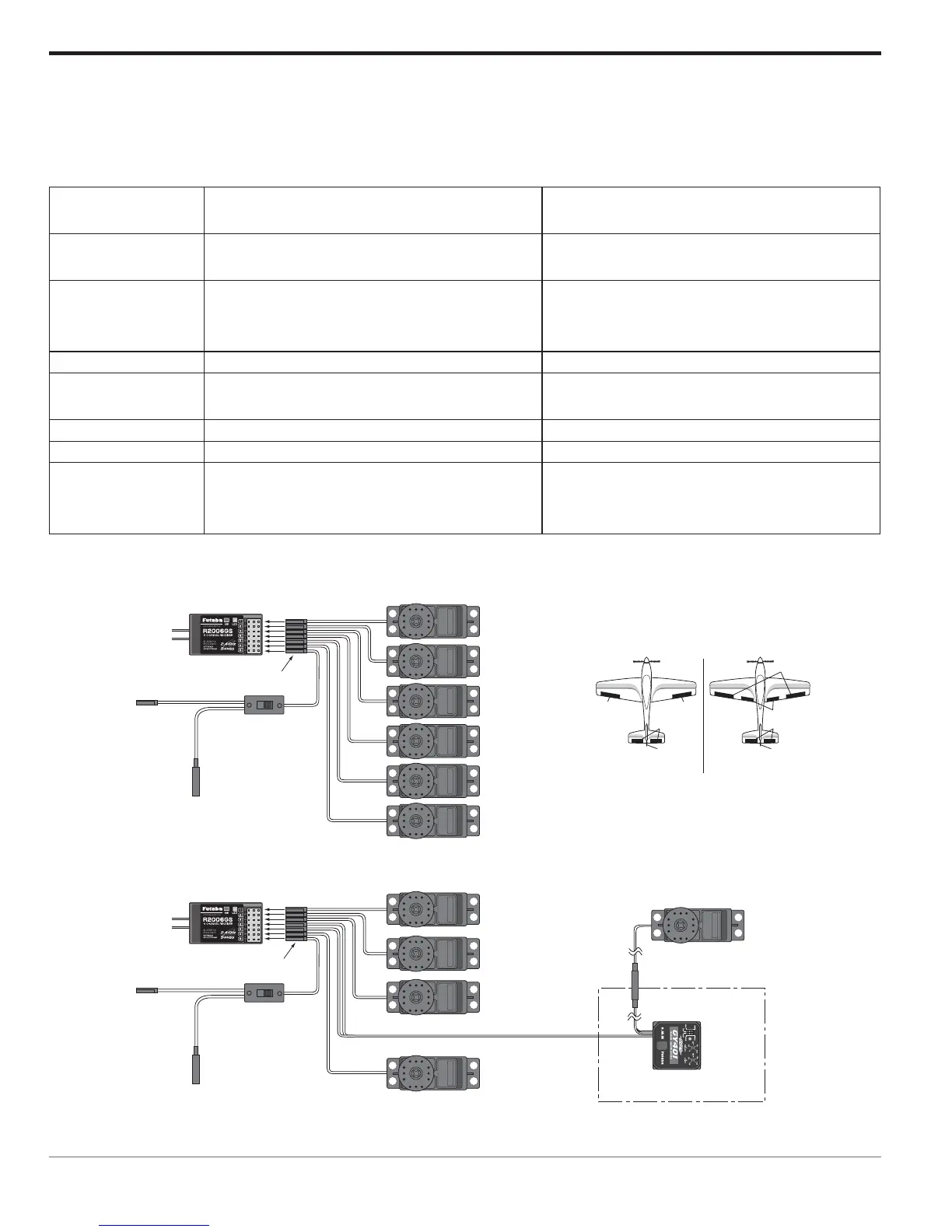

RECEIVER AND SERVO CONNECTIONS
Connect the servos to the receiver to perform the functions indicated:
Receiver
output channel
Aircraft (ACRO) Helicopter (HELI)
1
elevon (for tailless models)
Aileron
2
Elevator –or- left ruddervator (for
V-tail models) –or- left elevon (for
tailless models)
Elevator
3 Throttle Throttle
4
Rudder –or- right ruddervator (for
V-tail models)
Rudder
5 Retractable landing gear Gyro sensitivity
6 Pitch
B
Receiver on/off switch (the red
colored connector should be inserted
into the receiver)
Receiver on/off switch (the red
colored connector should be inserted
into the receiver)
Switch
Harness
To Battery
Charging
Jack
(Black)
Aileron Servo
(CH1)
Optional
Gyro
System
Elevator Servo
(CH2)
Throttle Servo
(CH3)
Rudder Servo
Rudder (CH4)
Pitch Servo
(CH6)
The diagram shown is for helicopter models only. It is necessary to buy an additional gyro separately.
Gyro sensitivity (CH5)
Receiver
Switch
Harness
To Battery
Charging
Jack
(Black)
Aileron Servo
(CH1)
Elevator Servo
(CH2)
Throttle Servo
(CH3)
Rudder Servo
(CH4)
Gear Servo
(CH5)
Flap Servo
(CH6)
The diagram shown is for aircraft models only. Additional servos may have to be purchased separately.
(CH1)
(CH6)
(CH1)
(CH2)
(CH4)
(CH2)
(CH4)
Flaperon Mode (Dual Aileron
Servo, CH1 & 6)
Independent Aileron & Flap
(CH6)
(Red)
(Red)
Receiver
NOTE: NEVER use dry battery for R606FS
as it cause malfunction.
NOTE: NEVER use dry battery for R606FS
as it cause malfunction.
To Next Page
