Mounting and Installation
www.gantner.com HB_GAT-SMARTLOCK7000--EN_10 17
3.2 Measurement Diagrams for the Installation
In this section you will find the measurement information for the hardware parts in the GAT SMART.Lock 7000 sys-
tem (lock, door shackle, etc.), and other important dimensions that must be considered during installation.
Please read and observe this important measurement information before planning and starting the installa-
tion.
3.2.1 Door Width
The minimum door width (measured from the door shackle to the hinge) is 230mm. If the door is narrower, the door
shackle will hit the locker body when the door is being closed.

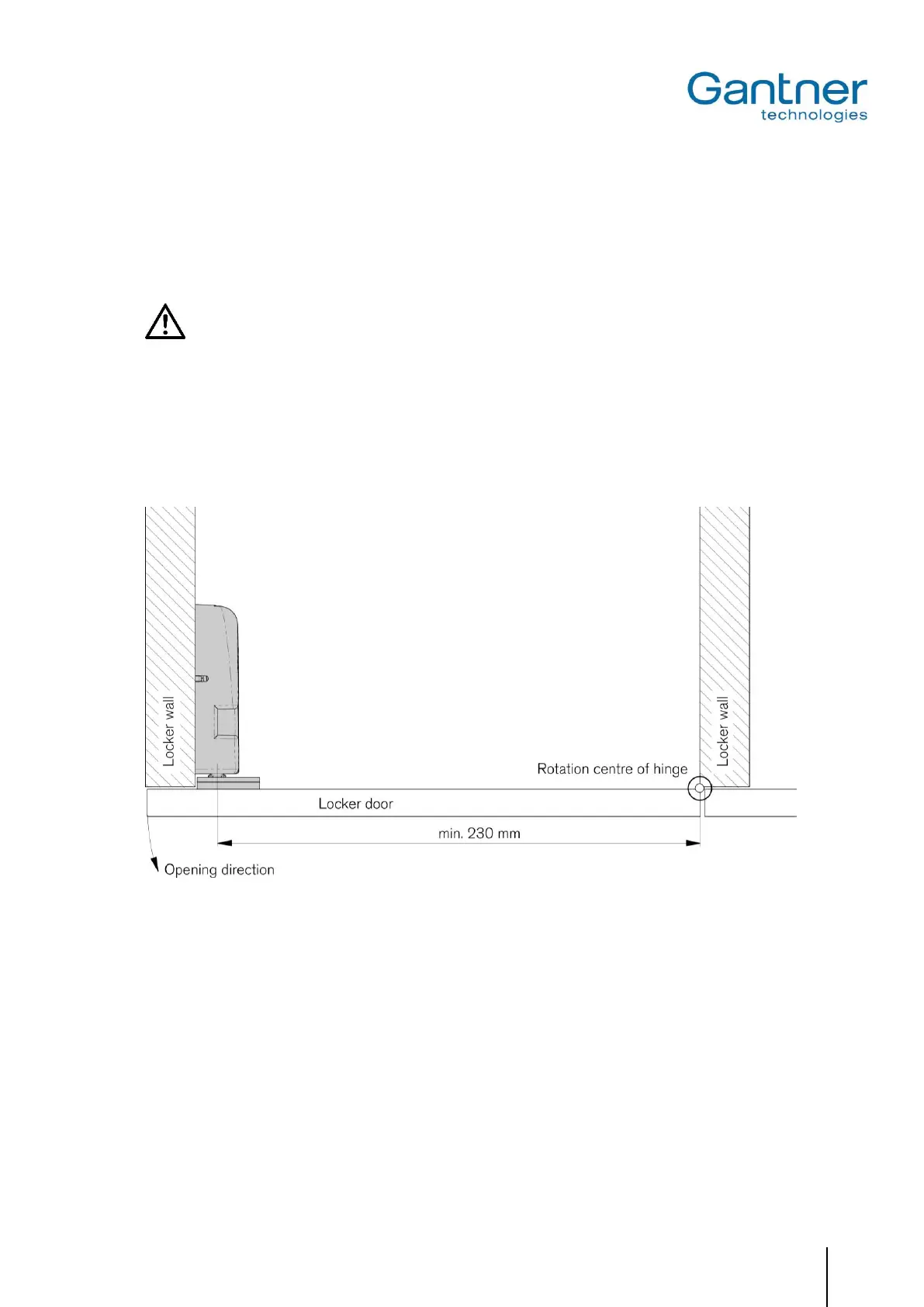

Figure 3.3 - Minimum door width
