GAT SMART.Lock 7000 System
Configuration
42 HB_GAT-SMARTLOCK7000--EN_10 www.gantner.com
5.2 Configuration of the MOXA COM Converter
The MOXA COM Converters are configured via the Ethernet interface. The configuration can be done either via the
NPort 5100 Administrator Suite software or via a web interface (using a web browser). The IP address of the MOXA
COM Converter can also be set using ARP Commands. The following configuration instructions describe the pro-
cess using NPort Administrator Suite 5100.
Note: The following instructions describe the general procedure for configuring the GAT 7000 SMART.Lock sys-
tem. For further information about the MOXA COM Converter and its configuration, please read the de-
tailed instructions included with every MOXA COM Converter.
 Start the NPort 5100 Administrator Suite.
 Click on “Search”.
○ The "Searching" window opens and lists all the MOXA COM Converter(s) found on the network.

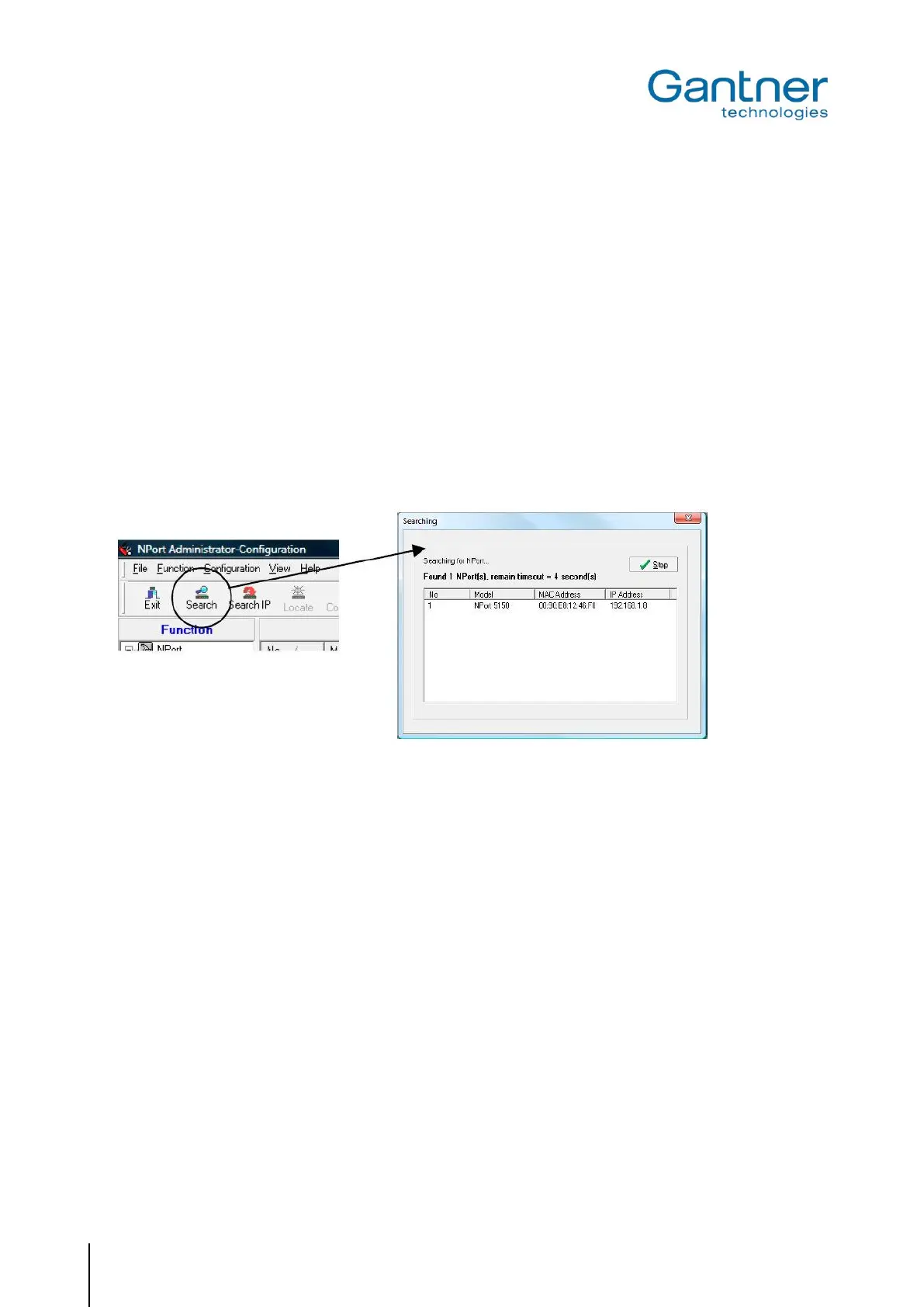

Figure 5.5- NPort 5100 Administrator Suite – Search of the MOXA COM converter
 Double-click on the applicable MOXA COM Converter.
○ The “Configuration” window is opened.
 Here the correct values for the Ethernet port of the MOXA COM Converter must be entered in the “Network”
tab.
○ Settings such as “Netmask”, and “Gateway”, etc., are specific and network dependant. Please contact
your IT administrator for these values.
