3.2.4 Important Measurements for the Installation
Please pay close attention to the following measurements:

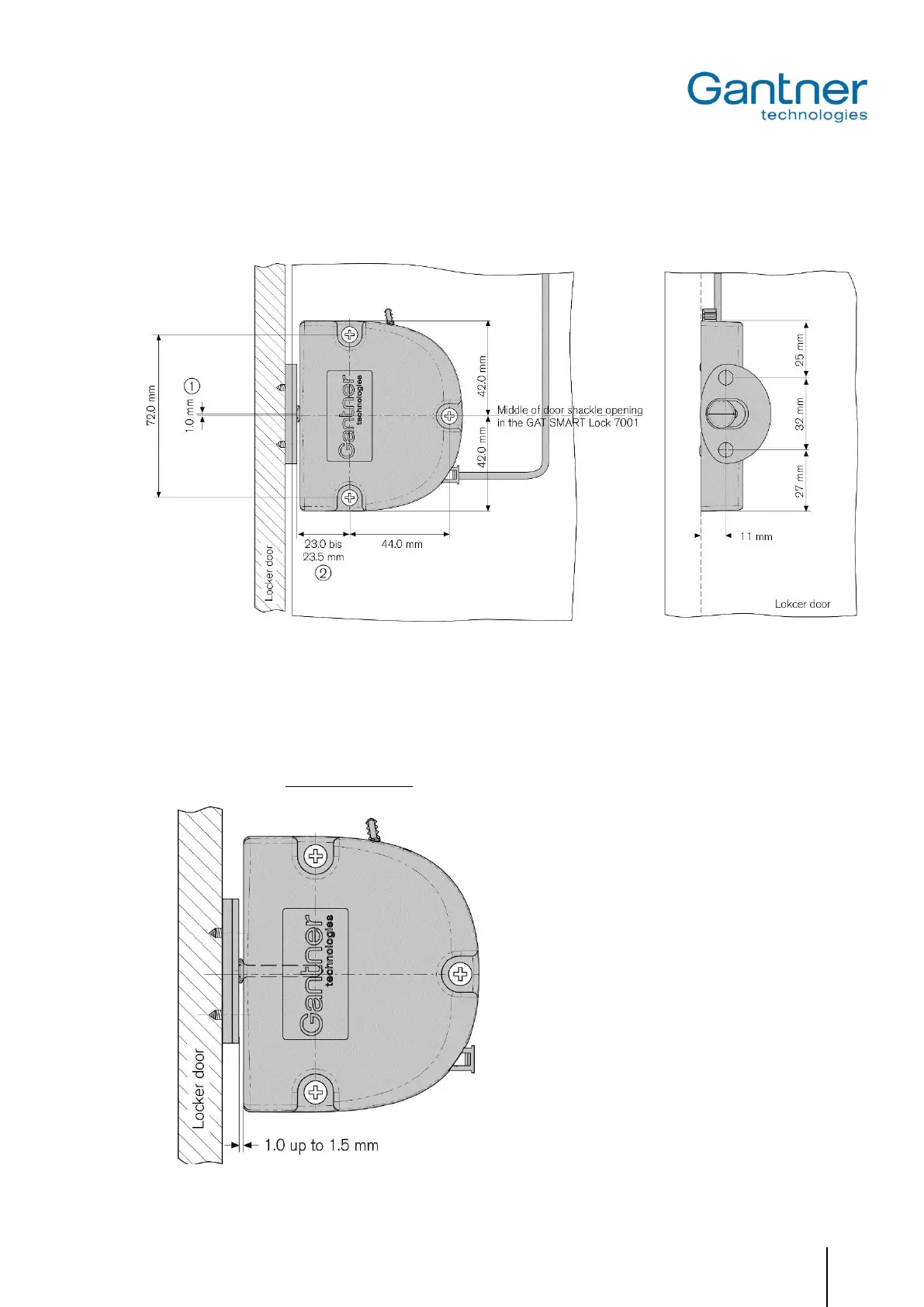

Figure 3.8 – Important measurements for the installation

: The centre of the door shackle must be 1 mm higher than the centre of the door shackle opening of the GAT
SMART.Lock 7001. This enables the door to close correctly, even when the door’s position adjusts within the
tolerance range of maximum 3.5 mm downwards or 1.5 mm upwards (tolerance ±2.5 mm).

: The distance between the front surface of the GAT SMART.Lock 7001 and the distance plate must be 1 to
1.5mm when the locker door is closed.
Figure 3.9 - Distance between the front surface of the lock and the distance plate
