Gantner GAT SMART.Lock 7000 System User Manual

GAT SMART.Lock 7000 System
Mounting and Installation
18 HB_GAT-SMARTLOCK7000--EN_10 www.gantner.com
3.2.2 GAT SMART.Lock 7001 Housing
For the length and diameter of the screws required
for installation, observe the length and diameter of
the mounting holes shown in Figure 3.4.

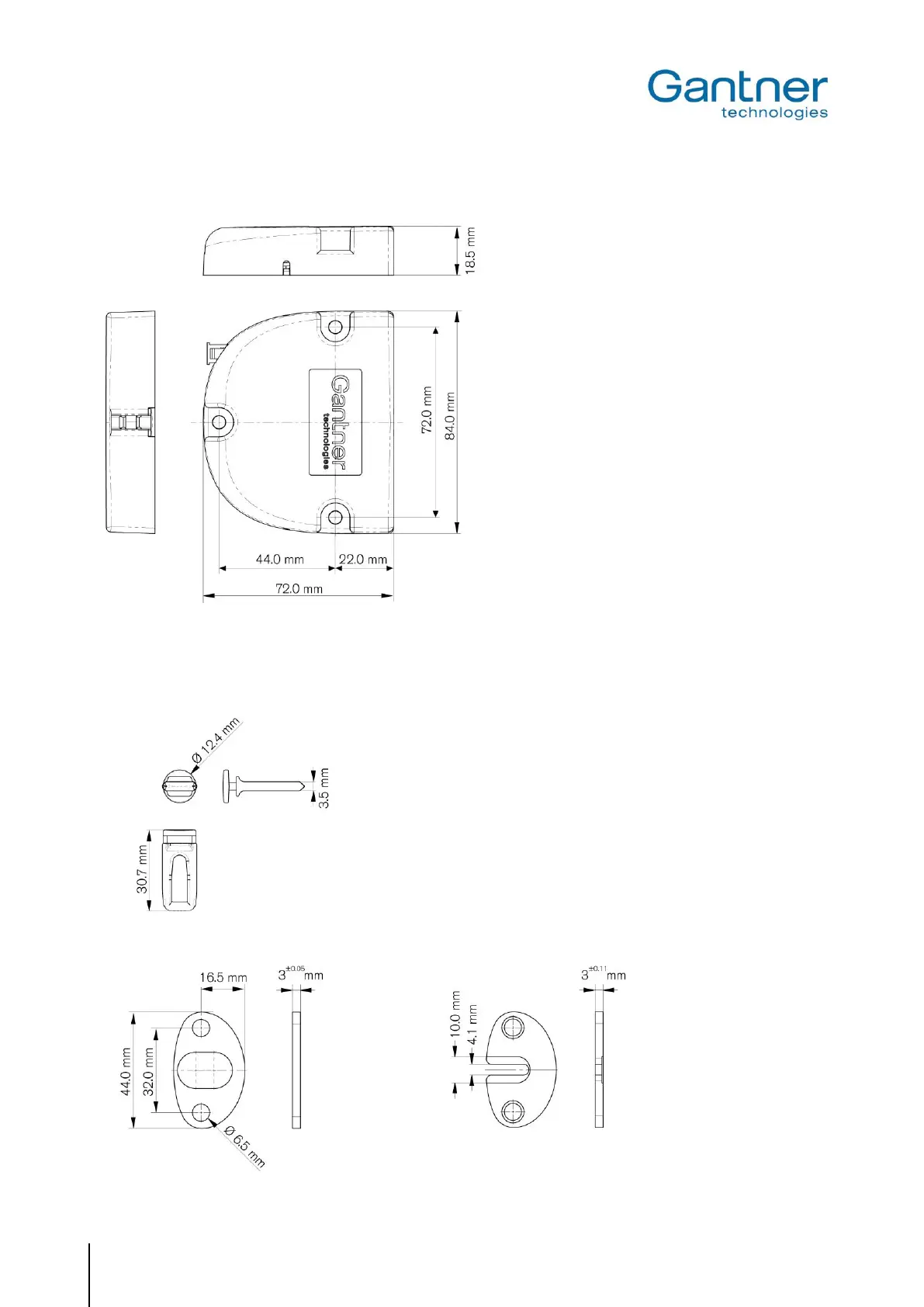

Figure 3.4 - GAT SMART.Lock 7001
3.2.3 Door Shackle and Mounting Plate
Figure 3.5 - Dimensions of the door shackle
Figure 3.6 - Dimensions of the door plate Figure 3.7 - Dimensions of the distance plate
