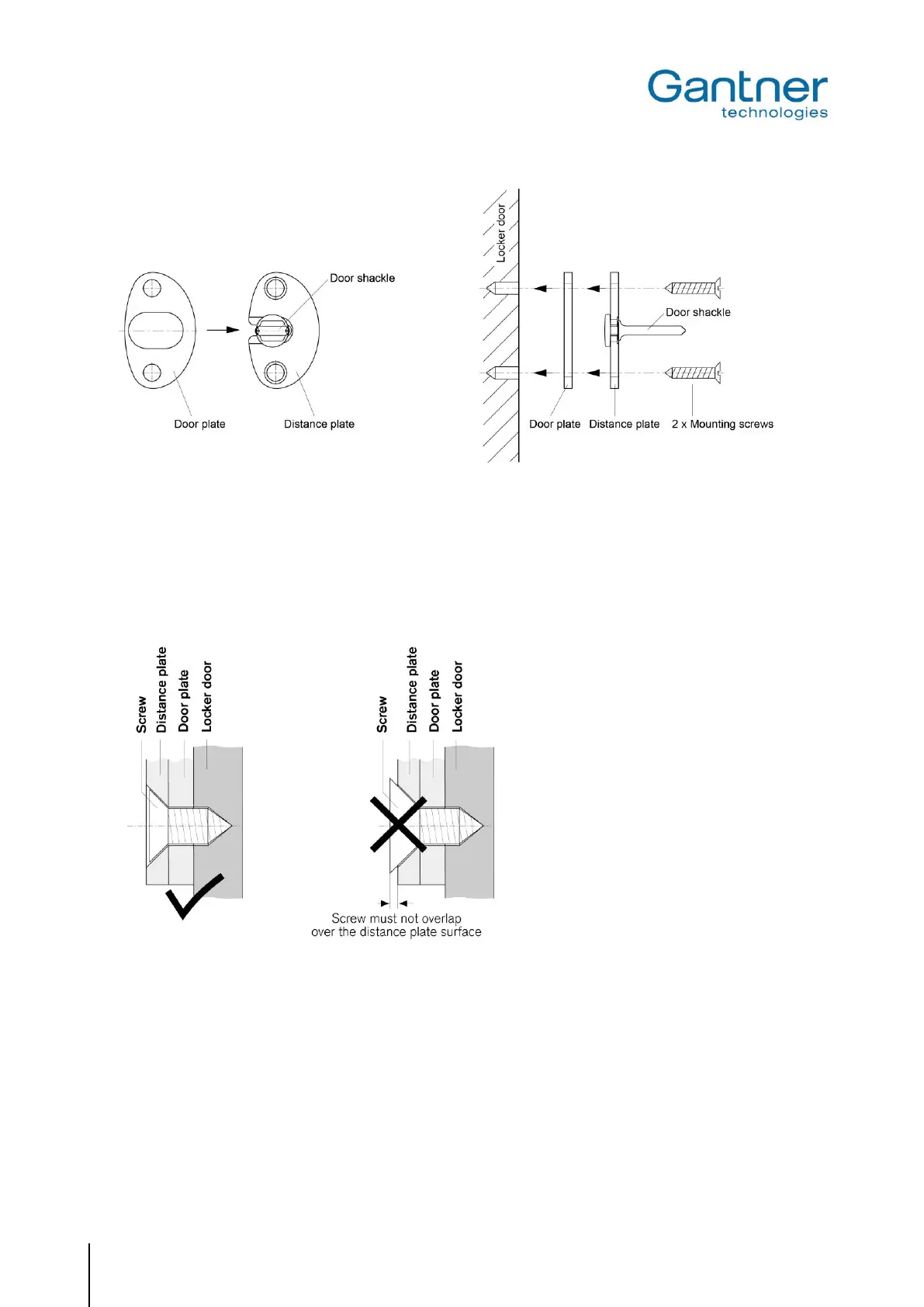

Figure 3.13 - Mounting with a door plate
 Select suitable screws according to the type and thickness of the door. In assembled state, the door bolt must
guarantee a tensile force of 2000 N.
Note: When fastening the door plate and the distance plate, make sure that the heads of the screws sit com-
pletely flush in the distance plate. Select the length of the screws accordingly so they do not protrude
above the distance plate seating.
Figure 3.14 - Detailed drawing of screws for door shackle
