GAT SMART.Lock 7000 System
Electrical Connection
30
HB_GAT-SMARTLOCK7000--EN_10
www.gantner.com
Attention: The maximum cable length, when the power supply is transmitted from a master or slave controller to
subsequent controllers, is 200 metres.

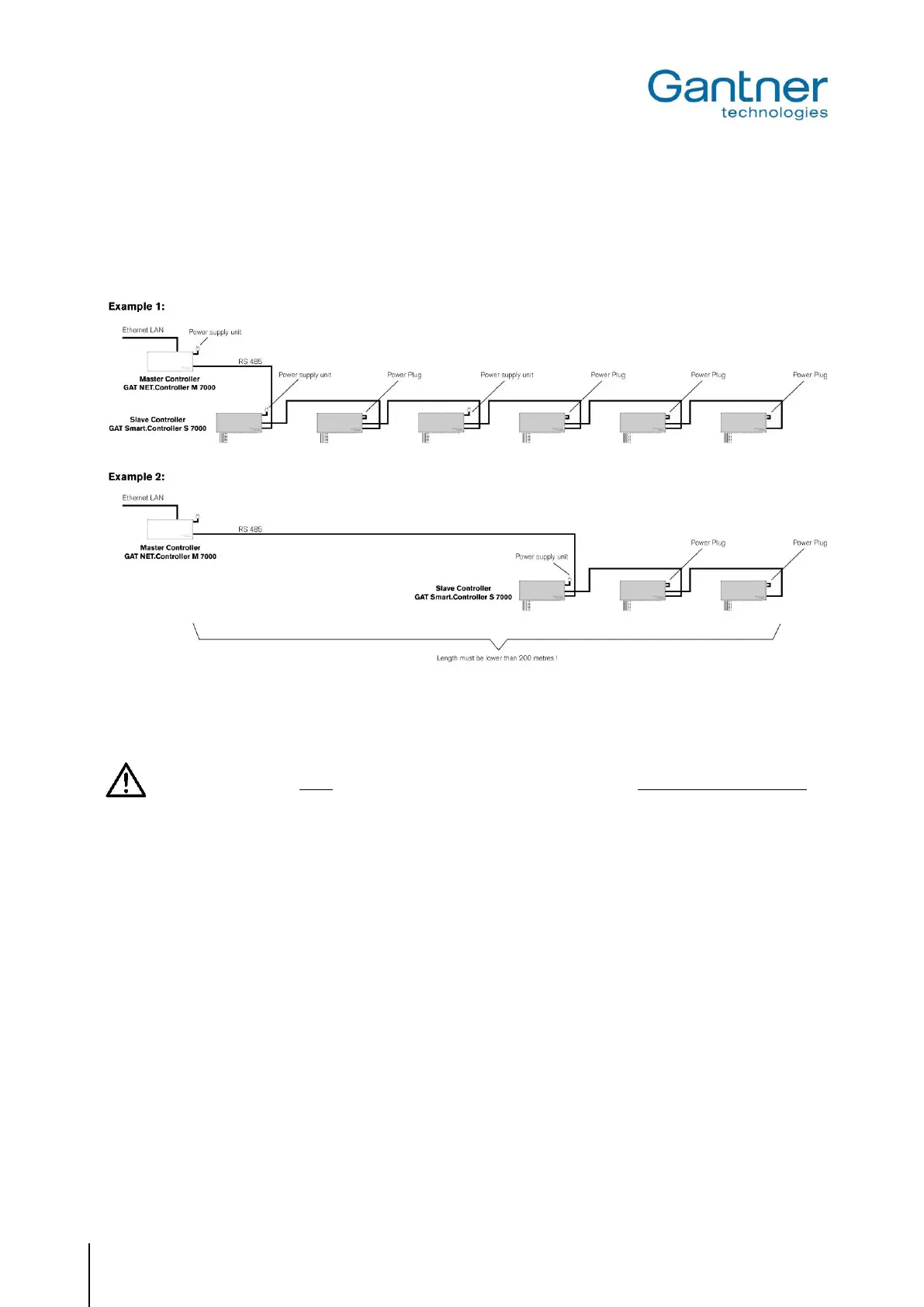

Figure 4.9 ā Examples of power supply
If a GAT NET.Controller M 7000 master controller or a GAT SMART.LockAxx 6350 central reader is not
used in the system, every GAT SMART.Controller S 7000 slave controller must be directly connected to
a power supply.
