Y58 User Manual & Install Guide
143 of 148
9.3 Detailed Cabling Diagrams
9.3.1 Fuse Connections

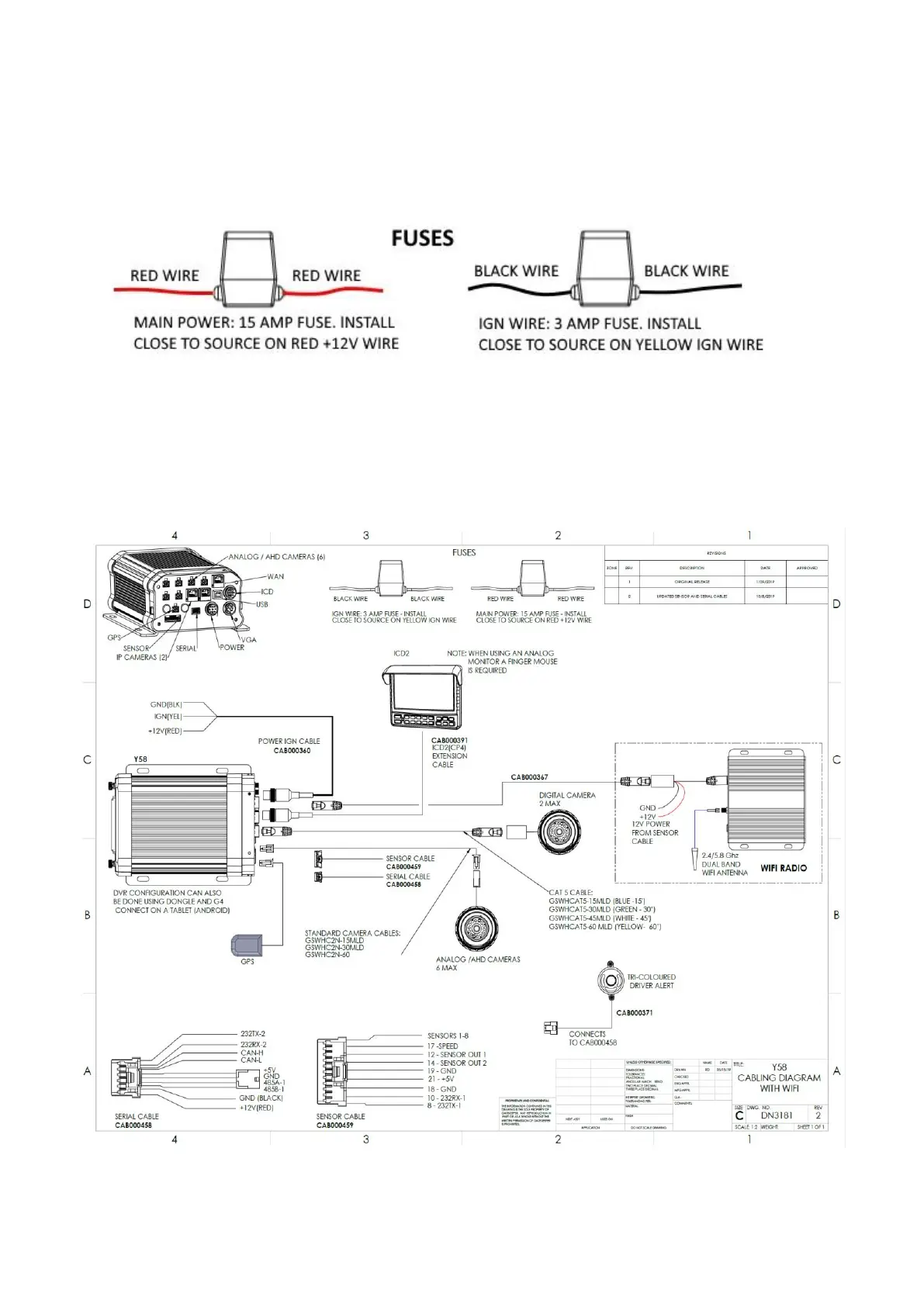

Figure 9-1 Y58 Fuse Connections
9.3.2 Cabling Diagrams
Please refer to the following pages with detailed cabling diagrams for the different installation
configurations of the Y58.
Figure 9-2: Y58 Wiring with MWM (Mobile Wireless Module)
