GE Interlogix Concord Security System User Manual

Concord 20
Note
To prevent status voice mes-
sages from being broadcast
outside, do not connect
exterior speakers to Phone
Interface/Voice module ter-
minals 6 and 7.
Wiring—Speaker (Status Voice Messages Only)
Connect an interior speaker to the Phone Interface/Voice module terminals as shown in
Figure 21. When connected as shown, the speaker only produces status voice messages. In an
alarm situation the speaker will announce voice status messages.
Wiring—Speaker (Status and Alarm Messages)
Make the following connection only if the Phone Interface/Voice module is being installed in
Partition 1 and alarm sounds are desired from the speaker connected to the terminals as shown in
Figure 21. In an alarm situation, the speaker will alternate between alarm siren tones and voice
status messages.

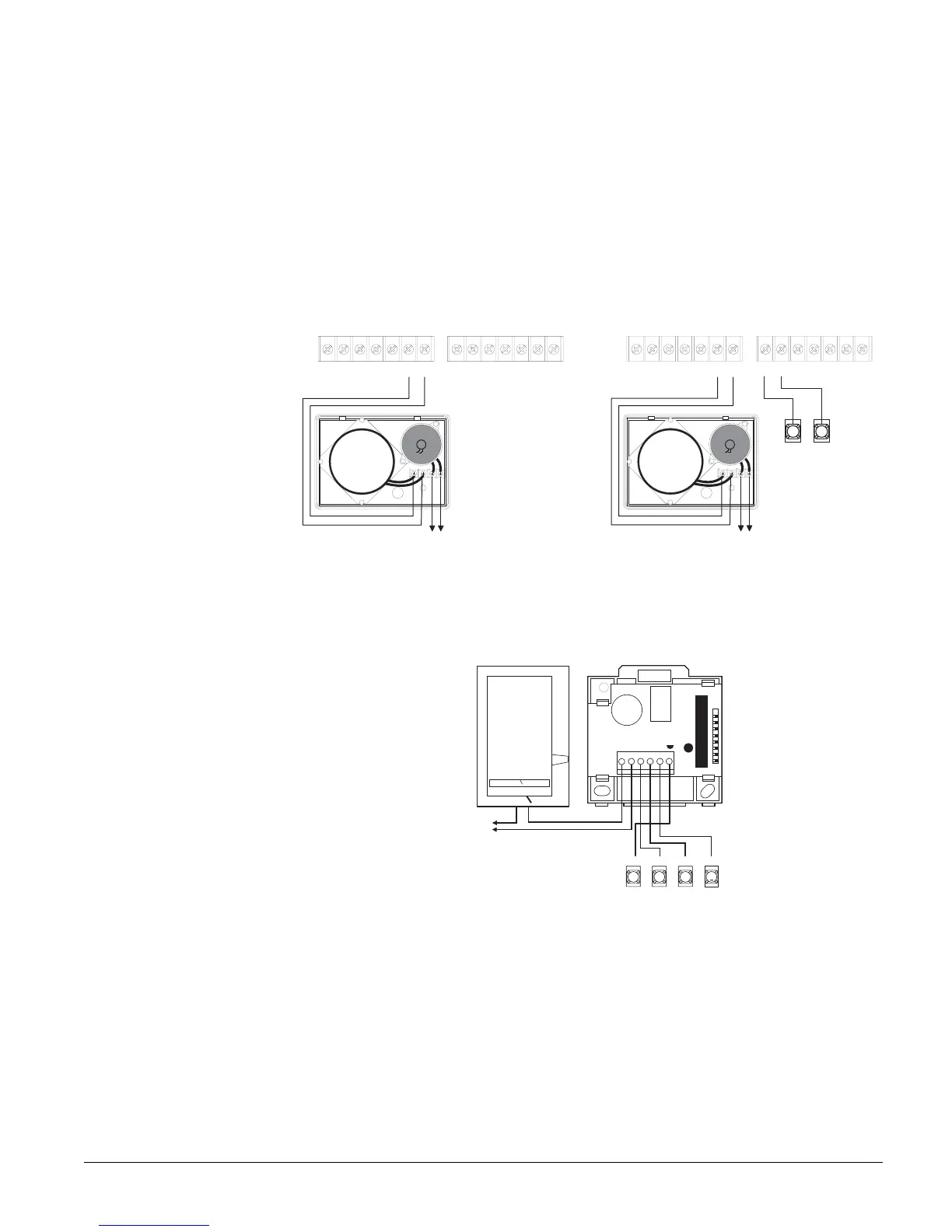

Figure 21. Status and Alarm Messages
SuperBus 2000 Energy Saver Module (60-620-01)
Connect the Energy Saver Module to the panel and premises thermostat as shown in Figure 22.
Figure 22. Connecting the Energy Saver Module
SuperBus 2000 8Z Input Module (60-774)
Connect the SuperBus 2000 8Z Input Module to the panel as shown in Figure 23.
Connect all necessary input wiring using the Installation Instructions included with module.
SuperBus 2000 4-Relay Output Module (60-770)
Connect the SuperBus 2000 4-Relay Output Module to the panel as shown in Figure 23.
Connect all necessary output wiring using the Installation Instructions included with the module.
6 0 7 3 4 g 3 0 4 d . d s
f
1
+ 1 2 V
2
A
3
B
4
G N D
5
G N D
6
S P K 1
7
S P K 2
8
A U D 1
9
A U D 2
1 0
G N D
1 1
T I P 1
1 2
T I P 2
1 3
R I N G
2
1 4
R I N G
1
Phone Interface/Voice
Module Terminal Strip 1
Phone Interface/Voice
Module Terminal Strip 2
Hardwire Interior
Speaker (60-528)
Not Used
6 0 7 3 4 1 3 0 D D S F
1
+ 1 2 V
2
A
3
B
4
G N D
5
G N D
6
S P K 1
7
S P K 2
8
A U D 1
9
A U D 2
1 0
G N D
1 1
T I P 1
1 2
T I P 2
1 3
R I N G
2
1 4
R I N G
1
7
8
Not Used
Hardwire Interior
Speaker (60-528)
Phone Interface/Voice
Module Terminal Strip 1 Module Terminal Strip 2
Phone Interface/Voice
Panel
Terminals
Speaker
Status
Status and Alarm
8573G98A.DSF
3 4 5
6
1
23456
PANEL
TERMINALS
HEAT
OFF
A/C
50 60 70 80 90
THERMOSTAT
TO
HVAC
ENERGY SAVER MODULE
+12V
A
B
GND
BUS
