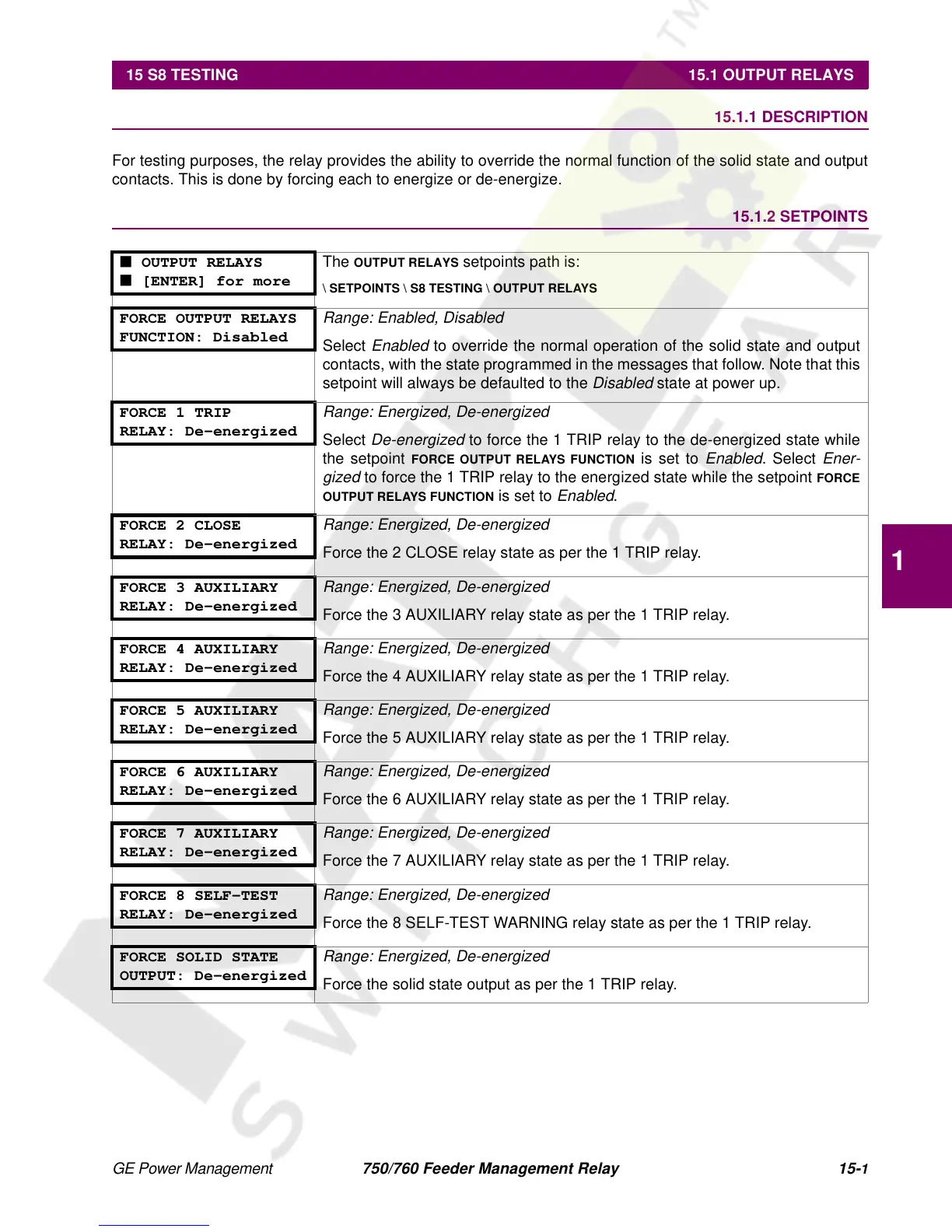

15 S8 TESTING 15.1 OUTPUT RELAYS
15
15 S8 TESTING 15.1 OUTPUT RELAYS 15.1.1 DESCRIPTION
For testing purposes, the relay provides the ability to override the normal function of the solid state and output
contacts. This is done by forcing each to energize or de-energize.
15.1.2 SETPOINTS
■ OUTPUT RELAYS
■ [ENTER] for more
The
OUTPUT RELAYS
setpoints path is:
\ SETPOINTS \ S8 TESTING \ OUTPUT RELAYS
FORCE OUTPUT RELAYS
FUNCTION: Disabled
Range: Enabled, Disabled
Select
Enabled
to override the normal operation of the solid state and output
contacts, with the state programmed in the messages that follow. Note that this
setpoint will always be defaulted to the
Disabled
state at power up.
FORCE 1 TRIP
RELAY: De-energized
Range: Energized, De-energized
Select
De-energized
to force the 1 TRIP relay to the de-energized state while
the setpoint
FORCE OUTPUT RELAYS FUNCTION
is set to
Enabled
. Select
Ener-
gized
to force the 1 TRIP relay to the energized state while the setpoint
FORCE
OUTPUT RELAYS FUNCTION
is set to
Enabled
.
FORCE 2 CLOSE
RELAY: De-energized
Range: Energized, De-energized
Force the 2 CLOSE relay state as per the 1 TRIP relay.
FORCE 3 AUXILIARY
RELAY: De-energized
Range: Energized, De-energized
Force the 3 AUXILIARY relay state as per the 1 TRIP relay.
FORCE 4 AUXILIARY
RELAY: De-energized
Range: Energized, De-energized
Force the 4 AUXILIARY relay state as per the 1 TRIP relay.
FORCE 5 AUXILIARY
RELAY: De-energized
Range: Energized, De-energized
Force the 5 AUXILIARY relay state as per the 1 TRIP relay.
FORCE 6 AUXILIARY
RELAY: De-energized
Range: Energized, De-energized
Force the 6 AUXILIARY relay state as per the 1 TRIP relay.
FORCE 7 AUXILIARY
RELAY: De-energized
Range: Energized, De-energized
Force the 7 AUXILIARY relay state as per the 1 TRIP relay.
FORCE 8 SELF-TEST
RELAY: De-energized
Range: Energized, De-energized
Force the 8 SELF-TEST WARNING relay state as per the 1 TRIP relay.
FORCE SOLID STATE
OUTPUT: De-energized
Range: Energized, De-energized
Force the solid state output as per the 1 TRIP relay.
