750/760 Feeder Management Relay GE Power Management

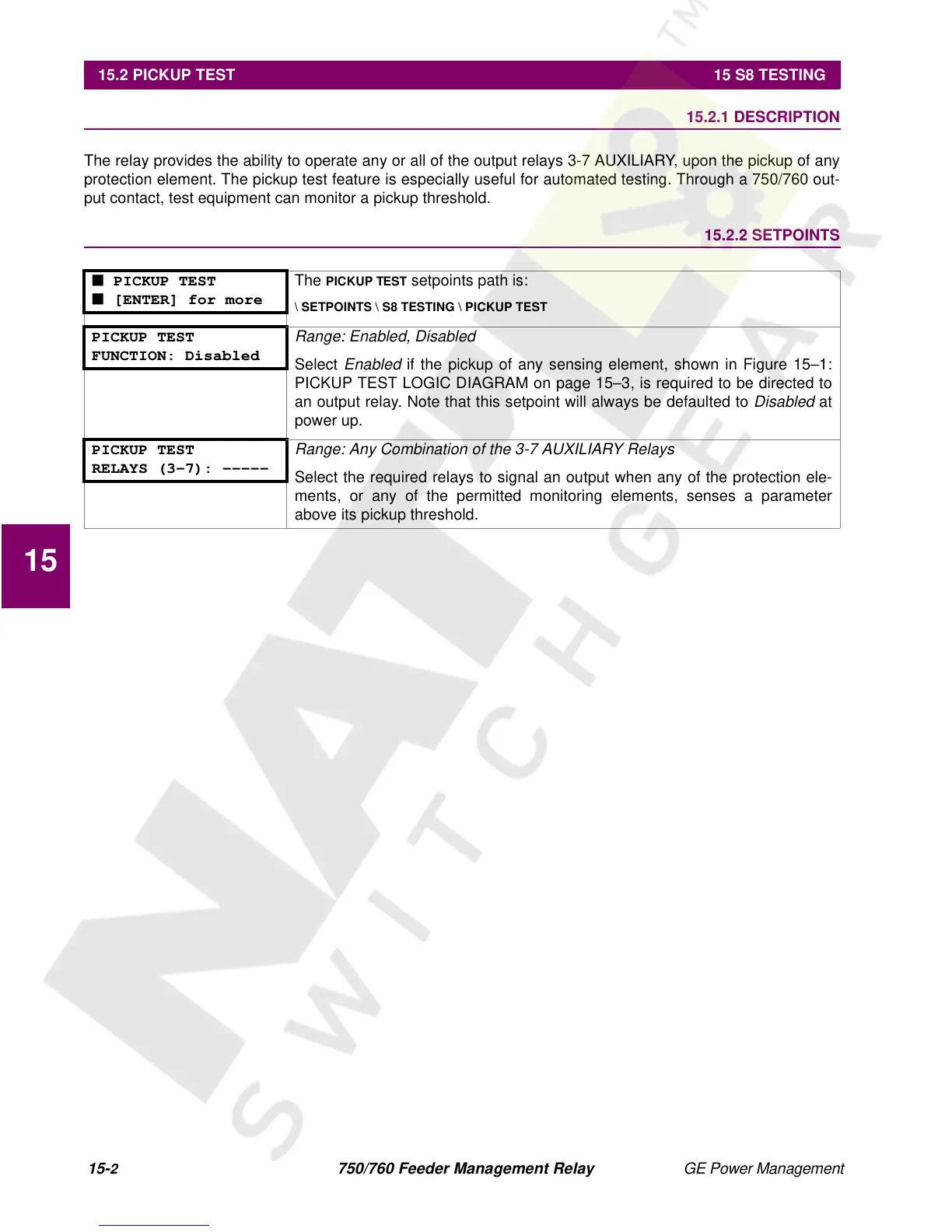

15.2 PICKUP TEST 15 S8 TESTING
15
15.2 PICKUP TEST 15.2.1 DESCRIPTION
The relay provides the ability to operate any or all of the output relays 3-7 AUXILIARY, upon the pickup of any
protection element. The pickup test feature is especially useful for automated testing. Through a 750/760 out-
put contact, test equipment can monitor a pickup threshold.
15.2.2 SETPOINTS
■ PICKUP TEST
■ [ENTER] for more
The
PICKUP TEST
setpoints path is:
\ SETPOINTS \ S8 TESTING \ PICKUP TEST
PICKUP TEST
FUNCTION: Disabled
Range: Enabled, Disabled
Select
Enabled
if the pickup of any sensing element, shown in Figure 15–1:
PICKUP TEST LOGIC DIAGRAM on page 15–3, is required to be directed to
an output relay. Note that this setpoint will always be defaulted to
Disabled
at
power up.
PICKUP TEST
RELAYS (3-7): -----
Range: Any Combination of the 3-7 AUXILIARY Relays
Select the required relays to signal an output when any of the protection ele-
ments, or any of the permitted monitoring elements, senses a parameter
above its pickup threshold.
