750/760 Feeder Management Relay GE Power Management
16.4 MODBUS MEMORY MAP 16 COMMUNICATIONS
16
0346 Maximum Phase B Current Date (2 words) --- --- F23 ---
0348 Maximum Phase B Current Time (2 words) --- --- F22 ---
034A Maximum Phase C Current Demand 0 to 65535 A F1 ---
034B Maximum Phase C Current Date (2 words) --- --- F23 ---
034D Maximum Phase C Current Time (2 words) --- --- F22 ---
034F
2
Maximum Real Power Demand -30000 to 30000 kW F86 ---
0350 Maximum Real Power Date (2 words) --- --- F23 ---
0352 Maximum Real Power Time (2 words) --- --- F22 ---
0354
2
Maximum Reactive Power Demand -30000 to 30000 kvar F86 ---
0355 Maximum Reactive Power Date (2 words) --- --- F23 ---
0357 Maximum Reactive Power Time (2 words) --- --- F22 ---
0359
2
Maximum Apparent Power Demand 0 to 30000 kVA F86 ---
035A Maximum Apparent Power Date (2 words) --- --- F23 ---
035C Maximum Apparent Power Time (2 words) --- --- F22 ---
035E Demand Data Last Reset (2 words) --- --- F23 ---
A2 1
φ
POWER READ ONLY
0360
1
φA Real Power -30000 to 30000 kW F86 ---
0361
1
φA Reactive Power -30000 to 30000 kvar F86 ---
0362
1
φA Apparent Power 0 to 30000 kVA F86 ---
0363
1
φA Power Factor -0.99 to +1.00 --- F6 ---
0364
1
φB Real Power -30000 to 30000 kW F86 ---
0365
1
φB Reactive Power -30000 to 30000 kvar F86 ---
0366
1
φB Apparent Power 0 to 30000 kVA F86 ---
0367
1
φB Power Factor -0.99 to +1.00 --- F6 ---
0368
1
φC Real Power -30000 to 30000 kW F86 ---
0369
1
φC Reactive Power -30000 to 30000 kvar F86 ---
036A
1
φC Apparent Power 0 to 30000 kVA F86 ---
036B
1
φC Power Factor -0.99 to +1.00 --- F6 ---
A2 ANALOG INPUT READ ONLY
0370 Analog Input 0 to 65535 Units F1 ---
0371 Analog Input Fast Rate of Change --- Units / min. F5 ---
0372 Analog Input Slow Rate of Change --- Units / hr. F5 ---
A3 TRIP COUNTERS READ ONLY
0380 Breaker Trips 0 to 65535 --- F1 ---
0381 Ground Overcurrent Trips 0 to 65535 --- F1 ---

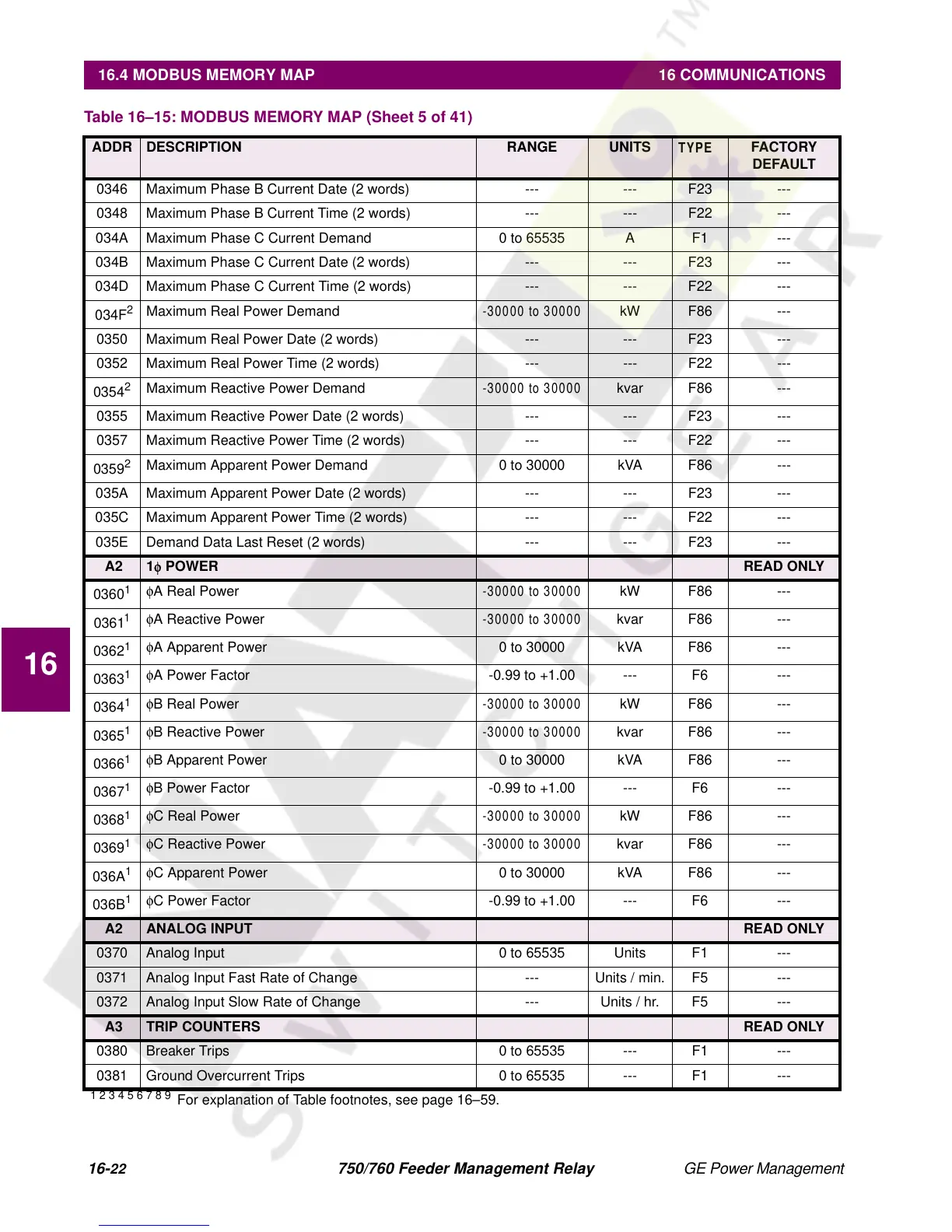

Table 16–15: MODBUS MEMORY MAP (Sheet 5 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
