GE Power Management 750/760 Feeder Management Relay 16-
23
16 COMMUNICATIONS 16.4 MODBUS MEMORY MAP
16
0382 Neutral Overcurrent Trips 0 to 65535 --- F1 ---
0383 One Phase Overcurrent Trips 0 to 65535 --- F1 ---
0384 Two Phase Overcurrent Trips 0 to 65535 --- F1 ---
0385 Three Phase Overcurrent Trips 0 to 65535 --- F1 ---
0386 Trip Counters Last Reset Date (2 words) --- --- F23 ---
0388 Negative Sequence Overcurrent Trips 0 to 65535 --- F1 ---
0389
3
Sensitive Ground Overcurrent Trips 0 to 65535 --- F1 ---
A3 TOTAL ARCING CURRENT READ ONLY
03A0 Total Arcing Current Phase A 0 to 65535
kA
2
cyc
F1 ---
03A1 Total Arcing Current Phase B 0 to 65535
kA
2
cyc
F1 ---
03A2 Total Arcing Current Phase C 0 to 65535
kA
2
cyc
F1 ---
03A3 Total Arcing Current Last Reset (2 words) --- --- F23 ---
A1 FAULT LOCATION 1 READ ONLY
03B0 Date of Fault (2 words) --- --- F23 ---
03B2 Time of Fault (2 words) --- --- F22 ---
03B4 Type of Fault --- --- F76 ---
03B5 Distance to Fault
-327.68 to 327.67
km, mi F52 ---
03B6 Line Z1 to Fault (magnitude) 0.00 to 655.35 Ω F53 ---
A1 FAULT LOCATION 2 READ ONLY
03B8 Date of Fault (2 words) --- --- F23 ---
03BA Time of Fault (2 words) --- --- F22 ---
03BC Type of Fault --- --- F76 ---
03BD Distance to Fault
-327.68 to 327.67
km F52 ---
03BE Line Z1 to Fault (magnitude) 0.00 to 655.35 Ω F53 ---
A1 FAULT LOCATION 3 READ ONLY
03C0 Date of Fault (2 words) --- --- F23 ---
03C2 Time of Fault (2 words) --- --- F22 ---
03C4 Type of Fault --- --- F76 ---
03C5 Distance to Fault
-327.68 to 327.67
km F52 ---
03C6 Line Z1 to Fault (magnitude) 0.00 to 655.35 Ω F53 ---
A1 FAULT LOCATION 4 READ ONLY
03C8 Date of Fault (2 words) --- --- F23 ---
03CA Time of Fault (2 words) --- --- F22 ---
03CC Type of Fault --- --- F76 ---
03CD Distance to Fault
-327.68 to 327.67
km F52 ---
03CE Line Z1 to Fault (magnitude) 0.00 to 655.35 Ω F53 ---

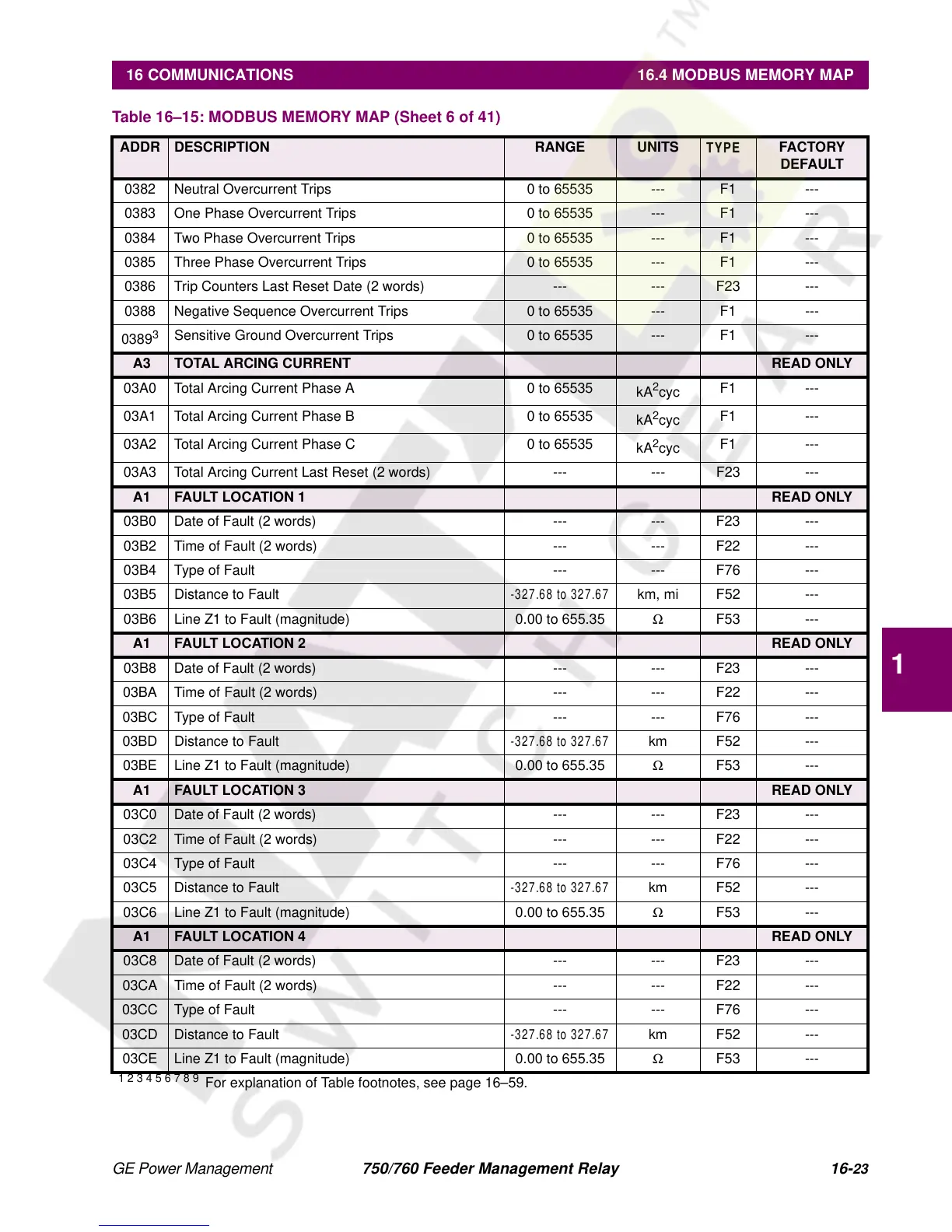

Table 16–15: MODBUS MEMORY MAP (Sheet 6 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
