750/760 Feeder Management Relay GE Power Management
16.4 MODBUS MEMORY MAP 16 COMMUNICATIONS
16
A1 FAULT LOCATION 5 READ ONLY
03D0 Date of Fault (2 words) --- --- F23 ---
03D2 Time of Fault (2 words) --- --- F22 ---
03D4 Type of Fault --- --- F76 ---
03D5 Distance to Fault
-327.68 to 327.67
km F52 ---
03D6 Line Z1 to Fault (magnitude) 0.00 to 655.35 Ω F53 ---
A1 FAULT LOCATION 6 READ ONLY
03D8 Date of Fault (2 words) --- --- F23 ---
03DA Time of Fault (2 words) --- --- F22 ---
03DC Type of Fault --- --- F76 ---
03DD Distance to Fault
-327.68 to 327.67
km F52 ---
03DE Line Z1 to Fault (magnitude) 0.00 to 655.35 Ω F53 ---
A1 FAULT LOCATION 7 READ ONLY
03E0 Date of Fault (2 words) --- --- F23 ---
03E2 Time of Fault (2 words) --- --- F22 ---
03E4 Type of Fault --- --- F76 ---
03E5 Distance to Fault
-327.68 to 327.67
km F52 ---
03E6 Line Z1 to Fault (magnitude) 0.00 to 655.35 Ω F53 ---
A1 FAULT LOCATION 8 READ ONLY
03E8 Date of Fault (2 words) --- --- F23 ---
03EA Time of Fault (2 words) --- --- F22 ---
03EC Type of Fault --- --- F76 ---
03ED Distance to Fault
-327.68 to 327.67
km F52 ---
03EE Line Z1 to Fault (magnitude) 0.00 to 655.35 Ω F53 ---
A1 FAULT LOCATION 9 READ ONLY
03F0 Date of Fault (2 words) --- --- F23 ---
03F2 Time of Fault (2 words) --- --- F22 ---
03F4 Type of Fault --- --- F76 ---
03F5 Distance to Fault
-327.68 to 327.67
km F52 ---
03F6 Line Z1 to Fault (magnitude) 0.00 to 655.35 Ω F53 ---
A1 FAULT LOCATION 10 READ ONLY
03F8 Date of Fault (2 words) --- --- F23 ---
03FA Time of Fault (2 words) --- --- F22 ---
03FC Type of Fault --- --- F76 ---
03FD Distance to Fault
-327.68 to 327.67
km F52 ---
03FE Line Z1 to Fault (magnitude) 0.00 to 655.35 Ω F53 ---

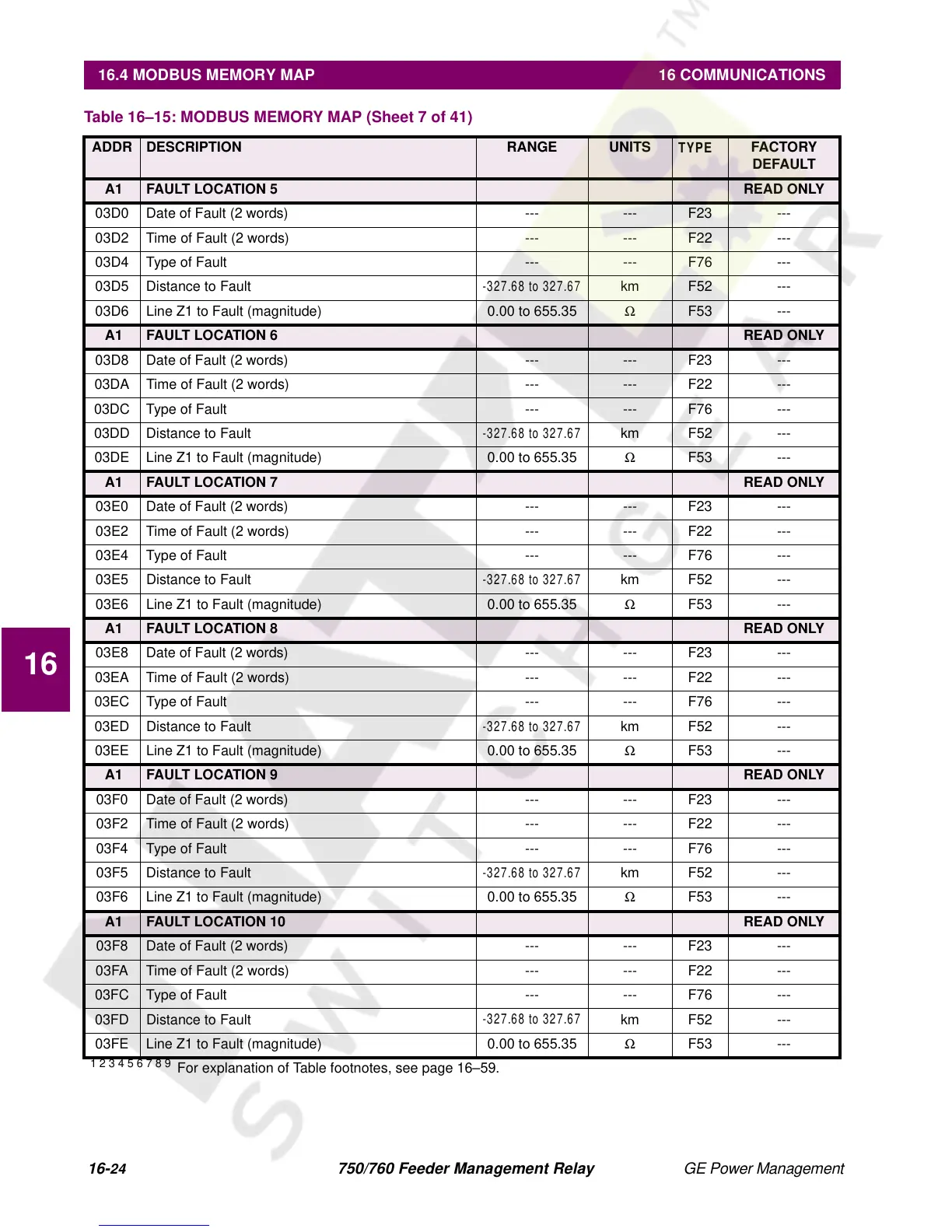

Table 16–15: MODBUS MEMORY MAP (Sheet 7 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
