750/760 Feeder Management Relay GE Power Management
16.4 MODBUS MEMORY MAP 16 COMMUNICATIONS
16
0606
2
Neutral Time Overcurrent 1 --- --- F49 ---
0607
2
Neutral Time Overcurrent 2 --- --- F49 ---
0608
2
Neutral Instantaneous Overcurrent 1 --- --- F49 ---
0609
2
Neutral Instantaneous Overcurrent 2 --- --- F49 ---
060A
2
Phase Directional is Reverse --- --- F49 ---
060B
2
Neutral Directional is Reverse --- --- F49 ---
060C Manual Close Blocking --- --- F49 ---
060D Cold Load Pickup Blocking --- --- F49 ---
060E Bus Undervoltage 1 --- --- F49 ---
060F Bus Undervoltage 2 --- --- F49 ---
0610 Line Undervoltage 3 --- --- F49 ---
0611 Line Undervoltage 4 --- --- F49
0612 Overvoltage 1 --- --- F49 ---
0613 Overvoltage 2 --- --- F49 ---
0614 Underfrequency 1 --- --- F49 ---
0615 Underfrequency 2 --- --- F49 ---
0616 Phase Current Level --- --- F49 ---
0617 Neutral Current Level --- --- F49 ---
0618 Power Factor 1 --- --- F49 ---
0619 Power Factor 2 --- --- F49 ---
061A Synchrocheck Block (Not In Sync) --- --- F49 ---
061B Current Demand --- --- F49 ---
061C Real Power Demand --- --- F49 ---
061D Reactive Power Demand --- --- F49 ---
061E Apparent Power Demand --- --- F49 ---
061F Analog Input Threshold 1 --- --- F49 ---
0620 Analog Input Threshold 2 --- --- F49 ---
0621 Analog Input Rate of Change 1 --- --- F49 ---
0622 Analog Input Rate of Change 2 --- --- F49 ---
0623 Overfrequency --- --- F49 ---
0624 Trip Counter --- --- F49 ---
0625 Arcing Current --- --- F49 ---
0626 VT Failure --- --- F49 ---
0627 Breaker Failure --- --- F49 ---
0628 Breaker Operation Failure --- --- F49 ---
0629 Trip Coil Monitor --- --- F49 ---

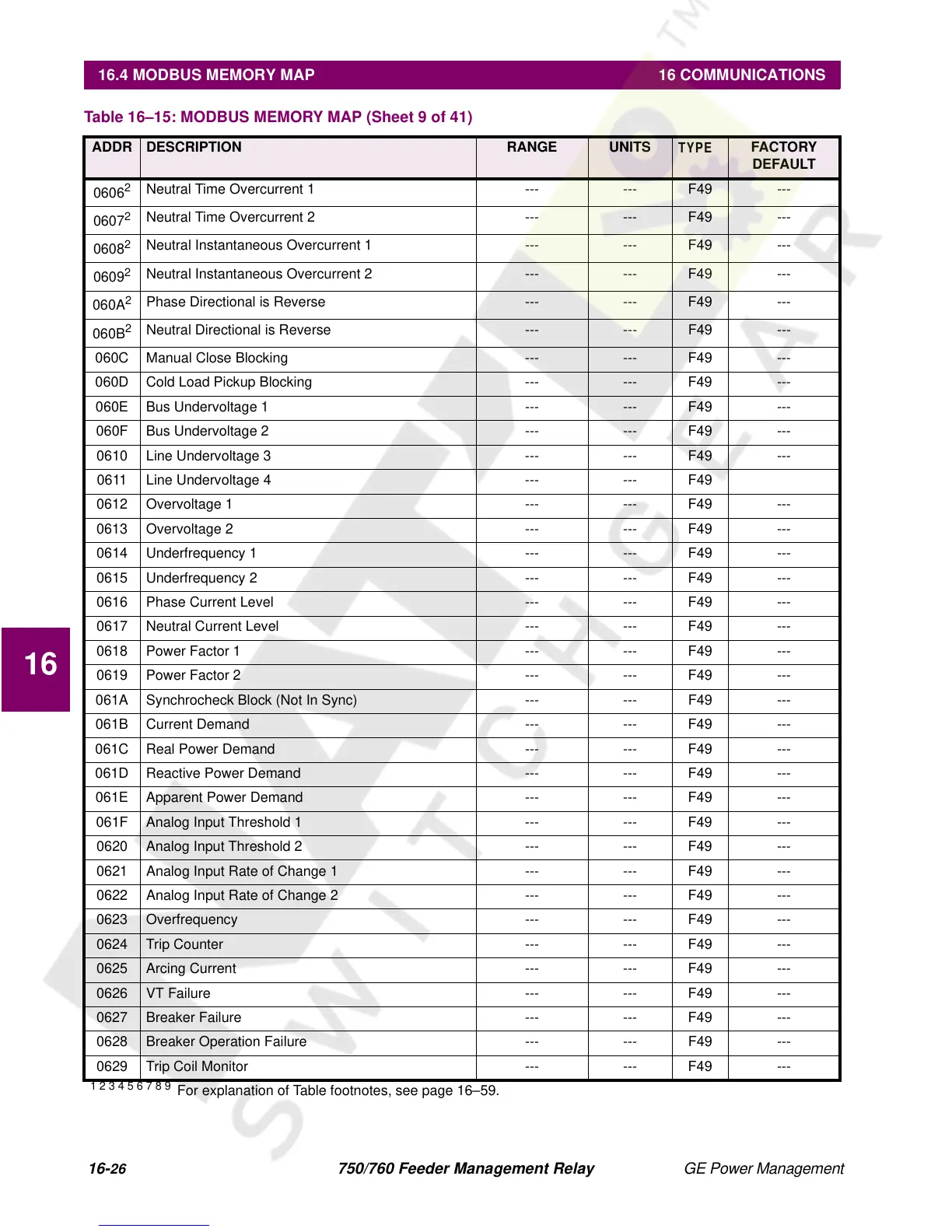

Table 16–15: MODBUS MEMORY MAP (Sheet 9 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
