GE 750 - Page 335

GE Power Management 750/760 Feeder Management Relay 16-
27
16 COMMUNICATIONS 16.4 MODBUS MEMORY MAP
16
062A Close Coil Monitor --- --- F49 ---
062B User Input A --- --- F49 ---
062C User Input B --- --- F49 ---
062D User Input C --- --- F49 ---
062E User Input D --- --- F49 ---
062F User Input E --- --- F49 ---
0630 User Input F --- --- F49 ---
0631 User Input G --- --- F49 ---
0632 User Input H --- --- F49 ---
0633 Negative Sequence Instantaneous O/C --- --- F49 ---
0634 Negative Sequence Time O/C --- --- F49 ---
0635 Negative Sequence Overvoltage --- --- F49 ---
0636 Undervoltage Restoration --- --- F49 ---
0637 Underfrequency Restoration --- --- F49 ---
0638
1
Phase Time Overcurrent 2 --- --- F49 ---
0639
1
Frequency Decay --- --- F49 ---
063A
3
Negative Sequence Directional is Reverse --- --- F49 ---
063B
3
Sensitive Ground Instantaneous O/C --- --- F49 ---
063C
3
Sensitive Ground Time O/C --- --- F49 ---
063D
3
Sensitive Ground Directional is Reverse --- --- F49 ---
063E
5
Reserved for MOD 008 --- --- F49 ---
063F
5
Neutral Displacement --- --- F49 ---
0640
5
Pulse Output Positive Watthours --- --- F49 ---
0641
5
Pulse Output Negative Watthours --- --- F49 ---
0642
5
Pulse Output Positive Varhours --- --- F49 ---
0643
5
Pulse Output Negative Varhours --- --- F49 ---
0644
6
Ground Directional is Reverse --- --- F49 ---
0645
7
Reserved for MOD 010 --- --- F49 ---
0646
8
User Input I --- --- F49 ---
0647
8
User Input J --- --- F49 ---
0648
8
User Input K --- --- F49 ---
0649
8
User Input L --- --- F49 ---
064A
8
User Input M --- --- F49 ---
064B
8
User Input N --- --- F49 ---

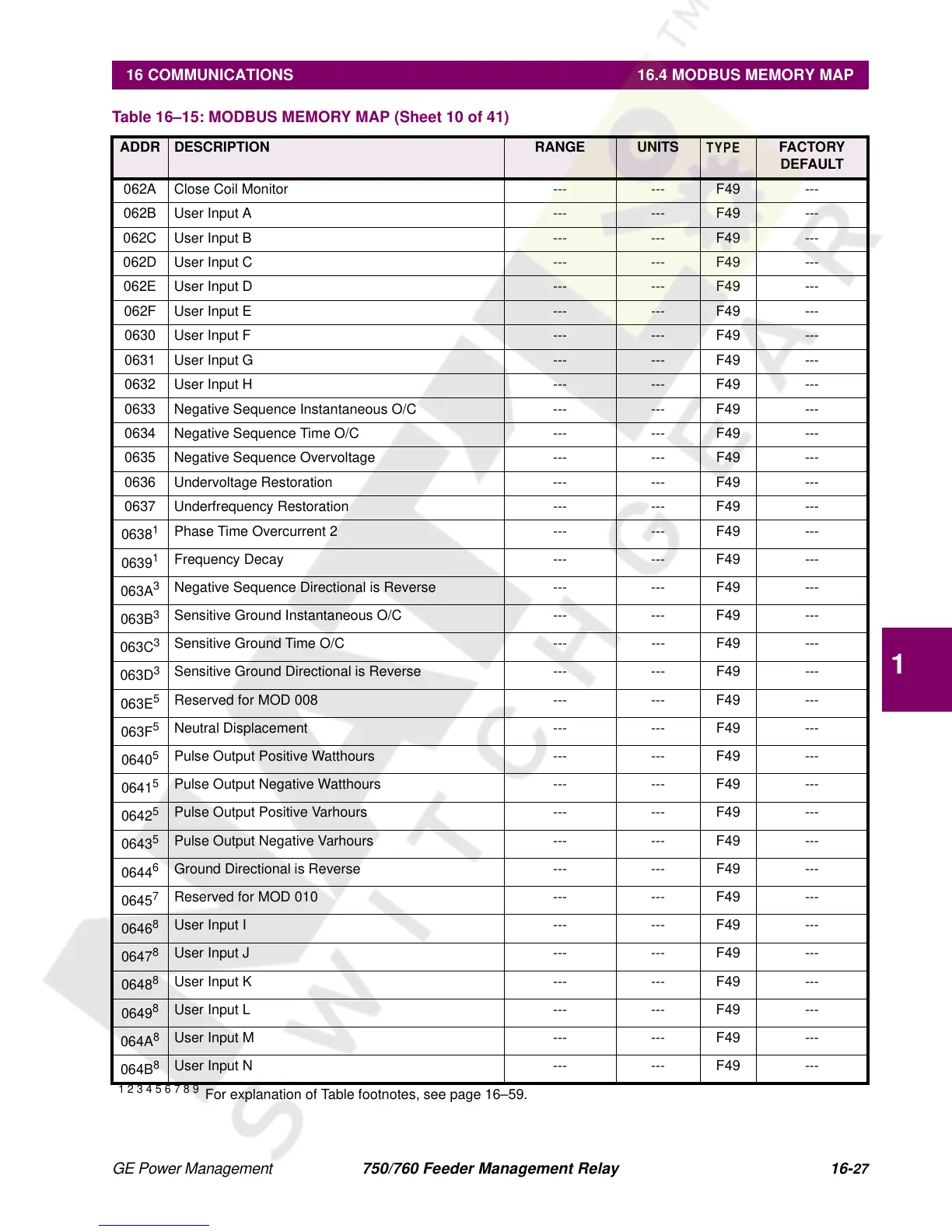

Table 16–15: MODBUS MEMORY MAP (Sheet 10 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
