GE 750 - Page 336

16-
28
750/760 Feeder Management Relay GE Power Management
16.4 MODBUS MEMORY MAP 16 COMMUNICATIONS
16
064C
8
User Input O --- --- F49 ---
064D
8
User Input P --- --- F49 ---
064E
8
User Input Q --- --- F49 ---
064F
8
User Input R --- --- F49 ---
0650
8
User Input S --- --- F49 ---
0651
8
User Input T --- --- F49 ---
0652
8
Autoreclose Rate Supervision --- --- F49 ---
0653
8
Restricted Earth Fault --- --- F49 ---
S1 750/760 SETUP READ/WRITE
1000 Reserved
1001 Flash Message Time 0.5 to 10.0 s F2 4.0 s
1002 Default Message Timeout 10 to 900 s F1 300 s
1003 Default Message Intensity (25, 50, 75, or100) 25 to 100 % F1 25%
1004
1
Display Filter Constant 0 to 255 --- F1 0
1005 Reserved
1006 Set Date (2 words) --- --- F23 01/01/1993
1008 Set Time (2 words) --- --- F22 00:00:00.000
100A 760 Operation --- --- F29 Not Ready
100B
2
IRIG-B Signal Type --- --- F43 None
100C Encrypted Passcode (4 words) --- --- F33 "AIKFBAIK"
S1 EVENT RECORDER SETUP READ/WRITE
1010 Event Recorder Function --- --- F30 Enabled
1011 Recording of Trip Events --- --- F30 Enabled
1012 Recording of Alarm Events --- --- F30 Enabled
1013 Recording of Control Events --- --- F30 Disabled
1014 Recording of Logic Input Events --- --- F30 Enabled
1015 Recording of Pickup Events --- --- F30 Enabled
1016 Recording of Dropout Events --- --- F30 Enabled
1017
8
Recording of Set Time/Date Events --- --- F30 Enabled
S1 TRACE MEMORY SETUP READ/WRITE
1018 Buffer Organization --- --- F81 16 x 256
1019 Trigger Position 0 to 100 % F1 25%
101A Trigger Source --- --- F82 Pickup & Trip
S1 DEFAULT MESSAGES READ/WRITE
1020 Number Of Messages Selected (read only) 0 to 20 --- F1 3

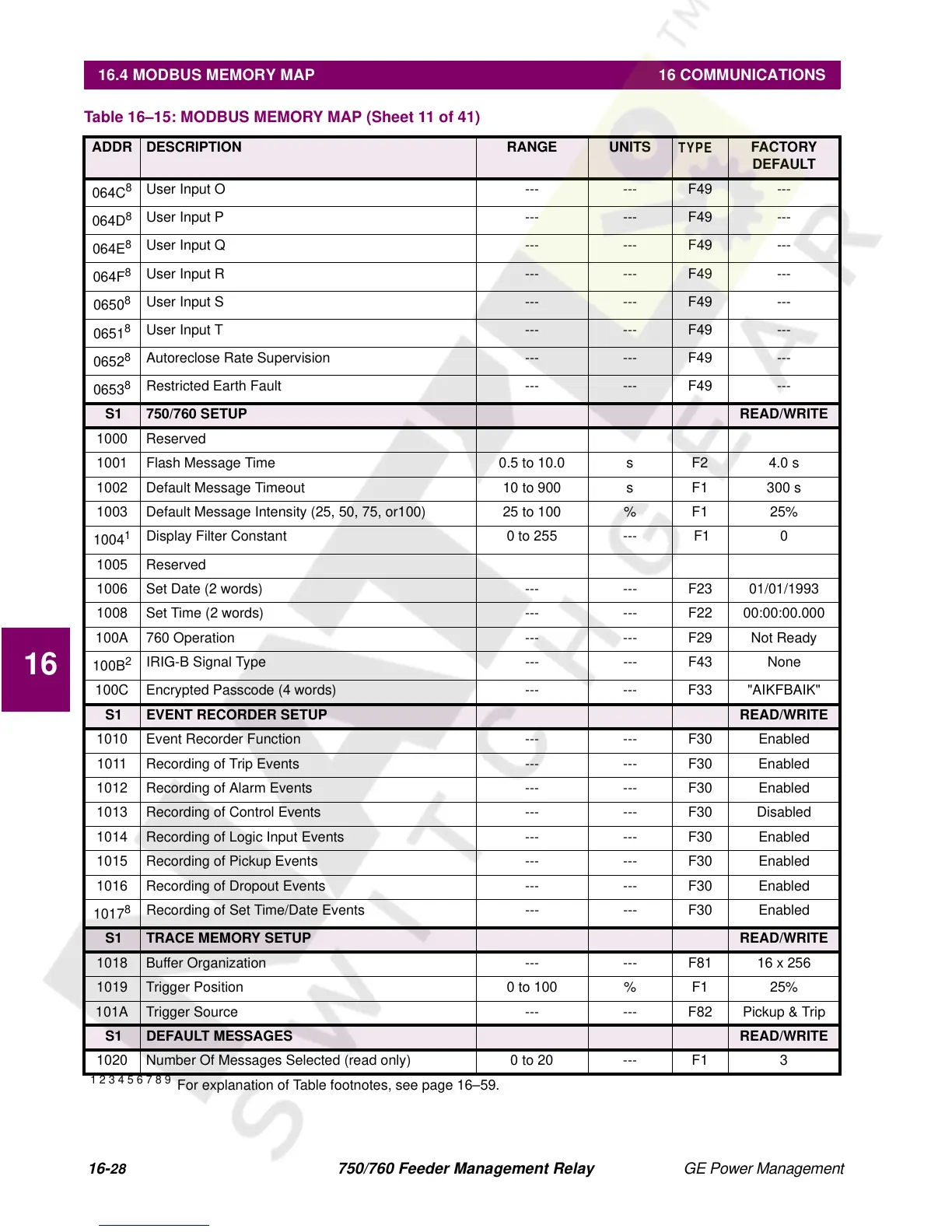

Table 16–15: MODBUS MEMORY MAP (Sheet 11 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
