16 COMMUNICATIONS 16.4 MODBUS MEMORY MAP
16
1021 Default Message #1 --- --- F32 ---
1022 Default Message #2 --- --- F32 ---
1023 Default Message #3 --- --- F32 ---
::
103E Default Message #30 --- --- F32 ---
S1 USER TEXT MESSAGES READ/WRITE
1040 User Text Message 1 (20 words) --- --- F33 "Text 1"
1054 User Text Message 2 (20 words) --- --- F33 "Text 2"
1068 User Text Message 3 (20 words) --- --- F33 "Text 3"
107C User Text Message 4 (20 words) --- --- F33 "Text 4"
1090 User Text Message 5 (20 words) --- --- F33 "Text 5"
S1 OVERRIDE MESSAGE READ/WRITE
10B0 Override Message Display Time 0 to 9000 s F1 0 s
10B1 Override Message (20 words) --- --- F33 "This is a test"
S1 COMMUNICATIONS READ/WRITE
10D0 Slave Address 1 to 254 --- F1 254
10D1 COM1 Baud Rate --- --- F31 9600
10D2 COM1 Parity --- --- F27 None
10D3 COM1 Communication Hardware --- --- F17 RS485
10D4 Front Panel RS232 Baud Rate --- --- F31 9600
10D5 Front Panel RS232 Parity --- --- F27 None
10D6 Reserved
10D7 Reserved
10D8 COM2 Baud Rate --- --- F31 9600
10D9 COM2 Parity --- --- F27 None
10DA DNP Port --- --- F62 None
10DB DNP Point Mapping --- --- F30 Disabled
S1 DATA LOGGER READ/WRITE
10E0 Sample Rate --- --- F74 1 cycle
10E1 Continuous Mode --- --- F30 Disabled
10E2 Buffer Organization --- --- F81 16 x 256
10E3 Trigger Position 0 to 100 % F1 25%
10E4 Trigger Source --- --- F82 Pickup & Trip
10E5 Channel 1 Source --- --- F77 I
a
10E6 Channel 2 Source --- --- F77 I
b
10E7 Channel 3 Source --- --- F77 I
c
10E8 Channel 4 Source --- --- F77 I
g

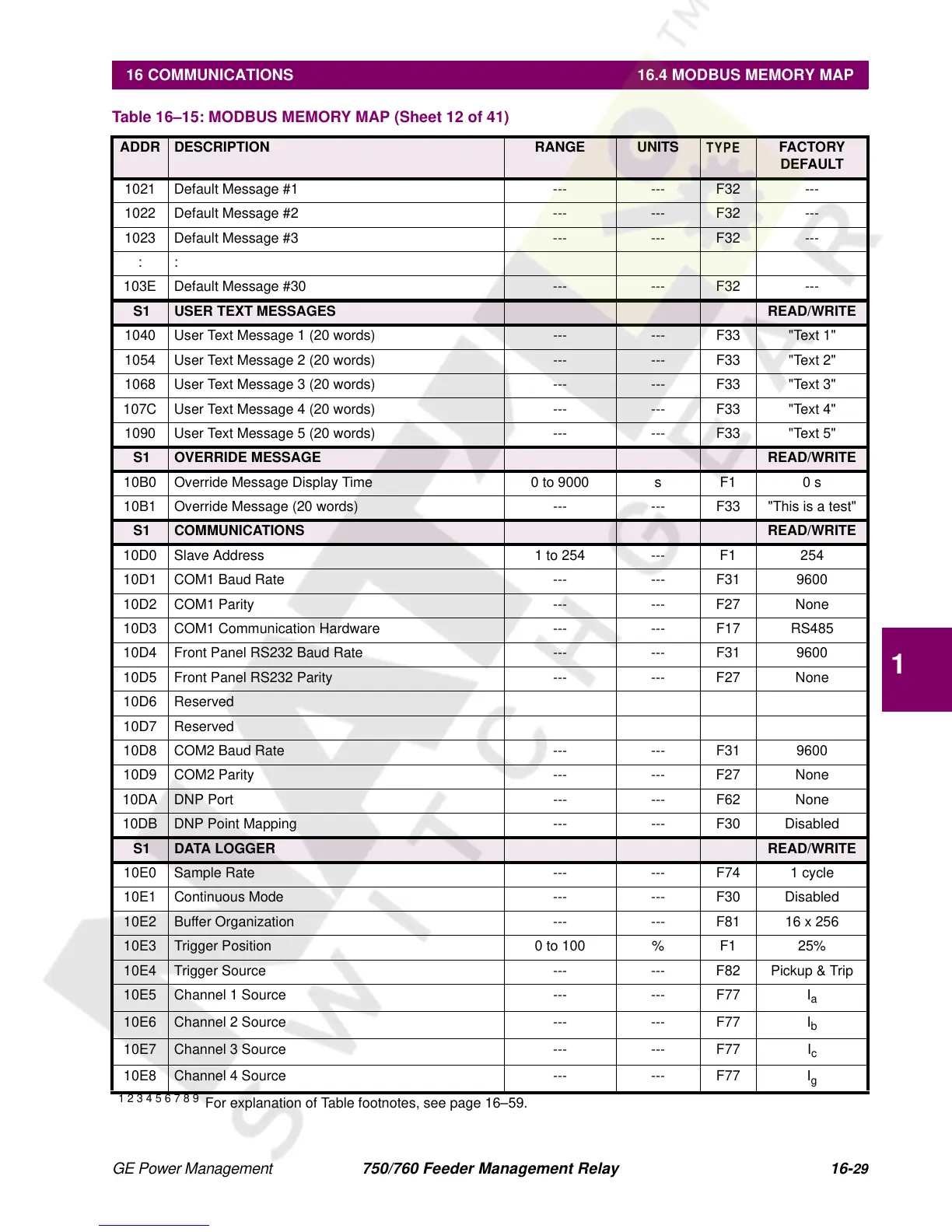

Table 16–15: MODBUS MEMORY MAP (Sheet 12 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
