GE Power Management 750/760 Feeder Management Relay 16-
31
16 COMMUNICATIONS 16.4 MODBUS MEMORY MAP
16
114E
1
Logic Input 15 Asserted Logic --- --- F64 Disabled
114F
1
Logic Input 16 Asserted Logic --- --- F64 Disabled
:: : : : :
1153
1
Logic Input 20 Asserted Logic --- --- F64 Disabled
S3 BREAKER FUNCTIONS READ/WRITE
1160 52a Contact --- --- F65 Disabled
1161 52b Contact --- --- F65 Disabled
1162 Breaker Connected --- --- F65 Disabled
S3 CONTROL FUNCTIONS READ/WRITE
1170 Local Mode --- --- F65 Disabled
1171 Remote Reset --- --- F65 Disabled
1172 Remote Open --- --- F65 Disabled
1173 Remote Close --- --- F65 Disabled
1174 Cold Load Pickup --- --- F65 Disabled
1175 Setpoint Group 2 --- --- F65 Disabled
1176 Setpoint Group 3 --- --- F65 Disabled
1177 Setpoint Group 4 --- --- F65 Disabled
S3 USER INPUT A READ/WRITE
1180 User Input A Name (9 registers) --- --- F33 User Input A
1189 User Input A Source --- --- F65 Disabled
118A User Input A Function --- --- F37 Disabled
118B User Input A Relays --- --- F57 None
118C User Input A Delay 0.00 to 600.00 s F3 0.00 s
S3 USER INPUT B READ/WRITE
1190 User Input B Name (9 registers) --- --- F33 User Input B
1199 User Input B Source --- --- F65 Disabled
119A User Input B Function --- --- F37 Disabled
119B User Input B Relays --- --- F57 None
119C User Input B Delay 0.00 to 600.00 s F3 0.00 s
S3 USER INPUT C READ/WRITE
11A0 User Input C Name (9 registers) --- --- F33 User Input C
11A9 User Input C Source --- --- F65 Disabled
11AA User Input C Function --- --- F37 Disabled
11AB User Input C Relays --- --- F57 None
11AC User Input C Delay 0.00 to 600.00 s F3 0.00 s
S3 USER INPUT D READ/WRITE
11B0 User Input D Name (9 registers) --- --- F33 User Input D

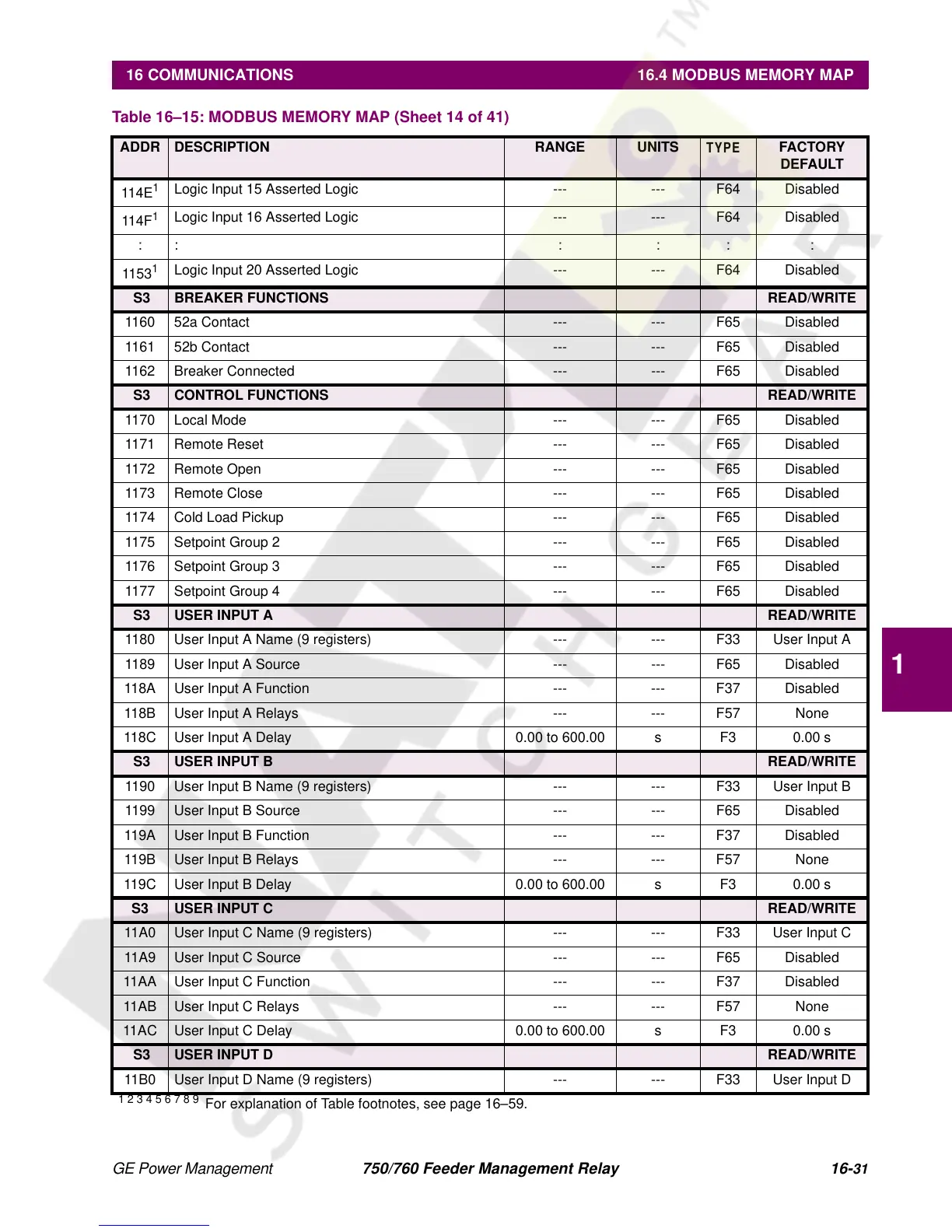

Table 16–15: MODBUS MEMORY MAP (Sheet 14 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
