750/760 Feeder Management Relay GE Power Management
16.4 MODBUS MEMORY MAP 16 COMMUNICATIONS
16
11B9 User Input D Source --- --- F65 Disabled
11BA User Input D Function --- --- F37 Disabled
11BB User Input D Relays --- --- F57 None
11BC User Input D Delay 0.00 to 600.00 s F3 0.00 s
S3 USER INPUT E READ/WRITE
11C0 User Input E Name (9 registers) --- --- F33 User Input E
11C9 User Input E Source --- --- F65 Disabled
11CA User Input E Function --- --- F37 Disabled
11CB User Input E Relays --- --- F57 None
11CC User Input E Delay 0.00 to 600.00 s F3 0.00 s
S3 USER INPUT F READ/WRITE
11D0 User Input F Name (9 registers) --- --- F33 User Input F
11D9 User Input F Source --- --- F65 Disabled
11DA User Input F Function --- --- F37 Disabled
11DB User Input F Relays --- --- F57 None
11DC User Input F Delay 0.00 to 600.00 s F3 0.00 s
S3 USER INPUT G READ/WRITE
11E0 User Input G Name (9 registers) --- --- F33 User Input G
11E9 User Input G Source --- --- F65 Disabled
11EA User Input G Function --- --- F37 Disabled
11EB User Input G Relays --- --- F57 None
11EC User Input G Delay 0.00 to 600.00 s F3 0.00 s
S3 USER INPUT H READ/WRITE
11F0 User Input H Name (9 registers) --- --- F33 User Input H
11F9 User Input H Source --- --- F65 Disabled
11FA User Input H Function --- --- F37 Disabled
11FB User Input H Relays --- --- F57 None
11FC User Input H Delay 0.00 to 600.00 s F3 0.00 s
S3 BLOCKING FUNCTIONS READ/WRITE
1240 Block 1 TRIP Relay --- --- F65 Disabled
1241 Block 2 CLOSE Relay --- --- F65 Disabled
1242 Block Reset --- --- F65 Disabled
1243 Block Undervoltage 1 --- --- F65 Disabled
1244 Block Undervoltage 2 --- --- F65 Disabled
1245 Block Undervoltage 3 --- --- F65 Disabled
1246 Block Undervoltage 4 --- --- F65 Disabled
1247 Block Underfrequency 1 --- --- F65 Disabled

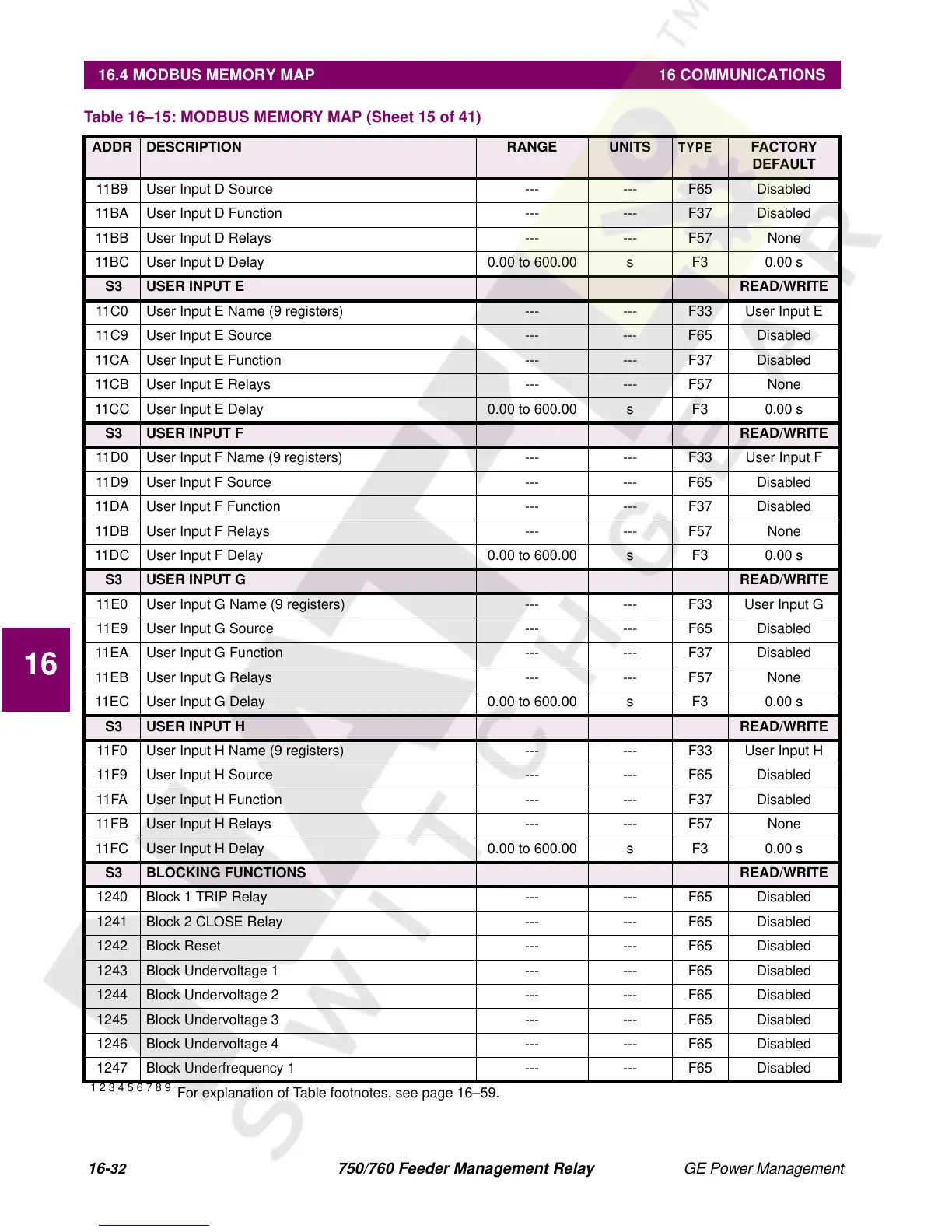

Table 16–15: MODBUS MEMORY MAP (Sheet 15 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
