750/760 Feeder Management Relay GE Power Management
16.4 MODBUS MEMORY MAP 16 COMMUNICATIONS
16
13BA
8
User Input M Function --- --- F37 Disabled
13BB
8
User Input M Relays --- --- F57 None
13BC
8
User Input M Delay 0.00 to 600.00 s F3 0.00 s
S3
8
USER INPUT N READ/WRITE
13C0
8
User Input N Name (9 registers) --- --- F33 User Input N
13C9
8
User Input N Source --- --- F65 Disabled
13CA
8
User Input N Function --- --- F37 Disabled
13CB
8
User Input N Relays --- --- F57 None
13CC
8
User Input N Delay 0.00 to 600.00 s F3 0.00 s
S3
8
USER INPUT O READ/WRITE
13D0
8
User Input O Name (9 registers) --- --- F33 User Input O
13D9
8
User Input O Source --- --- F65 Disabled
13DA
8
User Input O Function --- --- F37 Disabled
13DB
8
User Input O Relays --- --- F57 None
13DC
8
User Input O Delay 0.00 to 600.00 s F3 0.00 s
S3
8
USER INPUT P READ/WRITE
13E0
8
User Input P Name (9 registers) --- --- F33 User Input P
13E9
8
User Input P Source --- --- F65 Disabled
13EA
8
User Input P Function --- --- F37 Disabled
13EB
8
User Input P Relays --- --- F57 None
13EC
8
User Input P Delay 0.00 to 600.00 s F3 0.00 s
S3
8
USER INPUT Q READ/WRITE
13F0
8
User Input Q Name (9 registers) --- --- F33 User Input Q
13F9
8
User Input Q Source --- --- F65 Disabled
13FA
8
User Input Q Function --- --- F37 Disabled
13FB
8
User Input Q Relays --- --- F57 None
13FC
8
User Input Q Delay 0.00 to 600.00 s F3 0.00 s
S3
8
USER INPUT R READ/WRITE
1400
8
User Input R Name (9 registers) --- --- F33 User Input R
1409
8
User Input R Source --- --- F65 Disabled
140A
8
User Input R Function --- --- F37 Disabled
140B
8
User Input R Relays --- --- F57 None

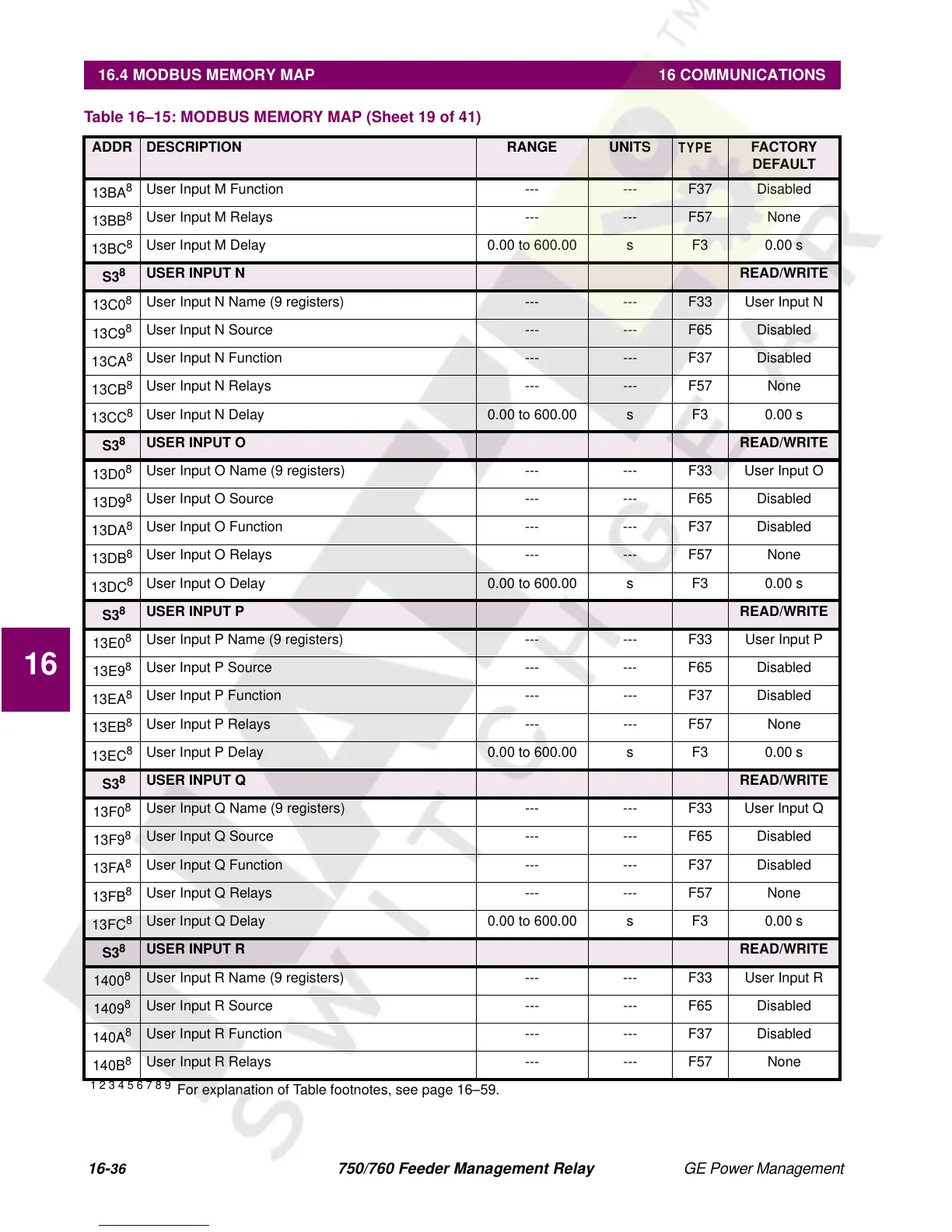

Table 16–15: MODBUS MEMORY MAP (Sheet 19 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
