16 COMMUNICATIONS 16.4 MODBUS MEMORY MAP
16
140C
8
User Input R Delay 0.00 to 600.00 s F3 0.00 s
S3
8
USER INPUT S READ/WRITE
1410
8
User Input S Name (9 registers) --- --- F33 User Input S
1419
8
User Input S Source --- --- F65 Disabled
141A
8
User Input S Function --- --- F37 Disabled
141B
8
User Input S Relays --- --- F57 None
141C
8
User Input S Delay 0.00 to 600.00 s F3 0.00 s
S3
8
USER INPUT T READ/WRITE
1420
8
User Input T Name (9 registers) --- --- F33 User Input T
1429
8
User Input T Source --- --- F65 Disabled
142A
8
User Input T Function --- --- F37 Disabled
142B
8
User Input T Relays --- --- F57 None
142C
8
User Input T Delay 0.00 to 600.00 s F3 0.00 s
S2 FLEXCURVE A TRIP TIMES READ/WRITE
1430 FlexCurve A Trip Time at 1.03 x PU 0 to 65535 ms F1 0 ms
1431 FlexCurve A Trip Time at 1.05 x PU 0 to 65535 ms F1 0 ms
1432 FlexCurve A Trip Time at 1.10 x PU 0 to 65535 ms F1 0 ms
1433 FlexCurve A Trip Time at 1.20 x PU 0 to 65535 ms F1 0 ms
1434 FlexCurve A Trip Time at 1.30 x PU 0 to 65535 ms F1 0 ms
1435 FlexCurve A Trip Time at 1.40 x PU 0 to 65535 ms F1 0 ms
1436 FlexCurve A Trip Time at 1.50 x PU 0 to 65535 ms F1 0 ms
1437 FlexCurve A Trip Time at 1.60 x PU 0 to 65535 ms F1 0 ms
1438 FlexCurve A Trip Time at 1.70 x PU 0 to 65535 ms F1 0 ms
1439 FlexCurve A Trip Time at 1.80 x PU 0 to 65535 ms F1 0 ms
143A FlexCurve A Trip Time at 1.90 x PU 0 to 65535 ms F1 0 ms
143B FlexCurve A Trip Time at 2.00 x PU 0 to 65535 ms F1 0 ms
143C FlexCurve A Trip Time at 2.10 x PU 0 to 65535 ms F1 0 ms
143D FlexCurve A Trip Time at 2.20 x PU 0 to 65535 ms F1 0 ms
143E FlexCurve A Trip Time at 2.30 x PU 0 to 65535 ms F1 0 ms
143F FlexCurve A Trip Time at 2.40 x PU 0 to 65535 ms F1 0 ms
1440 FlexCurve A Trip Time at 2.50 x PU 0 to 65535 ms F1 0 ms
1441 FlexCurve A Trip Time at 2.60 x PU 0 to 65535 ms F1 0 ms
1442 FlexCurve A Trip Time at 2.70 x PU 0 to 65535 ms F1 0 ms
1443 FlexCurve A Trip Time at 2.80 x PU 0 to 65535 ms F1 0 ms
1444 FlexCurve A Trip Time at 2.90 x PU 0 to 65535 ms F1 0 ms

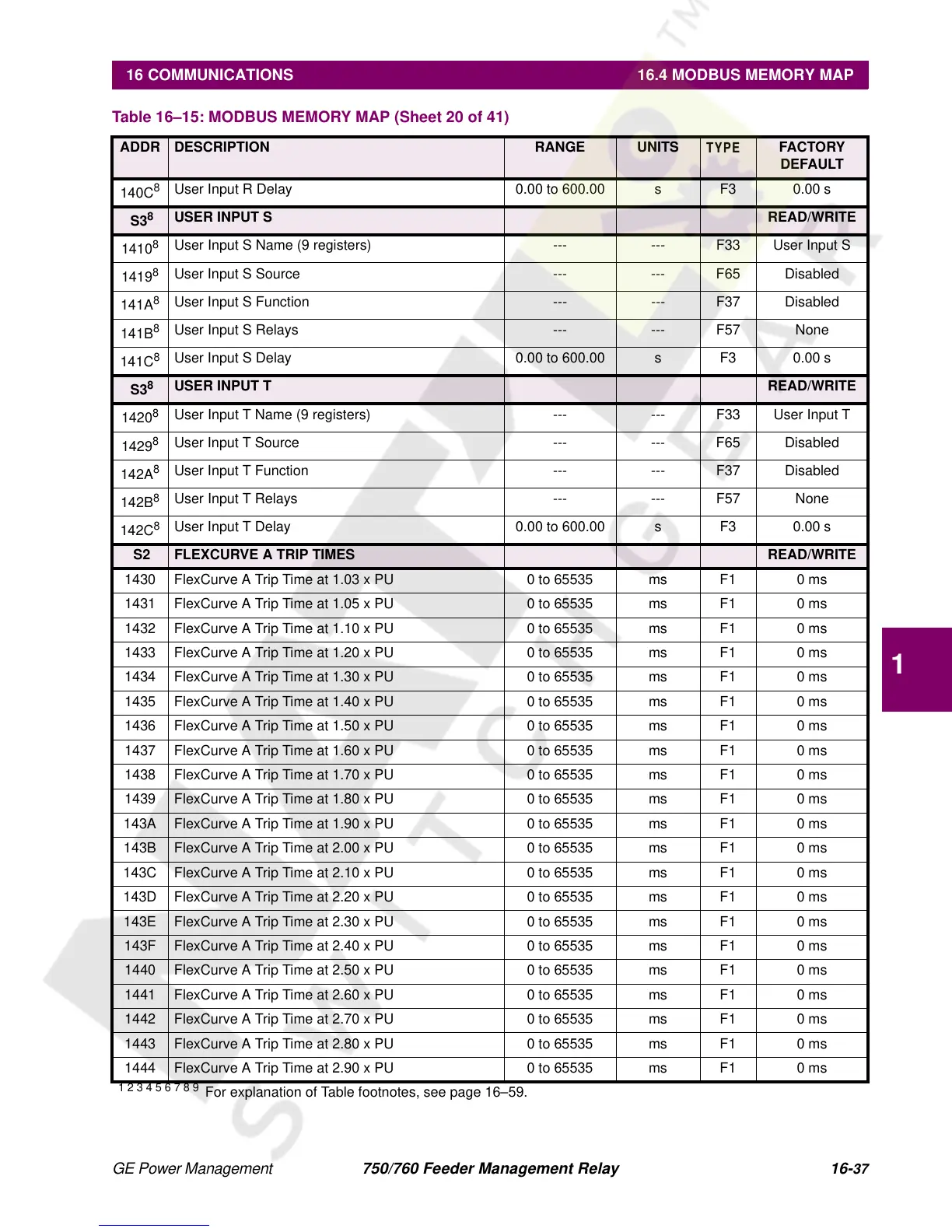

Table 16–15: MODBUS MEMORY MAP (Sheet 20 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
