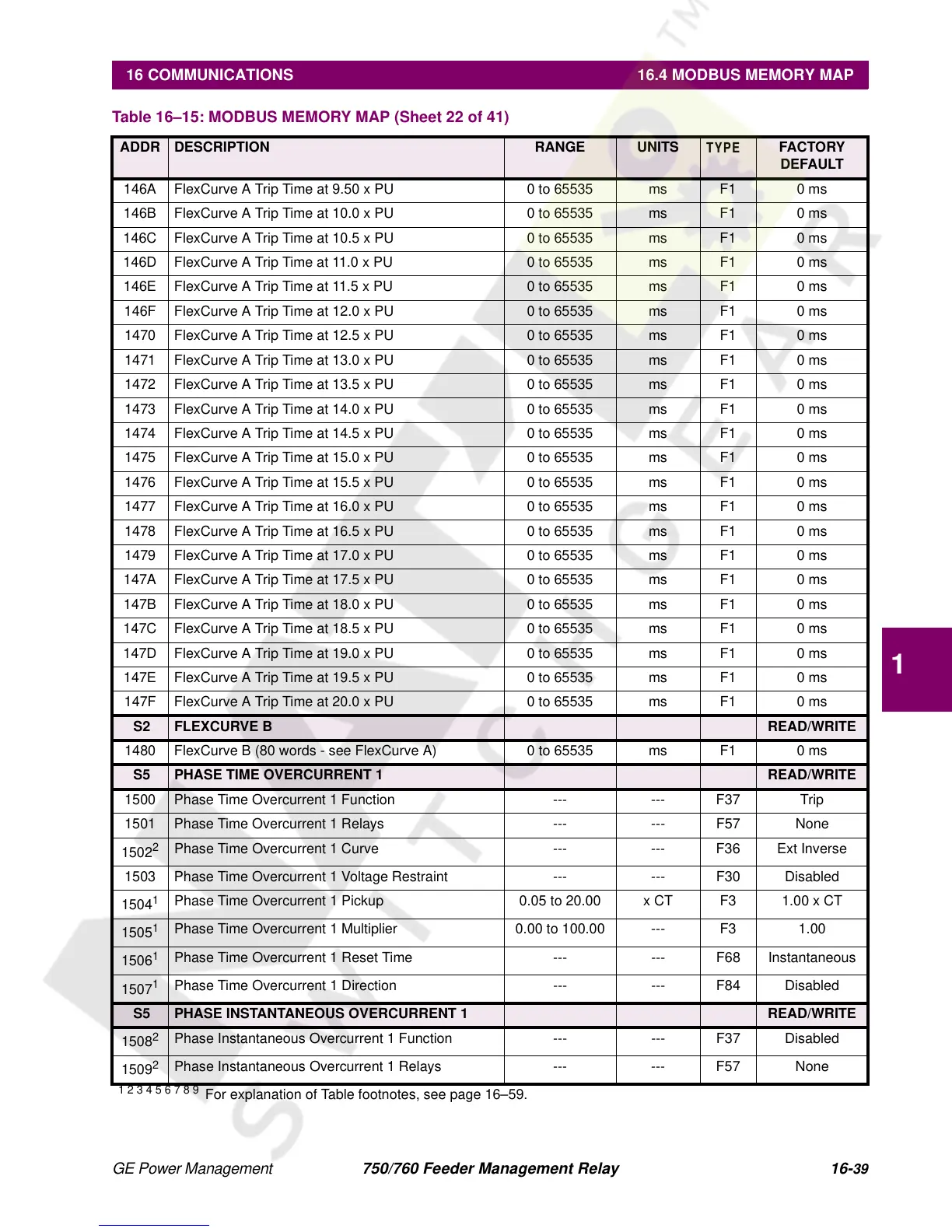

16 COMMUNICATIONS 16.4 MODBUS MEMORY MAP
16
146A FlexCurve A Trip Time at 9.50 x PU 0 to 65535 ms F1 0 ms
146B FlexCurve A Trip Time at 10.0 x PU 0 to 65535 ms F1 0 ms
146C FlexCurve A Trip Time at 10.5 x PU 0 to 65535 ms F1 0 ms
146D FlexCurve A Trip Time at 11.0 x PU 0 to 65535 ms F1 0 ms
146E FlexCurve A Trip Time at 11.5 x PU 0 to 65535 ms F1 0 ms
146F FlexCurve A Trip Time at 12.0 x PU 0 to 65535 ms F1 0 ms
1470 FlexCurve A Trip Time at 12.5 x PU 0 to 65535 ms F1 0 ms
1471 FlexCurve A Trip Time at 13.0 x PU 0 to 65535 ms F1 0 ms
1472 FlexCurve A Trip Time at 13.5 x PU 0 to 65535 ms F1 0 ms
1473 FlexCurve A Trip Time at 14.0 x PU 0 to 65535 ms F1 0 ms
1474 FlexCurve A Trip Time at 14.5 x PU 0 to 65535 ms F1 0 ms
1475 FlexCurve A Trip Time at 15.0 x PU 0 to 65535 ms F1 0 ms
1476 FlexCurve A Trip Time at 15.5 x PU 0 to 65535 ms F1 0 ms
1477 FlexCurve A Trip Time at 16.0 x PU 0 to 65535 ms F1 0 ms
1478 FlexCurve A Trip Time at 16.5 x PU 0 to 65535 ms F1 0 ms
1479 FlexCurve A Trip Time at 17.0 x PU 0 to 65535 ms F1 0 ms
147A FlexCurve A Trip Time at 17.5 x PU 0 to 65535 ms F1 0 ms
147B FlexCurve A Trip Time at 18.0 x PU 0 to 65535 ms F1 0 ms
147C FlexCurve A Trip Time at 18.5 x PU 0 to 65535 ms F1 0 ms
147D FlexCurve A Trip Time at 19.0 x PU 0 to 65535 ms F1 0 ms
147E FlexCurve A Trip Time at 19.5 x PU 0 to 65535 ms F1 0 ms
147F FlexCurve A Trip Time at 20.0 x PU 0 to 65535 ms F1 0 ms
S2 FLEXCURVE B READ/WRITE
1480 FlexCurve B (80 words - see FlexCurve A) 0 to 65535 ms F1 0 ms
S5 PHASE TIME OVERCURRENT 1 READ/WRITE
1500 Phase Time Overcurrent 1 Function --- --- F37 Trip
1501 Phase Time Overcurrent 1 Relays --- --- F57 None
1502
2
Phase Time Overcurrent 1 Curve --- --- F36 Ext Inverse
1503 Phase Time Overcurrent 1 Voltage Restraint --- --- F30 Disabled
1504
1
Phase Time Overcurrent 1 Pickup 0.05 to 20.00 x CT F3 1.00 x CT
1505
1
Phase Time Overcurrent 1 Multiplier 0.00 to 100.00 --- F3 1.00
1506
1
Phase Time Overcurrent 1 Reset Time --- --- F68 Instantaneous
1507
1
Phase Time Overcurrent 1 Direction --- --- F84 Disabled
S5 PHASE INSTANTANEOUS OVERCURRENT 1 READ/WRITE
1508
2
Phase Instantaneous Overcurrent 1 Function --- --- F37 Disabled
1509
2
Phase Instantaneous Overcurrent 1 Relays --- --- F57 None
Table 16–15: MODBUS MEMORY MAP (Sheet 22 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
