750/760 Feeder Management Relay GE Power Management
16.4 MODBUS MEMORY MAP 16 COMMUNICATIONS
16
150A
2
Phase Instantaneous Overcurrent 1 Pickup 0.05 to 20.00 x CT F3 1.00 x CT
150B
2
Phase Instantaneous Overcurrent 1 Delay 0.00 to 600.00 s F3 0.00 s
150C Phases Required for Operation --- --- F41 Any One
150D
1
Phase Instantaneous Overcurrent 1 Direction --- --- F84 Disabled
S5 PHASE INSTANTANEOUS OVERCURRENT 2 READ/WRITE
1510
2
Phase Instantaneous Overcurrent 2 Function --- --- F37 Disabled
1511
2
Phase Instantaneous Overcurrent 2 Relays --- --- F57 None
1512
2
Phase Instantaneous Overcurrent 2 Pickup 0.05 to 20.00 x CT F3 1.00 x CT
1513
2
Phase Instantaneous Overcurrent 2 Delay 0.00 to 600.00 s F3 0.00 s
1514 Phases Required for Operation --- --- F41 Any One
1515
1
Phase Instantaneous Overcurrent 2 Direction --- --- F84 Disabled
S5 PHASE DIRECTIONAL READ/WRITE
1520 Phase Directional Function --- --- F38 Disabled
1521 Phase Directional Maximum Torque Angle 0 to 359 ° Lead F1 30° Lead
1522
1
Minimum Polarizing Voltage 0.00 to 1.25 x VT F3 0.05 x VT
1523 Phase Directional Relays --- --- F57 None
1524
4
Block OC When Voltage Memory Expires --- --- F30 Disabled
S5 PHASE TIME OVERCURRENT 2 READ/WRITE
1530
1
Phase Time Overcurrent 2 Function --- --- F37 Disabled
1531
1
Phase Time Overcurrent 2 Relays --- --- F57 None
1532
1
Phase Time Overcurrent 2 Curve --- --- F36 Ext. Inverse
1533
1
Phase Time Overcurrent 2 Voltage Restraint --- --- F30 Disabled
1534
1
Phase Time Overcurrent 2 Pickup 0.05 to 20.00 x CT F3 1.00 x CT
1535
1
Phase Time Overcurrent 2 Multiplier 0.00 to 100.00 --- F3 1.00
1536
1
Phase Time Overcurrent 2 Reset Time --- --- F68 Instantaneous
1537
1
Phase Time Overcurrent 2 Direction --- --- F84 Disabled
S5 GROUND TIME OVERCURRENT READ/WRITE
1600 Ground Time Overcurrent Function --- --- F37 Disabled
1601 Ground Time Overcurrent Relays --- --- F57 None
1602 Ground Time Overcurrent Curve --- --- F36 Ext. Inverse
1603
1
Ground Time Overcurrent Pickup 0.05 to 20.00 x CT F3 1.00 x CT
1604
1
Ground Time Overcurrent Multiplier 0.00 to 100.00 --- F3 1.00
1605
1
Ground Time Overcurrent Reset Time --- --- F68 Instantaneous
1606
6
Ground Time Overcurrent Direction --- --- F84 Disabled

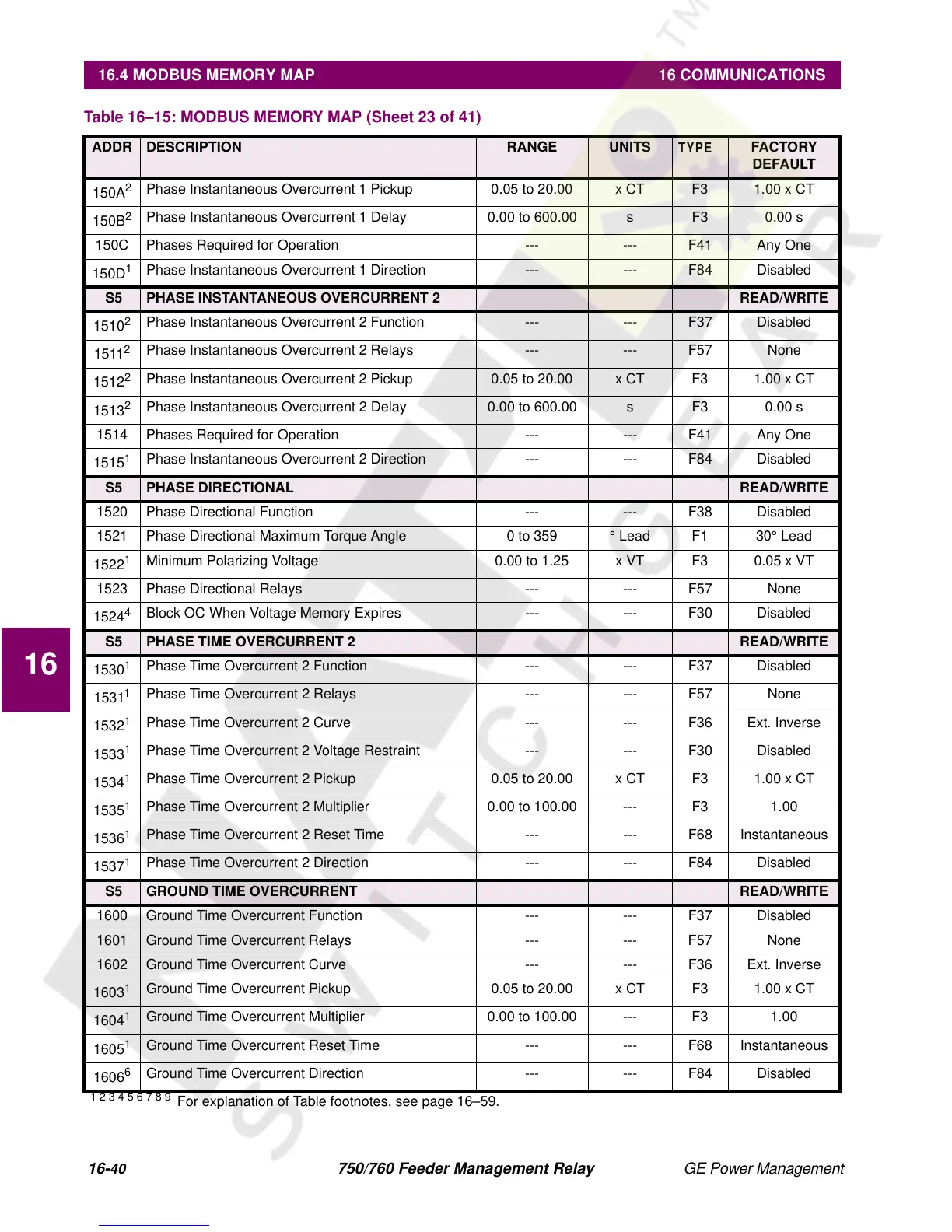

Table 16–15: MODBUS MEMORY MAP (Sheet 23 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
